R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) MAIN FRAME ASSEMBLY Parts Diagram

Yard Tractor

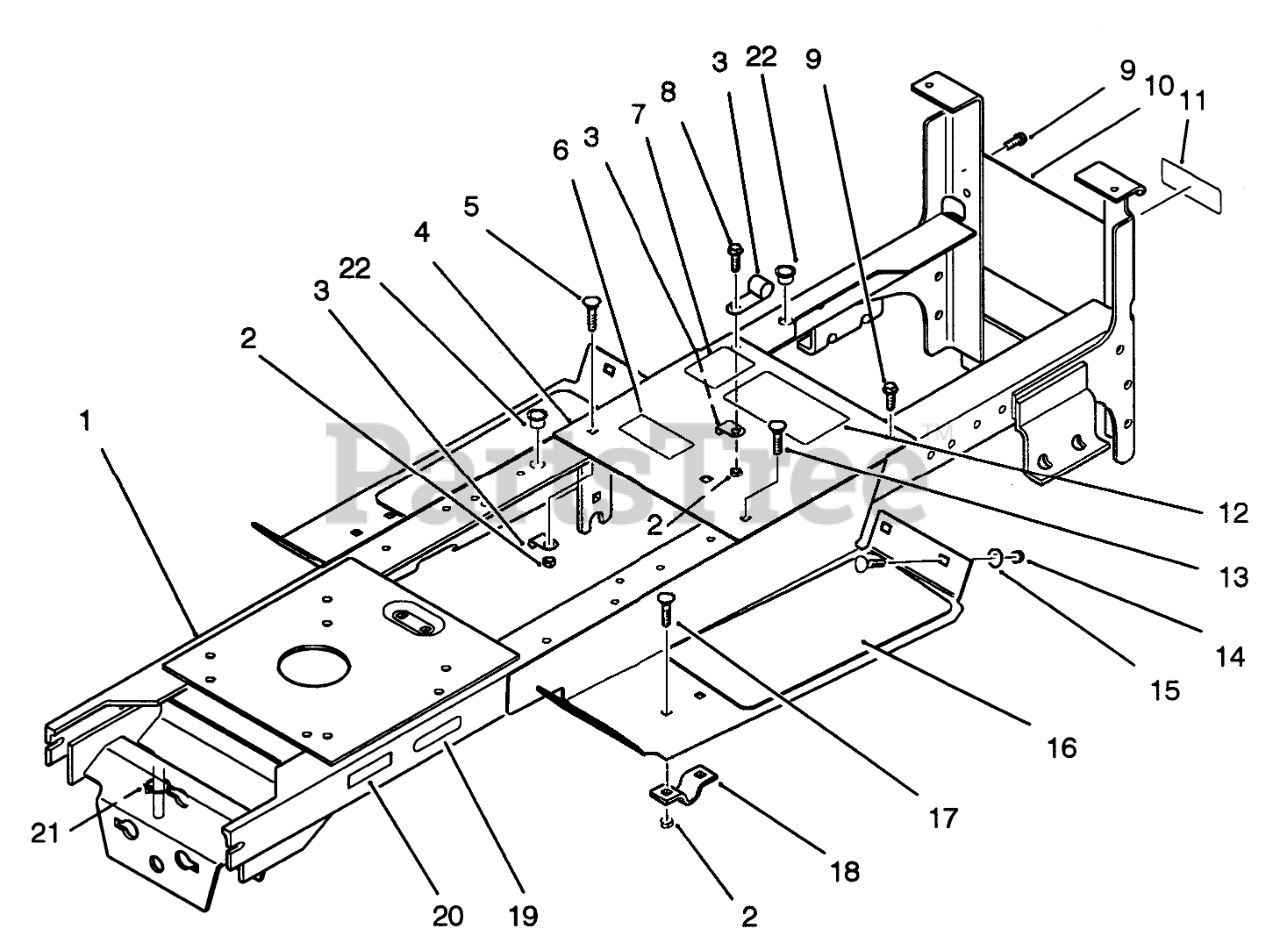

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 78-1143

Frame
(Superseded to 92-6348)

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

4

Toro 78-1130

Panel
(Superseded to 92-6347)

$

$

Not available

5

Toro 900215

Bolt-Carriage
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

6

Toro 79-0370

DECAL-DANGER

$

$

Not available

7

Toro 79-0120

DECAL-PARKING BRAKE

$

$

Not available

8

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

9

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

10

Toro 79-0681

PANEL-REAR R

$

$

Not available

11

Toro 116235

DECAL-DANGER

$

$

Not available

12

Toro 112670

DECAL-DANGER

$

$

Not available

13

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

15

Toro 3254-23

WASHER - FLAT YZ

$

$

Not available

16

Toro 110636

PAD FOOTREST

$

$

Not available

17

Toro 3220-23

NUT-HEX, JAM

$2.99

$

Usually ships in 3-6 days

0

18

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

19

Toro 79-7020

DECAL - BELT INSTR.
(Superseded to 93-7324)

$

$

Not available

20

Toro 115197

Decal-Attac-O-Matic
(Superseded to 94-6330)

$

$

Not available

21

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 79-4050

BUSHING

$

$

Not available
