R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) FUEL TANK AND STEERING BRACKET ASSEMBLY Parts Diagram

Yard Tractor

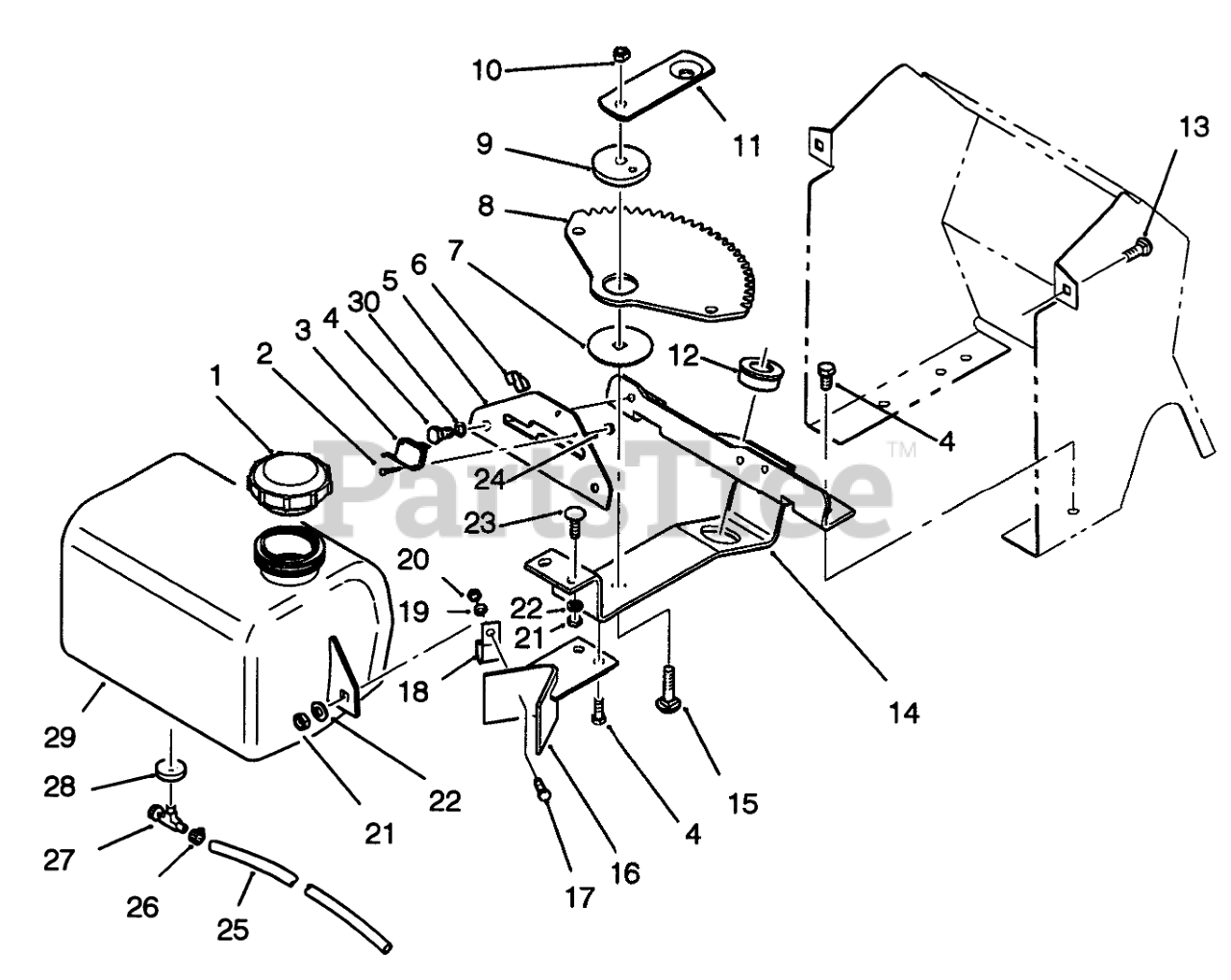

FUEL TANK AND STEERING BRACKET ASSEMBLY Parts Diagram

  • Title
1

Toro 111474

CAP GAS

$28.99

$

In Stock, only 2 left!

0

2

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

3

Toro 115230

SWITCH - CLUTCH

$34.99

$

Usually ships in 3-6 days

0

4

Toro 926496

HEX WASH HD SCREW
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 78-2566

PLATE-SHIFT R

$

$

Not available

6

Toro 519337

CLIP-CABLE

$

$

Not available

7

Toro 111419

WASHER-BEARING

$

$

Not available

8

Toro 78-2610

GEAR-SECTOR
(Superseded to 106-8262)

$78.99

$

In Stock, only 2 left!

0

9

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

10

$

$

Currently unavailable

11

Toro 78-9190

Plate
(Superseded to 78-9150-03)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 110391

BEARING-WHEEL

$7.99

$

In Stock, only 4 left!

0

13

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 78-1193

STEERING BRKT - W/A R

$

$

Not available

15

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

16

Toro 78-2491

Stop
(Superseded to 78-2491-03)

$46.99

$

Usually ships in 3-6 days

0

17

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

18

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

19

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 900215

Bolt-Carriage
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

24

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

25

Toro 79-7070

FUEL HOSE(1 FT.6554)

$

$

Not available

26

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

27

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

28

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

29

Toro 112153

ASSY FUEL TANK

$

$

Not available

Toro 112153

Assy.-Tank, Fuel (Incl. Ref. #27-29)

Note: Not illustrated

$

$

Not available
