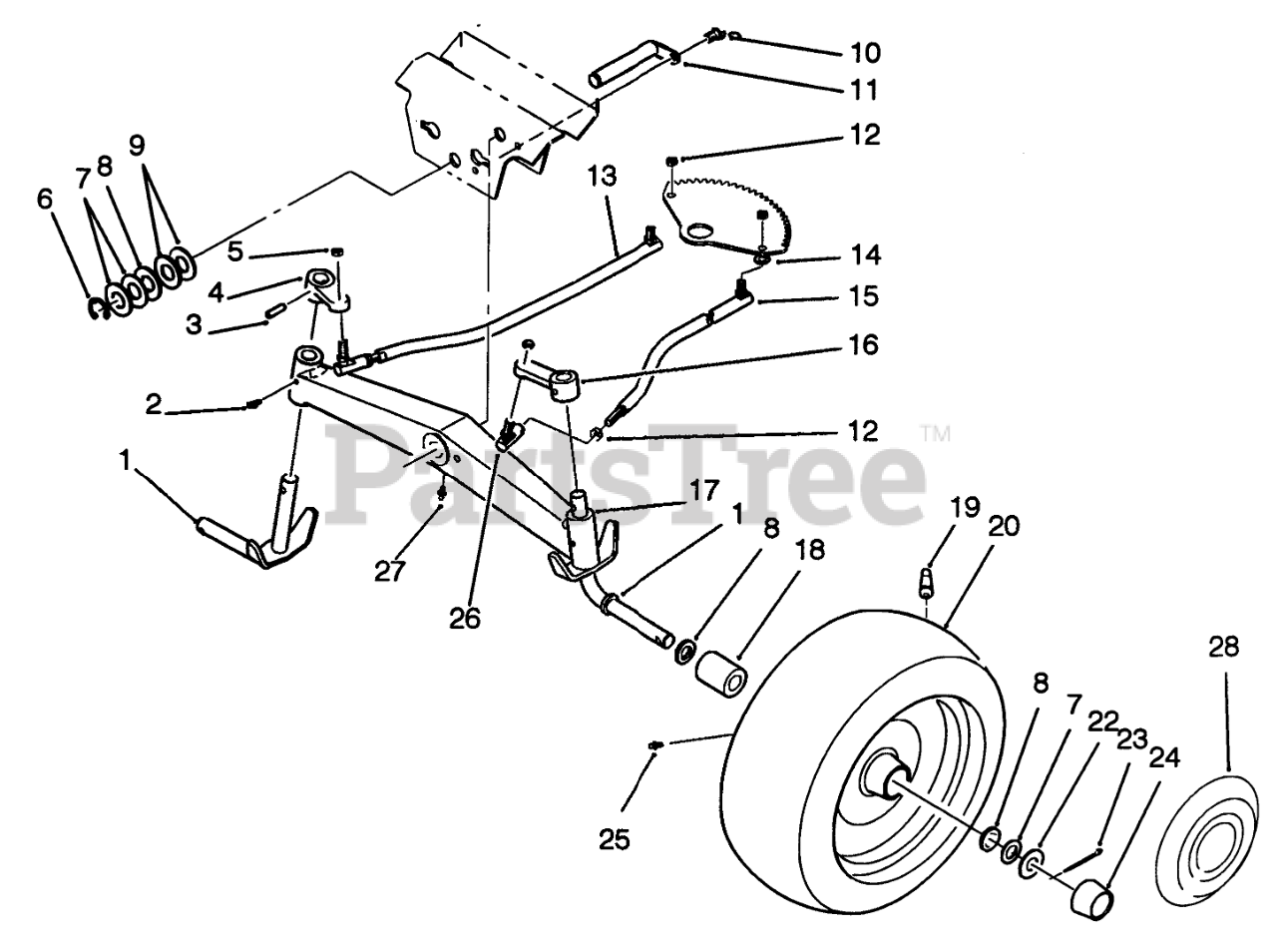

R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) FRONT AXLE ASSEMBLY Parts Diagram

Yard Tractor

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 78-2601

Spindle
(Superseded to 78-2601-03)

$93.99

$

In Stock, only 1 left!

0

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3

$5.99

$

In Stock, Qty 6

0

4

Toro 78-1940

Arm-Spindle, R.H.
(Superseded to 78-1940-03)

$107.99

$

Usually ships in 3-6 days

0

5

Toro 915085

Nut
(Superseded to 3220-3)

$0.99

$

In Stock, Qty 17

0

6

Toro 5618

E-RING

$0.99

$

In Stock, Qty 11

0

7

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 12

0

8

Toro 1278

WASHER

$2.99

$

In Stock, only 1 left!

0

9

Toro 920232

WASHER
(Superseded to 9202324)

$1.49

$

In Stock, only 3 left!

0

10

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

11

Toro 115484

WLDMT-AXLE PIN R

$

$

Not available

12

Toro 915002

NUT-6
(Superseded to 9150026)

$1.49

$

In Stock, Qty 20+

0

13

Toro 78-8450

Ball Joint
(Superseded to 92-6883)

$179.99

$

Usually ships in 3-6 days

0

14

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

15

Toro 78-8460

Steering Link Rod, L.H.
(Superseded to 92-6884)

$179.99

$

In Stock, only 4 left!

0

16

Toro 78-1950

Arm-Spindle, L.H.
(Superseded to 78-1950-03)

$107.99

$

Usually ships in 3-6 days

0

17

Toro 78-7960

Axle-Front
(Superseded to 78-7960-01)

$

$

Not available

18

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 4 left!

0

19

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

20

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

$

$

Not available

22

Toro 111952

WASHER WHEEL

$6.49

$

In Stock, Qty 5

0

23

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

24

Toro 111951

HUBCAP

$14.99

$

In Stock, only 2 left!

0

25

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

26

Toro 78-2900

ASM-Rod

$64.99

$

In Stock, only 2 left!

0

27

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

28

Toro 114427

8"-HUB CAP LOGO

$

$

Not available

Toro 78-8450

Link Assembly, Steering R.H. (Incl. Ref. #5, 13 & 26)
(Superseded to 92-6883)

Note: Not illustrated

$179.99

$

Usually ships in 3-6 days

0

Toro 78-8460

Link Assembly, Steering L.H. (Incl. Ref. #5, 15 & 26)
(Superseded to 92-6884)

Note: Not illustrated

$179.99

$

In Stock, only 4 left!

0

Toro 78-1660

Wheel-Assembly (Incl. Ref. #18, 19 & 25)
(Superseded to 93-9801)

Note: Not illustrated

$257.99

$

Usually ships in 3-6 days

0
