R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) ENGINE TORO POWER PLUS Parts Diagram

Yard Tractor

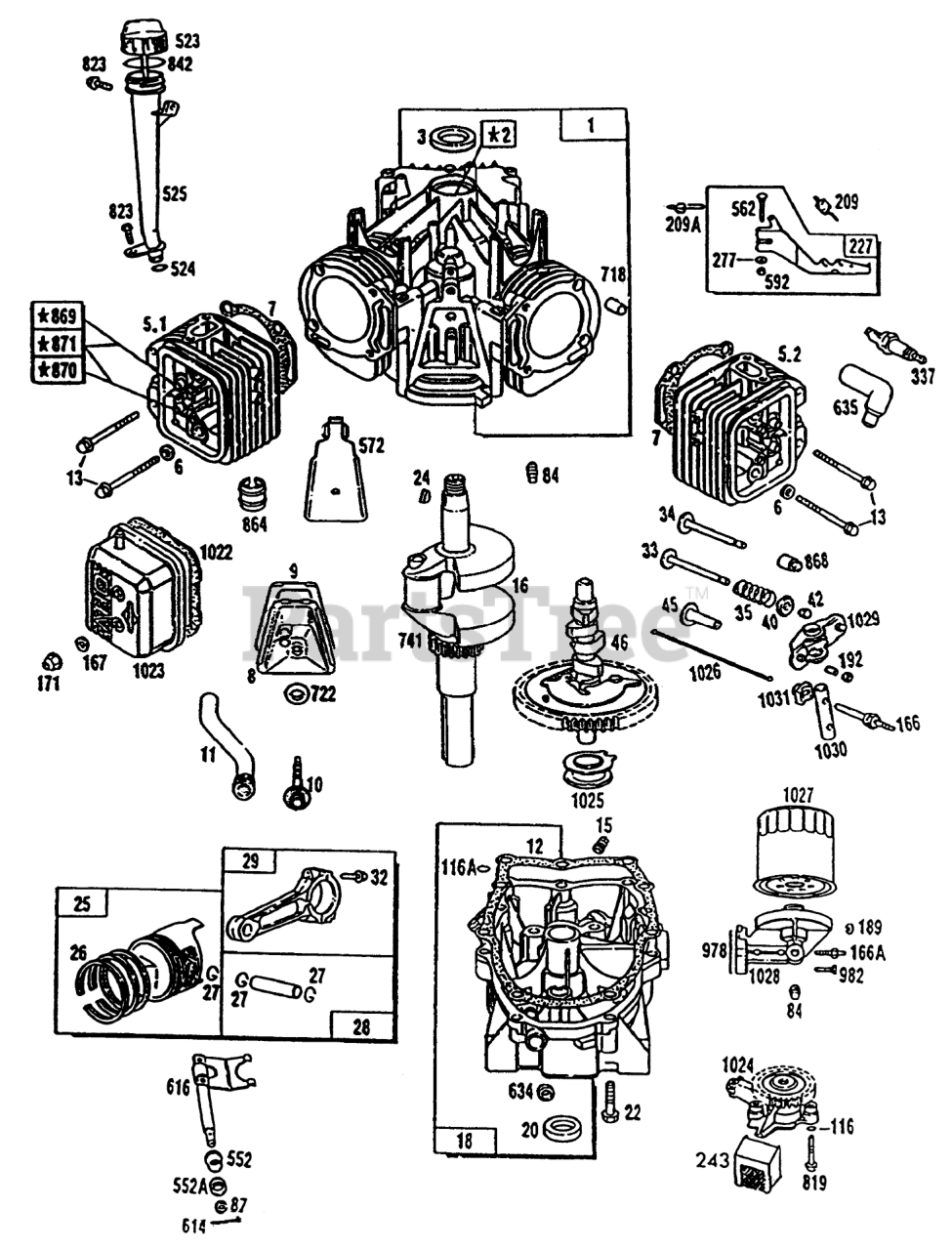

ENGINE TORO POWER PLUS Parts Diagram

  • Title

1

Toro 78-3410

Cylinder Assembly

$

$

Not available

2

Toro 92-0501

Bearing-Cylinder

$

$

Not available

3

Toro 78-3430

Oil Seal

$

$

Not available

5.1

Toro 92-0502

Head-#1 Cylinder

$

$

Not available

5.2

Toro 92-0503

Head-#2 Cylinder

$

$

Not available

6

Toro 78-3460

Washer

Note: Included in Overhaul Kit Part No. 92-0542

$

$

Not available

7

Toro 92-0504

Gasket-Cylinder Head

Note: Included In Gasket Set Part No. 92-0540

$

$

Not available

8

Toro 92-0505

Breather Assembly

$

$

Not available

9

Toro 78-3670

Nut

$

$

Not available

10

Toro 92-0506

Screw

$

$

Not available

11

Toro 78-3510

Tube

$

$

Not available

12

Toro 78-4230

Screen

$

$

Not available

13

Toro 78-3530

Screw

$

$

Not available

15

Toro 78-3540

BRIGGS 805048

$

$

Not available

16

Toro 78-3550

Crankshaft

$

$

Not available

18

Toro 78-3570

Cover

$

$

Not available

20

Toro 78-3580

Seal

$

$

Not available

22

Toro 78-3590

Screw

$

$

Not available

24

Toro 78-3610

Key

$

$

Not available

25

Toro 78-3620

Piston Ass-y (Std.)

$

$

Not available

Toro 92-0507

Piston Ass-y (.010 O.S.)

$

$

Not available

Toro 92-0508

Piston Ass-y (.020 O.S.)

$

$

Not available

Toro 92-0509

Piston Ass-y (.030 O.S.) Piston Ring Sets:

$

$

Not available

26

Toro 78-3630

Ring-Piston (Std.)

$

$

Not available

Toro 92-0510

Ring-Piston (.010 O.S.)

$

$

Not available

Toro 92-0511

Ring-Piston (.020 O.S.)

$

$

Not available

Toro 92-0512

Ring-Piston (.030 O.S.)

$

$

Not available

27

Toro 78-3640

Lock

$

$

Not available

28

Toro 78-3650

Pin Ass-y (Std.)

$

$

Not available

29

Toro 78-3660

Rod Assembly

$

$

Not available

32

Toro 78-3670

Nut

$

$

Not available

33

Toro 78-3680

Exhaust Valve

$

$

Not available

34

Toro 78-3690

Intake Valve

$

$

Not available

35

Toro 78-3700

Spring

$

$

Not available

40

Toro 78-3710

Spring Retainer

$

$

Not available

42

Toro 78-3720

Retainer-Valve

$

$

Not available

45

Toro 78-3730

Tappet

$

$

Not available

46

Toro 78-3740

Gear

$

$

Not available

84

Toro 78-3830

Plug

$

$

Not available

87

Toro 78-3840

Seal

$

$

Not available

116

Toro 78-3910

"O"Ring

Note: Included in Overhaul Kit Part No. 92-0542

$

$

Not available

116A

Toro 78-3920

"O"Ring

Note: Included in Overhaul Kit Part No. 92-0542

$

$

Not available

166

Toro 78-4060

Stud

$

$

Not available

166A

Toro 78-4070

Stud

$

$

Not available

167

Toro 78-4080

Washer

Note: Included in Overhaul Kit Part No. 92-0542

$

$

Not available

171

Toro 78-4090

Nut

Note: Included in Overhaul Kit Part No. 92-0542

$

$

Not available

189

Toro 78-4120

Lockwasher

$

$

Not available

192

Toro 78-4130

Screw

$

$

Not available

209

Toro 78-3900

Choke Valve

$

$

Not available

209A

Toro 78-4160

Idle Spring

$

$

Not available

227

Toro 92-0513

LEVER ASM - GOVERNOR

$

$

Not available

243

Toro 78-4230

Screen

$

$

Not available

265

Toro 77-8280

CLAMP - CASING
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

277

Toro 78-4280

Washer

$

$

Not available

337

Toro 78-7330

WIRING-HARNESS & DIA

$

$

Not available

522A

Toro 78-4640

Bushing-Shaft

$

$

Not available

523

Toro 78-4560

Dipstick

$

$

Not available

524

Toro 78-4670

Seal-Filler Tube

$

$

Not available

552

Toro 78-4630

Bushing

$

$

Not available

562

Toro 78-4650

Bolt

$

$

Not available

572

Toro 78-4660

Spring-Door

$

$

Not available

592

Toro 78-3670

Nut

$

$

Not available

614

Toro 78-4710

Cotter Pin

$

$

Not available

616

Toro 78-4740

FORK-GOVERNOR

$121.99

$

Usually ships in 3-6 days

0

634

Toro 78-4750

Washer

$

$

Not available

634A

Toro 78-4760

Collar-Throttle

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

635

Toro 78-4790

Elbow-Spark Plug

$

$

Not available

718

Toro 78-4810

Dowel-Crankcase

$

$

Not available

729

Toro 92-0550

GROMMET

$

$

Not available

741

Toro 92-0514

Gear-Timing

$

$

Not available

819

Toro 78-4910

Screw

$

$

Not available

823

Toro 78-4920

Screw

$

$

Not available

842

Toro 78-4930

"O"Ring

$

$

Not available

864

Toro 78-4960

Liner

$

$

Not available

868

Toro 78-4980

Seal

$

$

Not available

869

Toro 78-4990

Seal-Intake Valve

$

$

Not available

870

Toro 78-5000

Seat-Exhaust Valve

$

$

Not available

871

Toro 78-5010

Guide-Valve

$

$

Not available

978

Toro 78-5160

Gasket

Note: Included in Overhaul Kit Part No. 92-0542

$

$

Not available

982

Toro 78-5170

Screw

$

$

Not available

1022

Toro 78-5240

Gasket

Note: Included in Overhaul Kit Part No. 92-0542

$

$

Not available

1023

Toro 78-5250

Cover

$

$

Not available

1024

Toro 78-5270

Oil Pump Assembly

$

$

Not available

1025

Toro 78-5280

Governor Slider

$

$

Not available

1026

Toro 78-5290

Rod

$

$

Not available

1027

Toro 78-5300

FILTER-OIL
(Superseded to 107-7817)

$17.99

$

In Stock, Qty 6

0

1028

Toro 78-5310

Adapter-Oil Filter

$

$

Not available

1029

Toro 78-5320

Arm

$

$

Not available

1030

Toro 78-4460

Shaft

$

$

Not available

1031

Toro 78-4190

Rocker Arm Support

$

$

Not available
