R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) ENGINE TORO POWER PLUS Parts Diagram

Yard Tractor

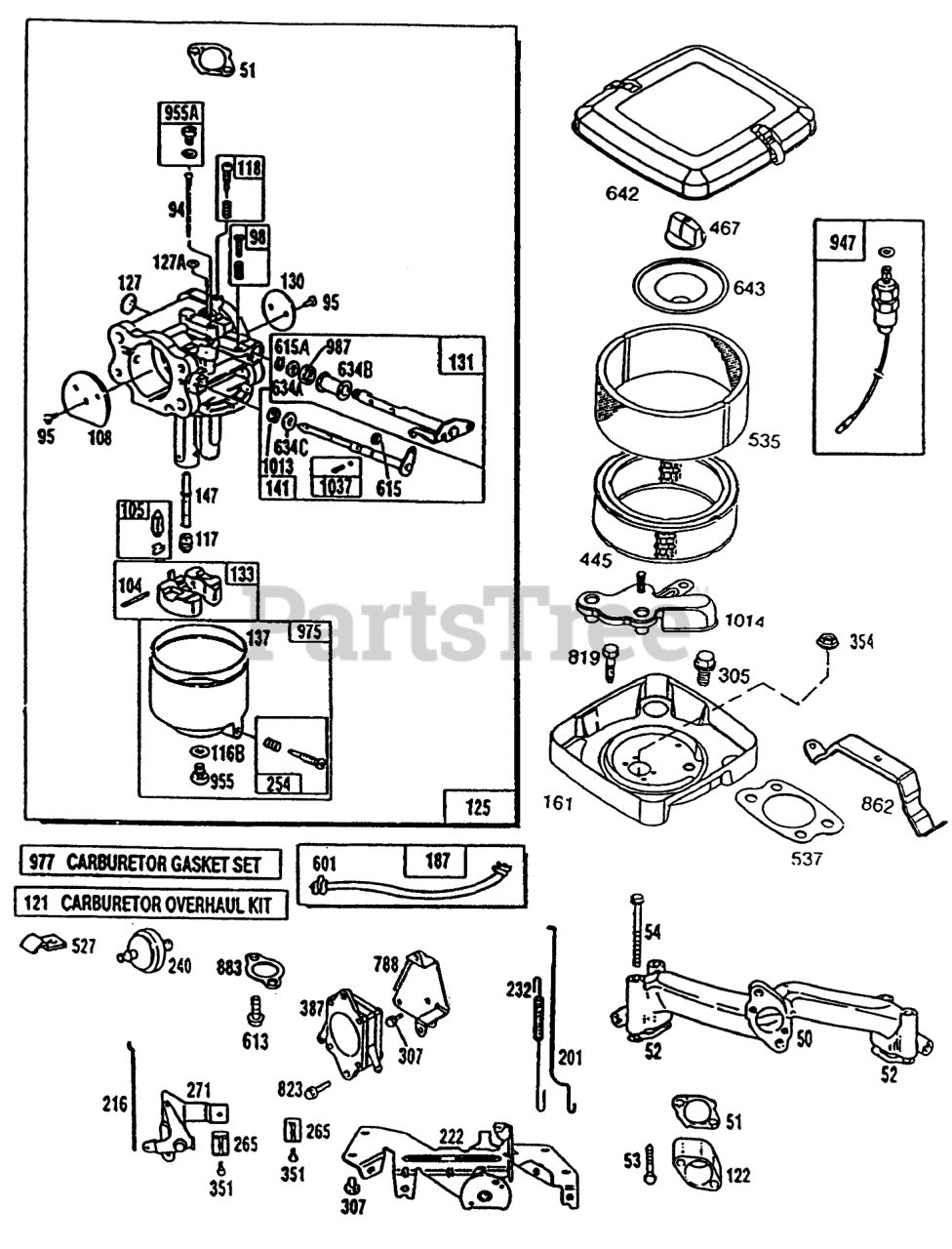

ENGINE TORO POWER PLUS Parts Diagram

  • Title

50

Toro 78-3750

Manifold-Intake

$

$

Not available

51

Toro 78-3770

Gasket

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

52

Toro 78-3780

Gasket-Intake Manifold

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

53

Toro 78-3790

Screw

$

$

Not available

94

Toro 92-0515

NOZZLE - CARBURETOR

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

95

Toro 78-3860

Screw

$

$

Not available

98

Toro 92-0516

Screw-Throttle

$

$

Not available

104

Toro 92-0517

Pin-Float Hinge

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

105

Toro 92-0518

Valve Fuel Inlet

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

Toro 92-0562

JET - HIGH ALTITUDE

$

$

Not available

118

Toro 78-3950

Valve Assembly

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

121

Toro 92-0519

Kit-CarburetorOverhaul

$

$

Not available

122

Toro 78-3970

Spacer

$

$

Not available

125

Toro 92-0520

Carburetor Assembly

$

$

Not available

127

Toro 78-3990

Plug

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

127A

Toro 78-4000

Plug

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

130

Toro 92-0521

Valve-Throttle

$

$

Not available

131

Toro 78-4020

Shaft

$

$

Not available

137

Toro 42-0560

Gasket-Float Bowl

Note: Included in Carburetor Gasket Set Part No. 92-0560

$

$

Currently unavailable

133

Toro 78-4030

Float Asembly

$

$

Not available

141

Toro 78-4040

Choke Shaft

$

$

Not available

147

Toro 92-0523

NOZZLE

$

$

Not available

161

Toro 92-0524

Base-Air Cleaner

$

$

Currently unavailable

187

Toro 92-0525

HOSE - 11" LONG FULE

$

$

Not available

Toro 92-0559

HOSE - FUEL

$

$

Not available

201

Toro 78-4140

Link

$

$

Not available

216

Toro 78-4170

Choke Link

$

$

Not available

222

Toro 78-4180

Bracket

$

$

Not available

232

Toro 78-4210

Governor Link Spring

$

$

Not available

240

Toro 78-4220

Filter

$

$

Not available

254

Toro 78-4250

Drain

$

$

Not available

265

Toro 78-8280

ARM

$

$

Not available

265

Toro 77-8280

CLAMP - CASING
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

271

Toro 78-4260

Bracket

$

$

Not available

305

Toro 78-4300

Screw

$

$

Not available

307

Toro 78-4310

Screw

$

$

Not available

351

Toro 78-4420

Screw

$

$

Not available

354

Toro 92-0526

Nut

$

$

Not available

387

Toro 78-4490

PUMP-FUEL

$

$

Not available

445

Toro 92-0527

CARTRIDGE-CLEANER, AIR

$29.99

$

In Stock, only 1 left!

0

467

Toro 92-0528

Knob-Air Cleaner

$

$

Not available

522A

Toro 78-4640

Bushing-Shaft

$

$

Not available

527

Toro 92-0529

Clamp-Fuel Pipe

$

$

Not available

535

Toro 92-0530

ELEMENT-FILTER

$13.99

$

Usually ships in 3-6 days

0

537

Toro 92-0531

Gasket-Air Cleaner

$

$

Not available

601

Toro 92-0532

Clamp-Hose

$

$

Not available

613

Toro 78-4700

SCREW-SEM

$

$

Not available

615

Toro 78-4720

Retainer-Choke Shaft

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

615A

Toro 78-4730

Retainer-Throttle Shaft

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

634B

Toro 78-4770

Collar-Throttle

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

634C

Toro 78-4780

Choke Collar

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

634A

Toro 78-4760

Collar-Throttle

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

642

Toro 92-0533

COVER ASM - AIR CLEANER

$

$

Not available

643

Toro 92-0534

Plate-Air Filter

$

$

Not available

729

Toro 92-0550

GROMMET

$

$

Not available

788

Toro 92-0535

BRACKET - FUEL PUMP

$

$

Not available

819

Toro 78-4910

Screw

$

$

Not available

823

Toro 78-4920

Screw

$

$

Not available

862

Toro 92-0536

Bracket-Air Cleaner

$

$

Not available

883

Toro 92-0537

EXHAUST MANIFOLD GASKET

Note: Includled in Carburetor Kit Part No. 92-0519

$

$

Not available

947

Toro 92-0538

Solenoid

$

$

Not available

955

Toro 78-5070

Screw

$

$

Not available

955A

Toro 78-5080

Plug and Seal

$

$

Not available

975

Toro 78-5140

Bowl Assembly

$

$

Not available

977

Toro 78-3940

Set Carburetor Gasket

$

$

Not available

987

Toro 78-5180

Seal

Note: Included in Carburetor Gasket Set Part No. 92-0560

$

$

Not available

1013

Toro 78-5220

Seal

$

$

Not available

1014

Toro 92-0539

Deflector-Air Cleaner

$

$

Not available

1037

Toro 78-5150

Ball

$

$

Not available
