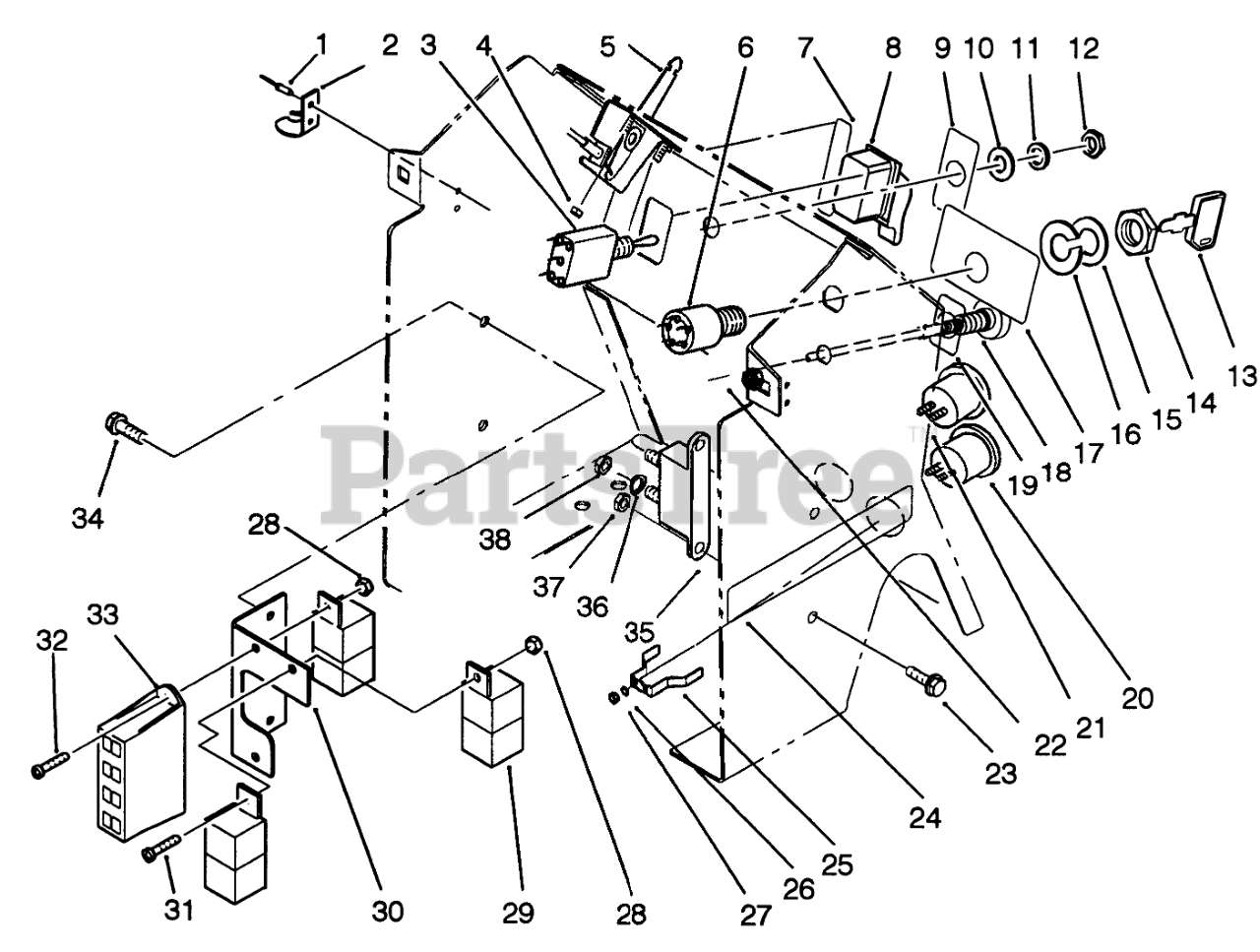

R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) DASH ASSEMBLY Parts Diagram

Yard Tractor

DASH ASSEMBLY Parts Diagram

  • Title
1

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

2

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

3

Toro 102138

Switch-Lights (Incl. Ref. #10-12)

$40.99

$

Usually ships in 3-6 days

0

4

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

5

Toro 118450

CONTROL-THROTTLE

$99.99

$

Usually ships in 3-6 days

0

6

Toro 116338

Switch-Ignition, Assembly (Incl. Ref #13-16)

$78.99

$

In Stock, only 2 left!

0

7

Toro 78-8440

DECAL-PTO

$

$

Not available

8

Toro 78-3030

PTO-SWITCH W/COVER

$126.99

$

In Stock, only 3 left!

0

9

Toro 78-8490

DECAL-LIGHTS

$

$

Not available

10

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

11

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

12

$

$

Not available

13

Toro 116738

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

14

$7.49

$

In Stock, only 1 left!

0

15

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

16

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

17

Toro 78-8480

DECAL-IGNITION

$

$

Not available

18

Toro 79-5620

CONTROL-CHOKE

$

$

Not available

19

Toro 79-5420

DECAL-CHOKE

$

$

Not available

20

Toro 78-0021

Meter-Hour (Incl. Ref. #20 & 23-25)

$

$

Not available

21

Toro 79-0060

VOLTMETER

$168.99

$

Usually ships in 3-6 days

0

22

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

23

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

24

Toro 117511

DECAL-MODEL HYDRO

$

$

Not available

25

Toro 78-3320

CLAMP-HOUR METER

$11.99

$

Usually ships in 3-6 days

0

26

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

27

$

$

Currently unavailable

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

30

Toro 79-5030

BRKT-FUSE HOLDER B

$

$

Not available

31

Toro 3250-14

SCREW-PPH

$6.99

$

Usually ships in 3-6 days

0

32

Toro 78-8710

SCREW

$0.99

$

Usually ships in 3-6 days

0

33

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

34

Toro 79-1590

TRS-1/4-20X1/2 BLACK

$

$

Not available

35

Toro 110167

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, only 3 left!

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

38

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0
