R2-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) BRAKE AND HYDRO LINKAGE Parts Diagram

Yard Tractor

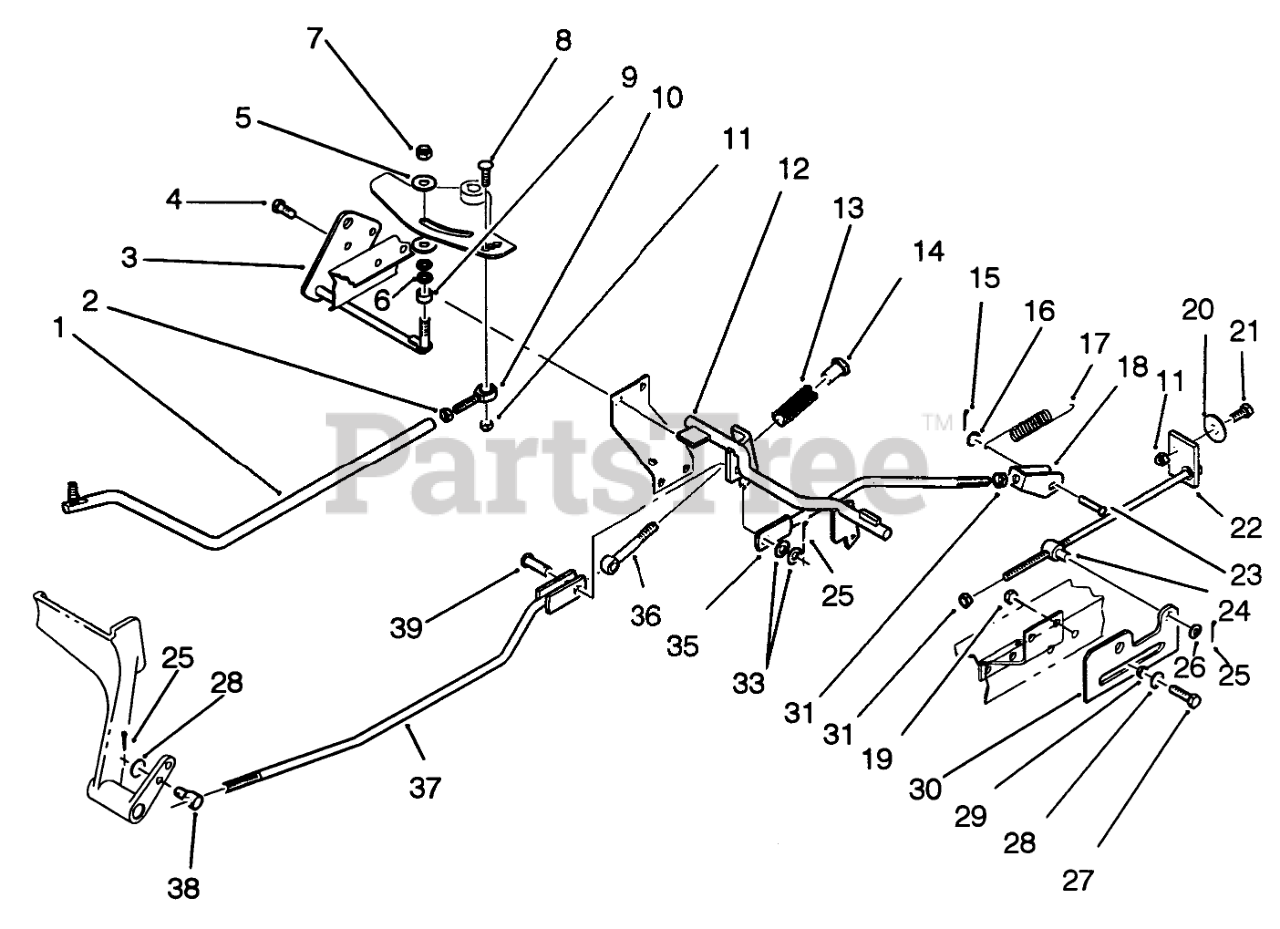

BRAKE AND HYDRO LINKAGE Parts Diagram

  • Title
1

Toro 78-6150

ROD-CONTROL R

$

$

Not available

2

Toro 915088

Nut
(Superseded to 3220-11)

$1.49

$

Usually ships in 3-6 days

0

3

Toro 78-6170

WLDMT-ROD R

$

$

Not available

4

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

6

Toro 100365

WASHER-SPRING DISC

$

$

Not available

7

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

8

Toro 900215

Bolt-Carriage
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

9

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

10

Toro 115575

BALL-END
(Superseded to 2411-52)

$37.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 78-6100

WLDMT-NEUTRAL SHA R

$

$

Not available

13

Toro 79-0440

SPRING-COMPRESSION

$

$

Not available

14

Toro 115559

NUT-RETAINER

$

$

Not available

15

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 79-4970

SPRING-EXTENSION

$

$

Not available

18

Toro 116047

WLDMT-CLEVIS

$23.99

$

Usually ships in 3-6 days

0

20

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

21

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 78-6270

WLDMT-BOLT

$

$

Not available

23

$

$

Not available

24

Toro 104627

TRUNNION

$

$

Not available

25

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 101389

SPACER

$

$

Not available

30

Toro 78-6250

PLATE R

$

$

Not available

31

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

33

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

34

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

35

Toro 79-2430

WLDMT-ROD

$

$

Not available

36

Toro 115558

EYE-BOLT

$

$

Not available

37

Toro 78-6071

WLDMT-BRAKE ROD

$

$

Not available

38

Toro 115554

TRUNNION

$

$

Not available

39

Toro 932966

CLEVIS PIN

$

$

Not available
