R2-12OE02 (212-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) TRANSMISSION ASSEMBLY (212-5) Parts Diagram

Garden Tractor

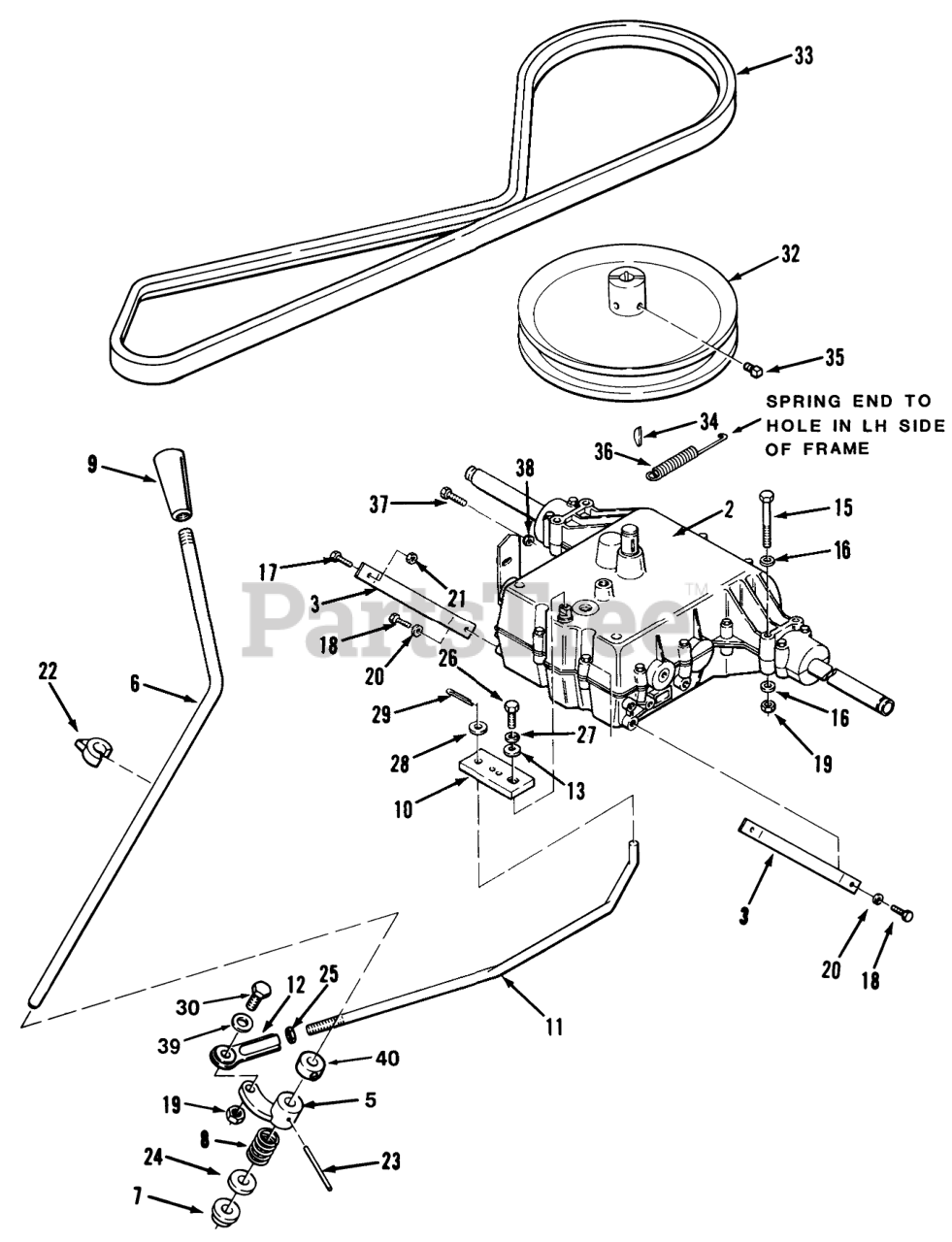

TRANSMISSION ASSEMBLY (212-5) Parts Diagram

  • Title

2

Toro 78-3340

ASS'Y TRANSAXLE 5-SP

$2282.99

$

Usually ships in 3-6 days

0

3

Toro 112982

TORQUE-STRAP R

$

$

Not available

5

Toro 111430

ARM SHIFTER B

$

$

Not available

6

Toro 78-2020

ROD-SHIFT LEVER

$

$

Not available

7

Toro 5666

BUSHING-NYLINER

$3.49

$

In Stock, only 4 left!

0

8

Toro 111432

SPRING COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

9

Toro 112983

KNOB

$24.99

$

Usually ships in 3-6 days

0

10

Toro 115198

ARM-TRANSMISSION 5SP

$

$

Not available

11

Toro 115042

ROD-LINKAGE

$73.99

$

Usually ships in 3-6 days

0

12

Toro 115043

END-ROD

$

$

Not available

13

Toro 104869

WASHER

$

$

Not available

15

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

18

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 1 left!

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

22

Toro 113025

POINTER

$3.99

$

Usually ships in 3-6 days

0

23

Toro 933273

SPIROL PIN 7/32X21/2

$2.49

$

Usually ships in 3-6 days

0

24

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

25

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

26

Toro 329-5

SCREW-HH

$

$

Not available

27

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 920268

WASHER-SPECIAL

$

$

Not available

29

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

32

Toro 116120

PULLEY-TRANS (L)

$262.99

$

Usually ships in 3-6 days

0

33

Toro 114860

BELT-V

$42.99

$

In Stock, only 1 left!

0

34

Toro 937225

KEY-HI-PRO

$4.99

$

Usually ships in 3-6 days

0

35

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

36

Toro 110769

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

37

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 78-2030

COLLAR

$

$

Not available
