R2-12O502 (212-5) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) ENGINE PULLEY & PTO CLUTCH ASSEMBLY Parts Diagram

Garden Tractor

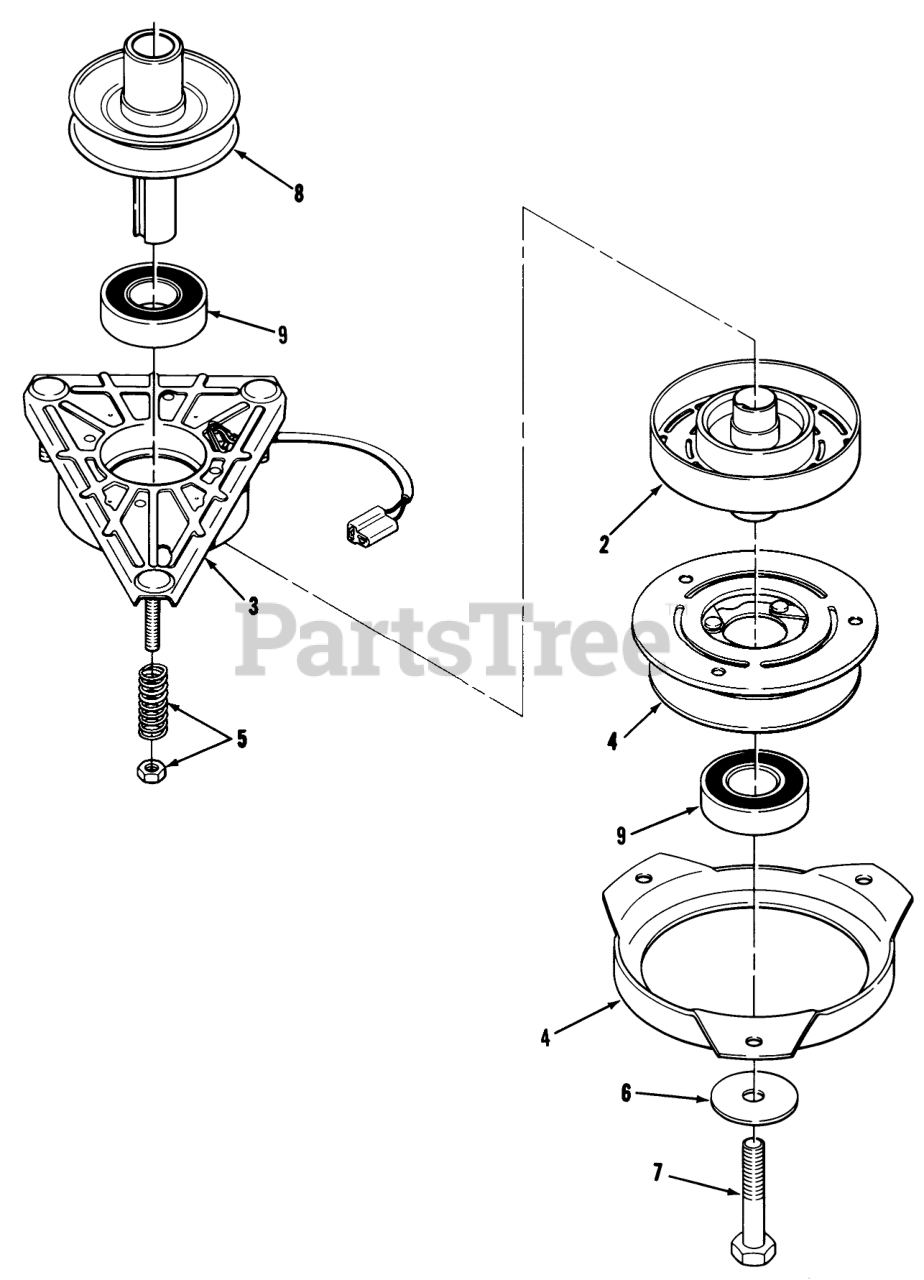

ENGINE PULLEY & PTO CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 115629

Electric Clutch Assembly (Incl. Ref. #2-5)
(Superseded to 99-8011)

$

$

Not available

2

Toro 113820

ASS'Y-ROTOR

$

$

Not available

3

Toro 113821

Field Assembly (Incl. Ref. #9)

$

$

Not available

4

Toro 113822

Armature & Pulley Assy. (Incl. Ref. #9)

$438.99

$

Usually ships in 3-6 days

0

5

Toro 113823

ACCESS SPRING & NUT

$

$

Not available

6

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

7

Toro 112853

HHCS M10X1.5X120

$

$

Not available

8

Toro 112858

PULLEY-ENGINE

$209.99

$

Usually ships in 3-6 days

0

9

Toro 114064

BEARING-ELEC CLUTCH

$77.99

$

In Stock, only 2 left!

0
