R2-12O502 (212-5) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) ENGINE FUEL & EXHAUST ASSEMBLY Parts Diagram

Garden Tractor

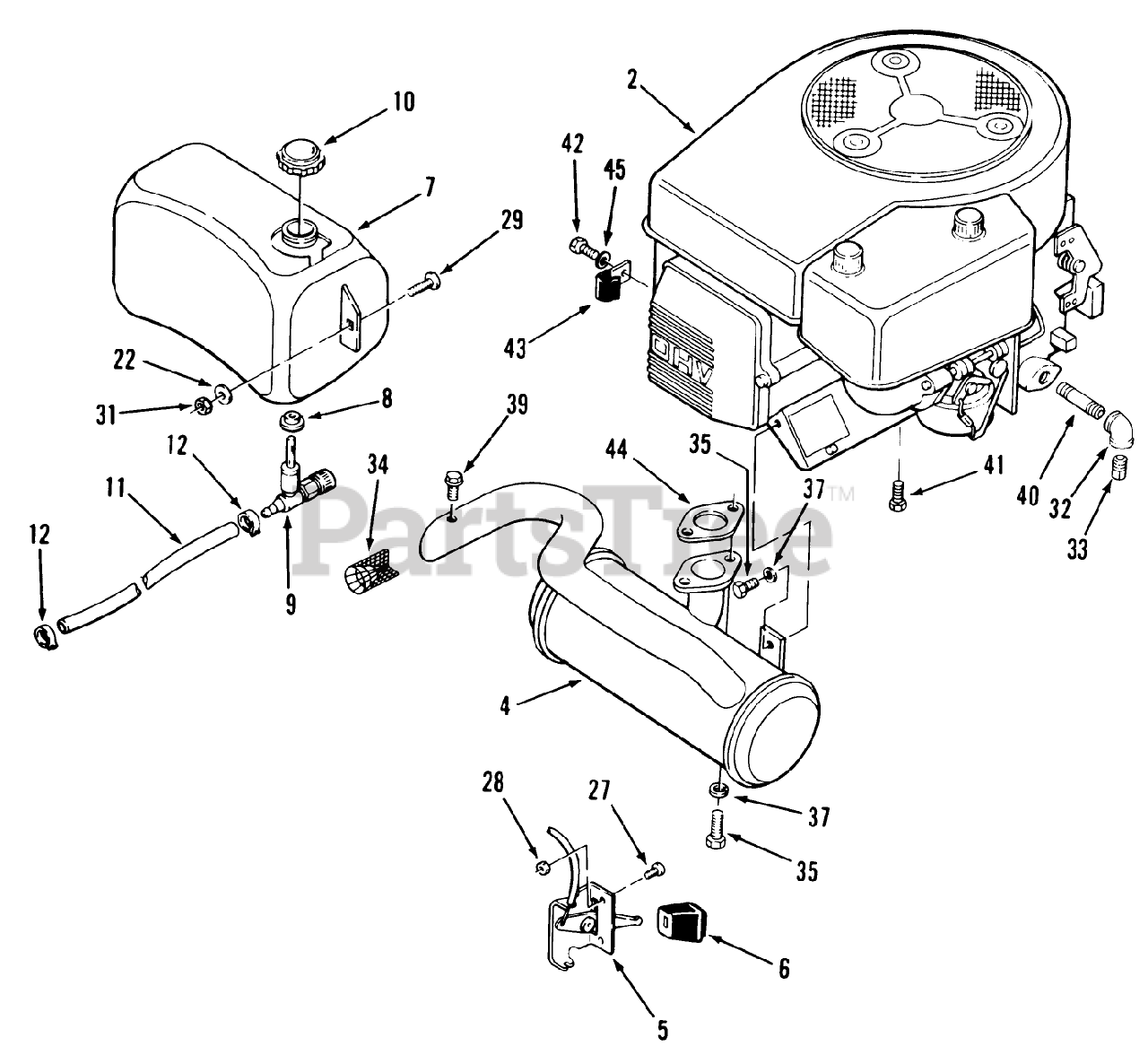

ENGINE FUEL & EXHAUST ASSEMBLY Parts Diagram

  • Title
2

Toro 78-8550

Engine-12HP TORO Power Plus Model No. E125V Type N/10964B

$

$

Not available

4

Toro 116702

MUFFLER-EXHAUST

$

$

Not available

5

Toro 79-3320

CONTROL-THROTTLE

$

$

Not available

6

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

7

Toro 112153

Fuel Tank Assembly (Incl. Ref. #8 & 9)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

9

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

10

Toro 111474

CAP GAS

$28.99

$

In Stock, only 2 left!

0

11

Toro 117225

Line-Fuel
(Superseded to 110521)

$

$

Not available

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 111499

SCREW #10X.62 PHCR

$

$

Not available

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

33

Toro NN10653

Plug-Pipe
(Superseded to NN10783)

$

$

Not available

34

Toro 115356

Arrester-Spark
(Superseded to 93-9911)

$45.99

$

Usually ships in 3-6 days

0

35

Toro 113113

HHCS M8X1.25X20

$

$

Not available

37

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

Toro 911652

BOLT-HEX S.T. #8X1/2

$

$

Not available

40

Toro 114636

Pipe
(Superseded to 289-45)

$23.99

$

Usually ships in 3-6 days

0

41

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

42

Toro 48-7630

SCREW
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

43

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

44

Toro 117184

GASKET-EXHAUST

$34.99

$

Usually ships in 3-6 days

0

45

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
