R2-12O501 (212-5) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) FRONT AXLE & STEERING ASSEMBLY Parts Diagram

Garden Tractor

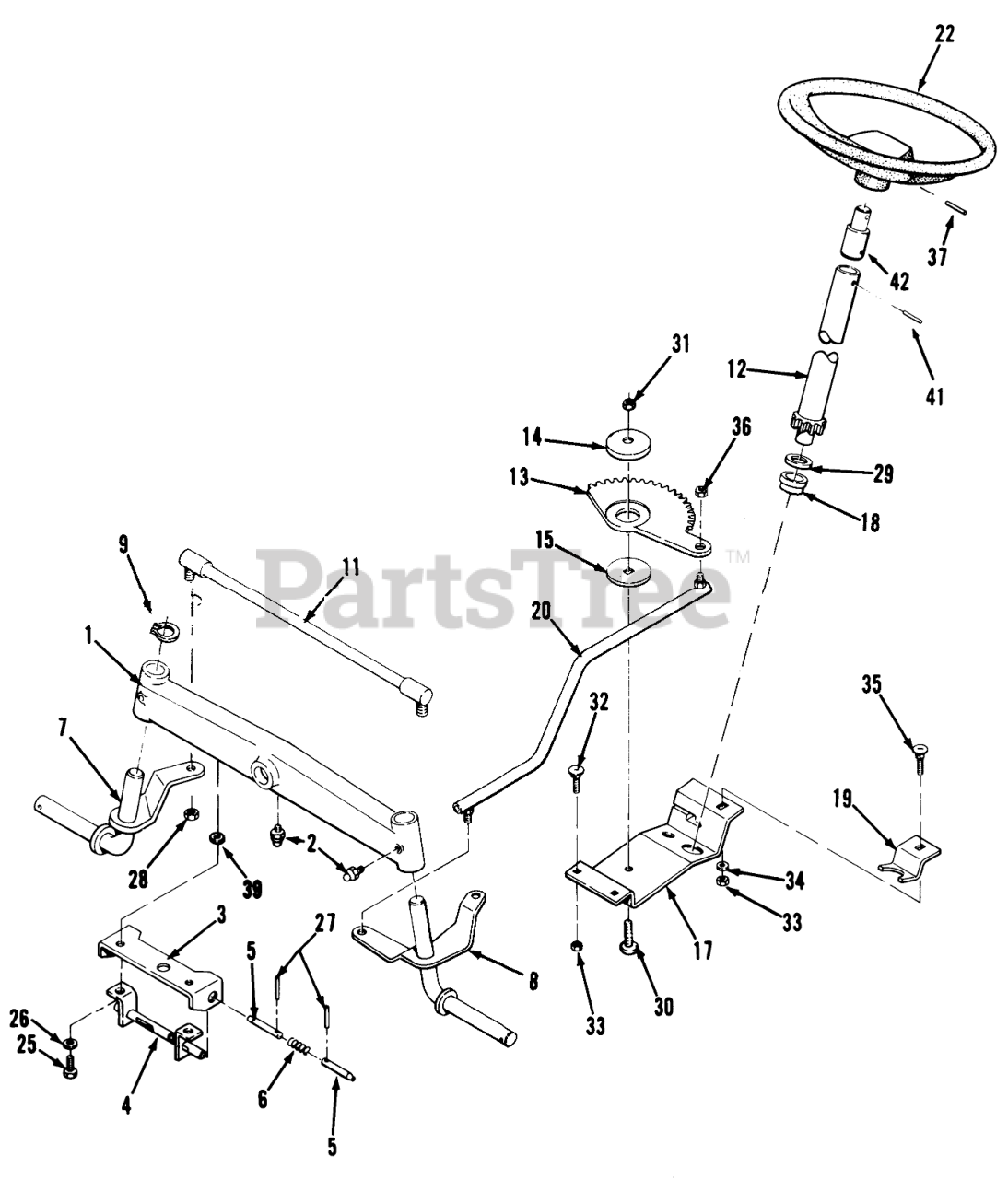

FRONT AXLE & STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 114385

AXLE-FRONT R

$

$

Not available

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3

Toro 112847

BRACKET-SUPPORT R
(Superseded to 112847-01)

$

$

Not available

4

Toro 113044

TUBE & BRACKET ASM R

$

$

Not available

5

Toro 113030

PIN

$

$

Not available

6

Toro 111531

SPRING

$

$

Not available

7

Toro 111406

ASSY ARM STEERING R
(Superseded to 111406-01)

$

$

Not available

8

Toro 111409

ASSY ARM STEERING R
(Superseded to 111409-01)

$

$

Not available

9

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

11

Toro 112981

ASS'Y-TIE ROD R
(Superseded to 112981-01)

$

$

Not available

12

Toro 111413

ASSY PINION & SHA B
(Superseded to 111413-01)

$307.99

$

Usually ships in 3-6 days

0

13

Toro 111417

GEAR SECTOR

$

$

Not available

14

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

15

Toro 111419

WASHER-BEARING

$

$

Not available

17

Toro 78-1991

BRKT-STEERING GEA R

$

$

Not available

Toro 78-3221

BRKT-STEERING GEA R

$

$

Not available

18

Toro 110391

BEARING-WHEEL

$7.99

$

In Stock, only 4 left!

0

19

Toro 111422

RETAINER R (NS)

$

$

Not available

20

Toro 111423

ASSY BALL JOINT L R
(Superseded to 111423-01)

$

$

Not available

22

Toro 78-3100

STR'G-WHL 13" TORO

$374.99

$

Usually ships in 3-6 days

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 32121-103

PIN-SPRING

$

$

Not available

28

Toro 915001

Nut-Lock
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 11

0

29

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

30

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

31

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

32

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

33

Toro 3229-29

SCREW-CARR

$

$

Not available

34

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

35

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

36

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

37

Toro 933272

SPIROL PIN 5/16X13/8

$2.49

$

Usually ships in 3-6 days

0

39

Toro 2844

WASHER

$2.99

$

In Stock, Qty 16

0

41

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

42

Toro 116480

SHAFT-COUPLER

$115.99

$

Usually ships in 3-6 days

0
