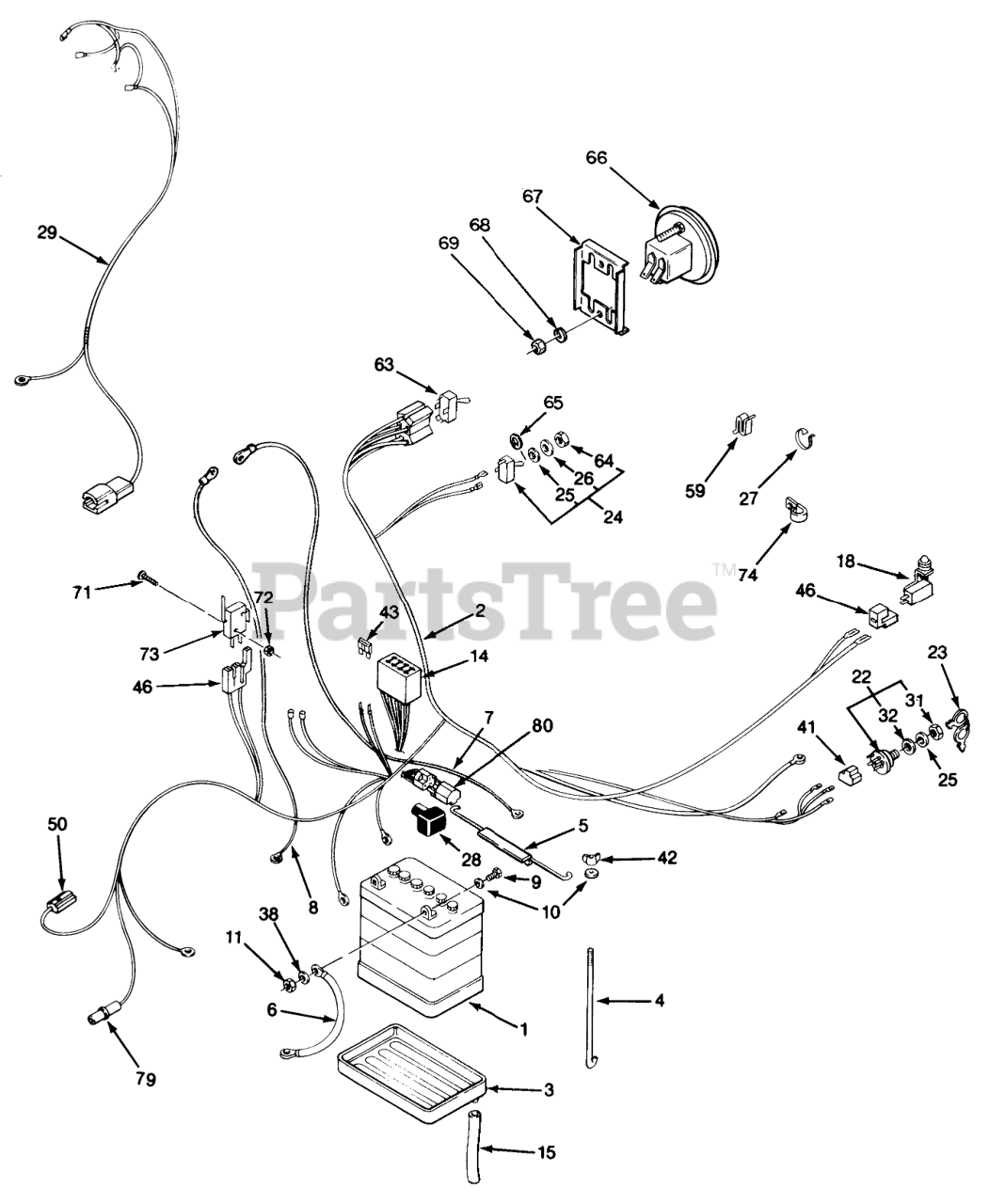

R2-12O501 (212-5) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

Garden Tractor

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

2

Toro 79-0500

Harness Wire (Incl. Ref. #14, 41 & 46)

$

$

Not available

3

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

4

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

5

Toro 117316

ROD-BATTERY HOLD DWN

$29.99

$

In Stock, only 1 left!

0

7

Toro 111076

WIRE - 14" BLACK

$

$

Not available

8

Toro 112757

ASS'Y-WIRE

$

$

Not available

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

14

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

15

Toro 114721

TUBE-BATTERY DRAIN

$

$

Not available

18

Toro 38-1420

SWITCH-SEAT

$

$

Not available

22

Toro 116338

Switch-Ignition (Incl. Ref. #31-32)

$78.99

$

In Stock, only 2 left!

0

23

Toro 116738

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

24

Toro 102138

Switch-Light (Incl. Ref. #64 & 65)

$40.99

$

Usually ships in 3-6 days

0

25

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

27

Toro 100571

PLASTIC TIE

$

$

Not available

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 115204

HARNESS-HEADLIGHT

$

$

Not available

31

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

32

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

38

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

41

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

42

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

46

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

50

Toro 104926

CONNECTOR BODY ELECT

$4.49

$

In Stock, only 2 left!

0

59

Toro 3023

SPEED CLIP

$

$

Not available

63

Toro 78-3030

PTO-SWITCH W/COVER

$126.99

$

In Stock, only 3 left!

0

64

Toro 113179

DISC

$

$

Not available

65

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

66

Toro 78-0020

Hourmeter
(Superseded to 66-2950)

$

$

Not available

67

Toro 78-3320

CLAMP-HOUR METER

$11.99

$

Usually ships in 3-6 days

0

68

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

69

Toro 915564

Nut
(Superseded to 3217-27)

$0.99

$

Usually ships in 3-6 days

0

71

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

72

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

73

Toro 115230

SWITCH - CLUTCH

$34.99

$

Usually ships in 3-6 days

0

74

Toro 105490

CLAMP

$

$

Not available

79

Toro 107831

SOCKET HOUSING

$

$

Not available

80

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0
