R2-12O501 (212-5) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) BRAKE & IDLER ASSEMBLY (212-H) Parts Diagram

Garden Tractor

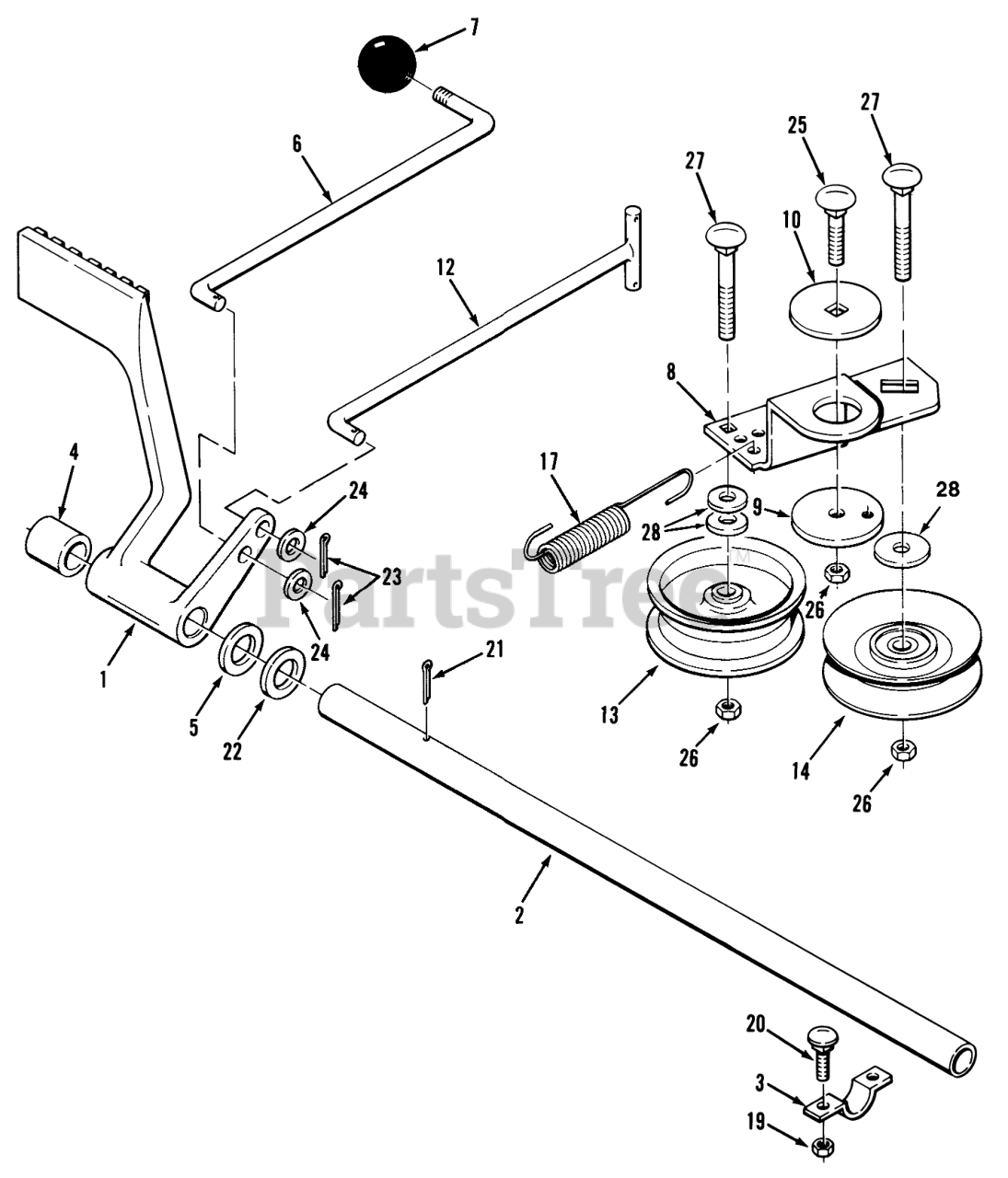

BRAKE & IDLER ASSEMBLY (212-H) Parts Diagram

  • Title

1

Toro 114418

PEDAL-BRAKE R

$

$

Not available

2

Toro 111437

SHAFT PEDAL

$

$

Not available

3

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

4

Toro 110015

SPACER

$

$

Not available

5

Toro 111712

WASHER-WAVE

$

$

Not available

6

Toro 114705

ROD-BRAKE LOCK B

$

$

Not available

7

Toro 111070

KNOB
(Superseded to 93-5312)

$10.99

$

Usually ships in 3-6 days

0

8

Toro 114034

ARM-IDLER R

$

$

Not available

9

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

10

Toro 111419

WASHER-BEARING

$

$

Not available

12

Toro 114707

ASSY-ROD FRONT BR

$

$

Not available

13

Toro 111442

PULLEY IDLER

$56.99

$

Usually ships in 3-6 days

0

14

Toro 109444

PULLEY-IDLER

$71.99

$

Usually ships in 3-6 days

0

17

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 5

0

23

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

27

Toro 3231-29

SCREW-CARR

$7.49

$

Usually ships in 3-6 days

0

28

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0
