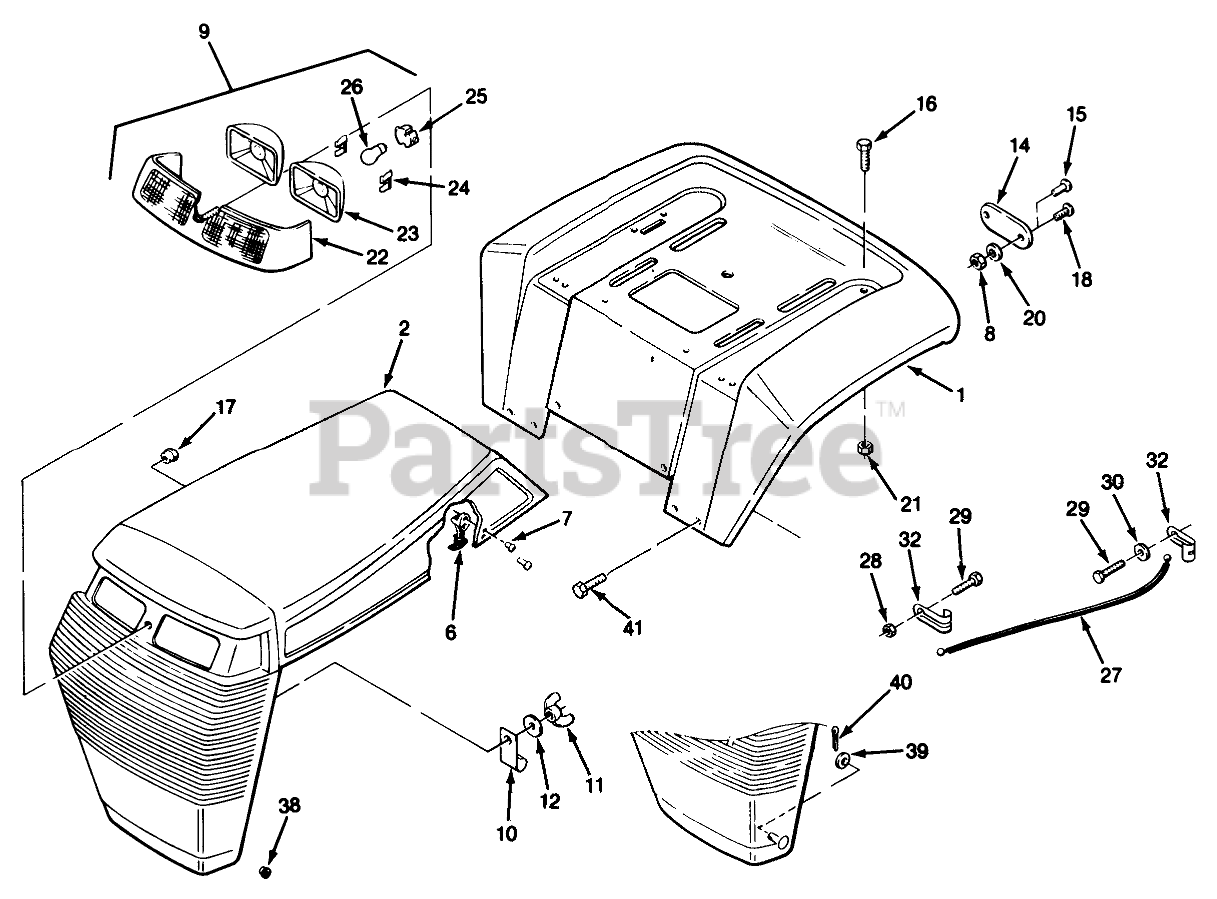

R2-12O501 (212-5) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) BODY ASSEMBLY Parts Diagram

Garden Tractor

BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 114389

FENDER R

$689.99

$

Usually ships in 3-6 days

0

2

Toro 116800

Hood & Grill
(Superseded to 120890)

$1213.99

$

Usually ships in 3-6 days

0

6

Toro 117344

HANDLE ASM

$35.99

$

In Stock, only 1 left!

0

7

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

8

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

9

Toro 116591

Headlight Bar Assembly (Incl. Ref. #22-24 & 26)

$

$

Not available

10

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

11

Toro 32103-19

WING NUT

$1.49

$

In Stock, only 2 left!

0

12

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

14

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

15

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

16

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0

18

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

21

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

22

Toro 116601

LIGHT-BAR BLACK

$

$

Not available

23

Toro 111684

LIGHT POD

$77.99

$

Usually ships in 3-6 days

0

24

Toro 111685

RETAINER

$5.49

$

Usually ships in 3-6 days

0

25

Toro 116262

SOCKET-HEADLIGHT

$47.99

$

Usually ships in 3-6 days

0

26

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

27

Toro 115414

CABLE-ASS'Y

$12.99

$

Usually ships in 3-6 days

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 913111

Screw-Machine
(Superseded to 3290-321)

$4.49

$

Usually ships in 3-6 days

0

30

Toro 112925

WASHER-BACKING

$

$

Not available

32

Toro 115413

CLEVIS

$

$

Not available

38

Toro 5977

NYLINER BUSHING

$6.99

$

Usually ships in 3-6 days

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

41

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0
