R2-12K501 (212-5) - Toro Garden Tractor (1989) HYDROSTATIC TRANSAXLE Parts Diagram

Garden Tractor

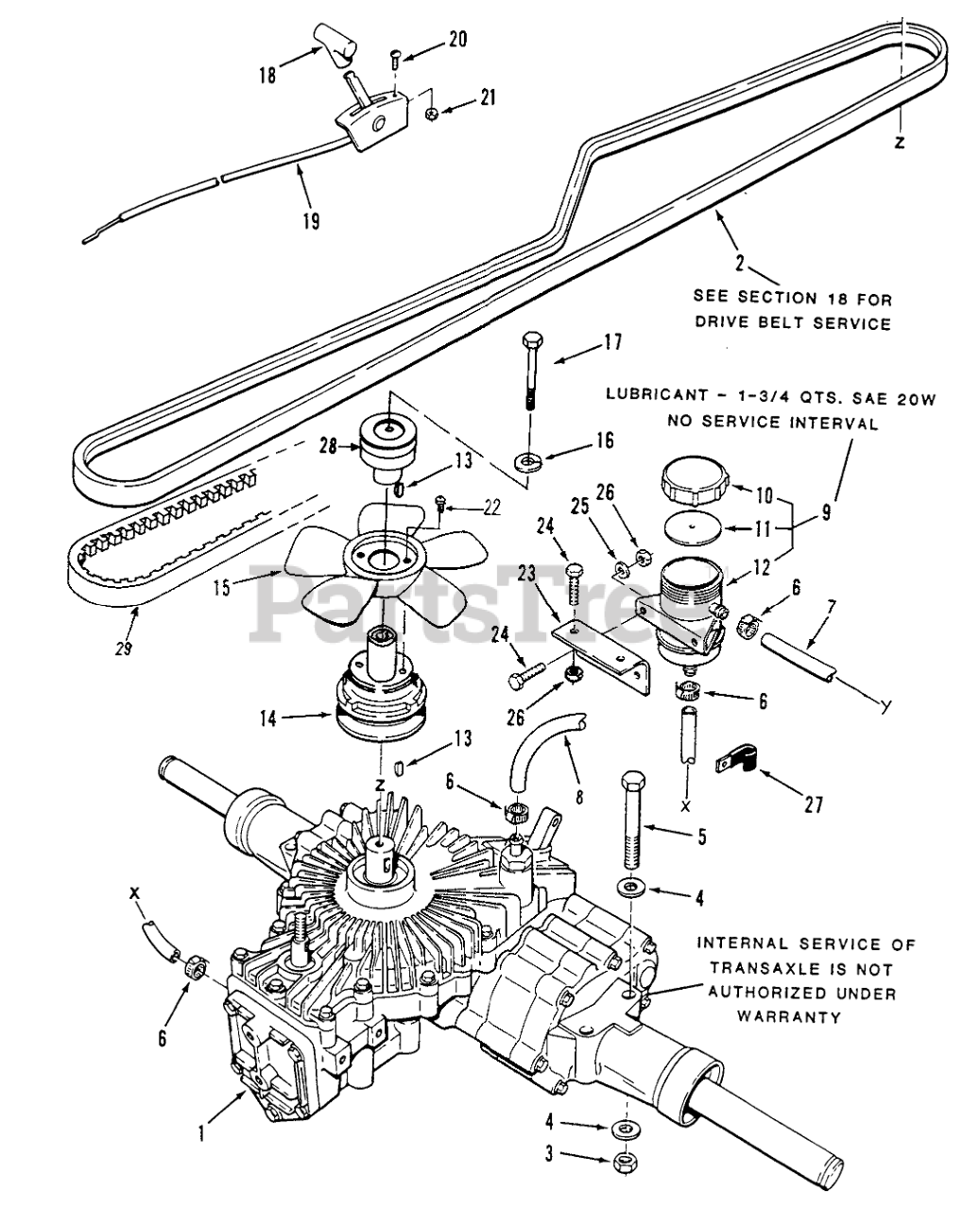

HYDROSTATIC TRANSAXLE Parts Diagram

  • Title
1

113873*

DISCONTINUED

$

$

Not available

219025*

DISCONTINUED

$

$

Not available

2

Toro 114433

BELT V

$53.99

$

Usually ships in 3-6 days

0

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

5

Toro 908026

Pin-Cotter
(Superseded to 322-13)

$3.49

$

In Stock, only 3 left!

0

6

Toro 116180

CLAMP

$

$

Not available

7

Toro 114409

S/A 9" OF 114702

$

$

Not available

8

Toro 114693

S/A 27" OF 114702

$

$

Not available

9

Toro 114028

Hydro Reservoir Complete (includes items 10, 11 & 12)

$25.05

$

In Stock, only 2 left!

0

10

Toro 114562

Cover
(Superseded to 114028)

$25.05

$

In Stock, only 2 left!

0

11

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

12

Toro 114564

RESERVOIR

$

$

Not available

13

Toro 937222

HARD HI PRO KEY

$3.49

$

In Stock, Qty 14

0

14

Toro 115686

PULLEY-DRIVER

$243.99

$

Usually ships in 3-6 days

0

15

Toro 115687

BLADE-FAN

$

$

Not available

16

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

17

$

$

Currently unavailable

18

Toro 107045

KNOB-CONTROL
(Superseded to 233-50)

$3.49

$

In Stock, only 1 left!

0

19

Toro 114434

Push Valve Cable
(Superseded to 116126)

$

$

Not available

20

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

21

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

22

Toro 911910

Screw-Flat Hd.

$

$

Not available

23

Toro 116007

BRKT-RESERVOIR MT R

$

$

Not available

24

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

26

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

27

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

28

Toro 115686

PULLEY-DRIVER

$243.99

$

Usually ships in 3-6 days

0

29

Toro 115966

SERV ASSY-HOOD & PKG

$

$

Not available
