R2-12K501 (212-5) - Toro Garden Tractor (1989) ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

Garden Tractor

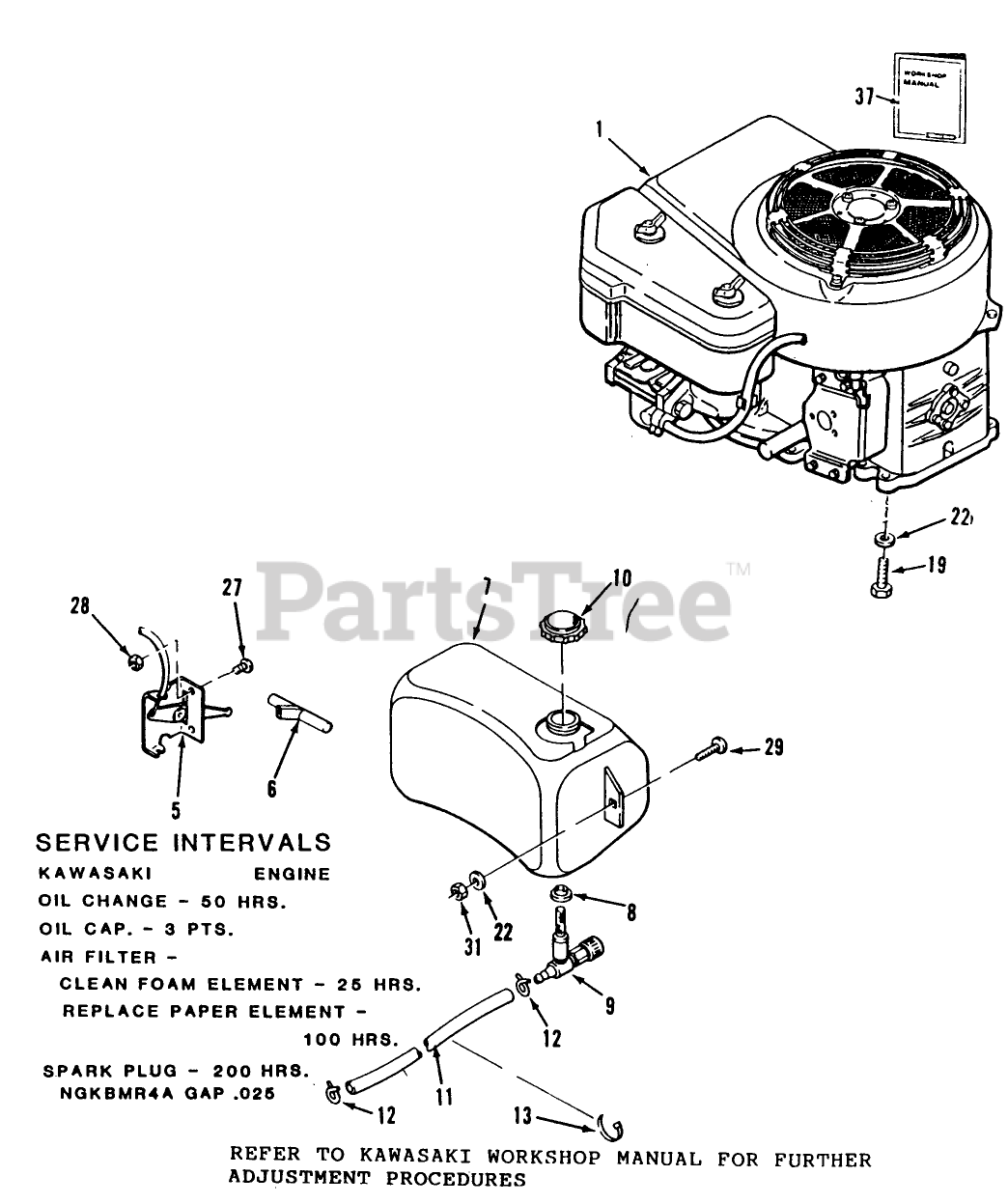

ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 113424

Engine-12HP-Kawasaki FB460V

$

$

Currently unavailable

5

Toro 115790

THROTTLE-CONTROL

$168.99

$

In Stock, only 1 left!

0

6

Toro 107045

KNOB-CONTROL
(Superseded to 233-50)

$3.49

$

In Stock, only 1 left!

0

7

Toro 111472

Fuel Tank
(Superseded to 112153)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

9

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

10

Toro 111474

CAP GAS

$28.99

$

In Stock, only 2 left!

0

11

Toro 112442

Fuel Line

$

$

Not available

12

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

13

Toro 100571

PLASTIC TIE

$

$

Not available

19

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

22

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

27

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

31

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

37

Toro 99924-2011

Kawasaki FB460V Workshop Manual

$

$

Currently unavailable

Toro 810447

Engine Manual 12.5 H.P. K/W

$

$

Currently unavailable

Toro 810556

Engine Manual 12.5 H.P. French

$

$

Currently unavailable

Toro 810559

Engine Manual 12.5 H.P. German

$

$

Currently unavailable
