R2-12K501 (212-5) - Toro Garden Tractor (1989) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

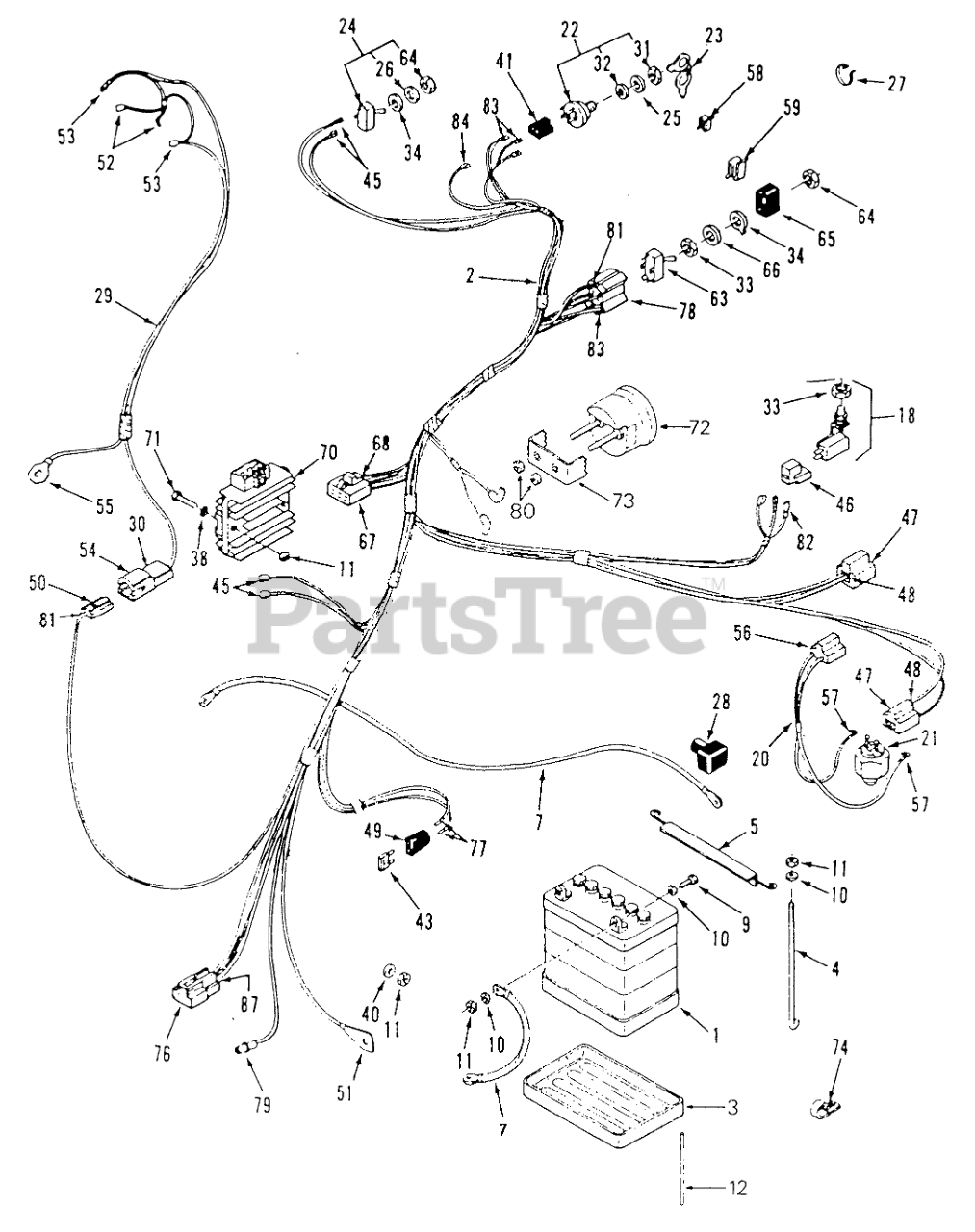

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

2

Toro 115166

MAIN-HARN & WIRE DIA

$

$

Not available

Toro 113718

MAIN-HARNESS & DIA

$

$

Not available

3

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

4

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

5

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 3 left!

0

7

Toro 111076

WIRE - 14" BLACK

$

$

Not available

9

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro -114721

TUBE-BATTERY DRAIN

$

$

Currently unavailable

18

Toro 114240

Seat Switch
(Superseded to 112418)

$60.99

$

In Stock, only 3 left!

0

20

Toro 111364

ASSY WIRING HARNESS

$

$

Not available

21

Toro 111365

SWITCH (N.C.-TRANS)

$

$

Not available

22

Toro 111215

Ignition Switch (Includes Items 31 & 32)
(Superseded to 103991)

$55.99

$

In Stock, only 2 left!

0

23

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

24

Toro 102138

Light Switch (includes items 33 & 34)

$40.99

$

Usually ships in 3-6 days

0

25

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

27

Toro 100571

PLASTIC TIE

$

$

Not available

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 115393

HARNESS-HEADLIGHT

$

$

Not available

31

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

32

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

33

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

34

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

38

Toro 920122

LOCKWASHER

$

$

Not available

40

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

41

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

45

Toro 113088

Connector .250 x .032

$

$

Currently unavailable

46

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

47

Toro 109357

CONNECTOR BODY

$

$

Not available

48

Toro 113131

TERMINAL-LONG MALE

$

$

Not available

49

Toro 113133

FUSE-BLOCK ASS'Y

$

$

Not available

50

Toro 112192

CONNECTOR BODY

$

$

Not available

51

Toro 113128

Ring Terminal

$

$

Currently unavailable

52

Toro 113206

Male Terminals (Part of 1)
(Superseded to 112682)

$

$

Not available

53

Toro 113308

Female Dbl. Crimp Terminal (part of item 29) 211

$

$

Currently unavailable

54

Toro 105312

Connector Part of 5

$

$

Currently unavailable

55

Toro 113127

Ring Terminal (part of item 2)

$

$

Currently unavailable

56

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0

57

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0

58

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

59

Toro 3023

SPEED CLIP

$

$

Not available

63

Toro 113178

Electric Clutch Switch (includes items 33,34 & 64)

$

$

Not available

64

Toro 113179

DISC

$

$

Not available

65

Toro 113050

COVER-PTO SWITCH

$

$

Not available

66

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

67

Toro 112192

CONNECTOR BODY

$

$

Not available

68

Toro 112360

DISCONTINUED

$

$

Not available

70

Toro KW10083

REGULATOR VOLTAGE

$

$

Not available

71

Toro 960155

HHCS 1/4-20X1" WHIZ

$

$

Not available

72

Toro 113469

Hourmeter Gauge (only used on 212-H)

$446.99

$

Usually ships in 3-6 days

0

73

Toro 114017

Gauge Mtg Bracket (only used on 212-H)

$

$

Not available

74

Toro 105490

CLAMP

$

$

Not available

75

Toro 112364

MOUNTING-CLIP CONN

$

$

Not available

76

Toro 112362

3-CONTACT LOCK-TYPE

$

$

Not available

77

Toro 113170

Fuse Holder Term. (1 used on 212) 208, 211

$

$

Currently unavailable

Toro 113171

Fuse Holder Terminal 212

$

$

Currently unavailable

78

Toro 105303

CONNECTOR 5 WAY

$5.49

$

Usually ships in 3-6 days

0

79

Toro 518075

Connector-Socket

$

$

Not available

80

Toro 915962

Nut (only used on 212-H)
(Superseded to 32149-9)

$1.99

$

Usually ships in 3-6 days

0

81

Toro 113090

Wire Terminal (Part of 1)
(Superseded to 112682)

$

$

Not available

82

Toro 113124

Wire Terminal (Part of 1)

$

$

Not available

83

Toro 113206

Male Terminals (Part of 1)
(Superseded to 112682)

$

$

Not available

84

Toro 113172

Belt Guide-Bottom 308 Only

$

$

Not available

87

Toro 113132

Long Male Terminal .248 x .032

$

$

Not available
