R1-24OE02 (724-Z) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) TRANSMISSION DRIVE LINKAGE Parts Diagram

Garden Tractor

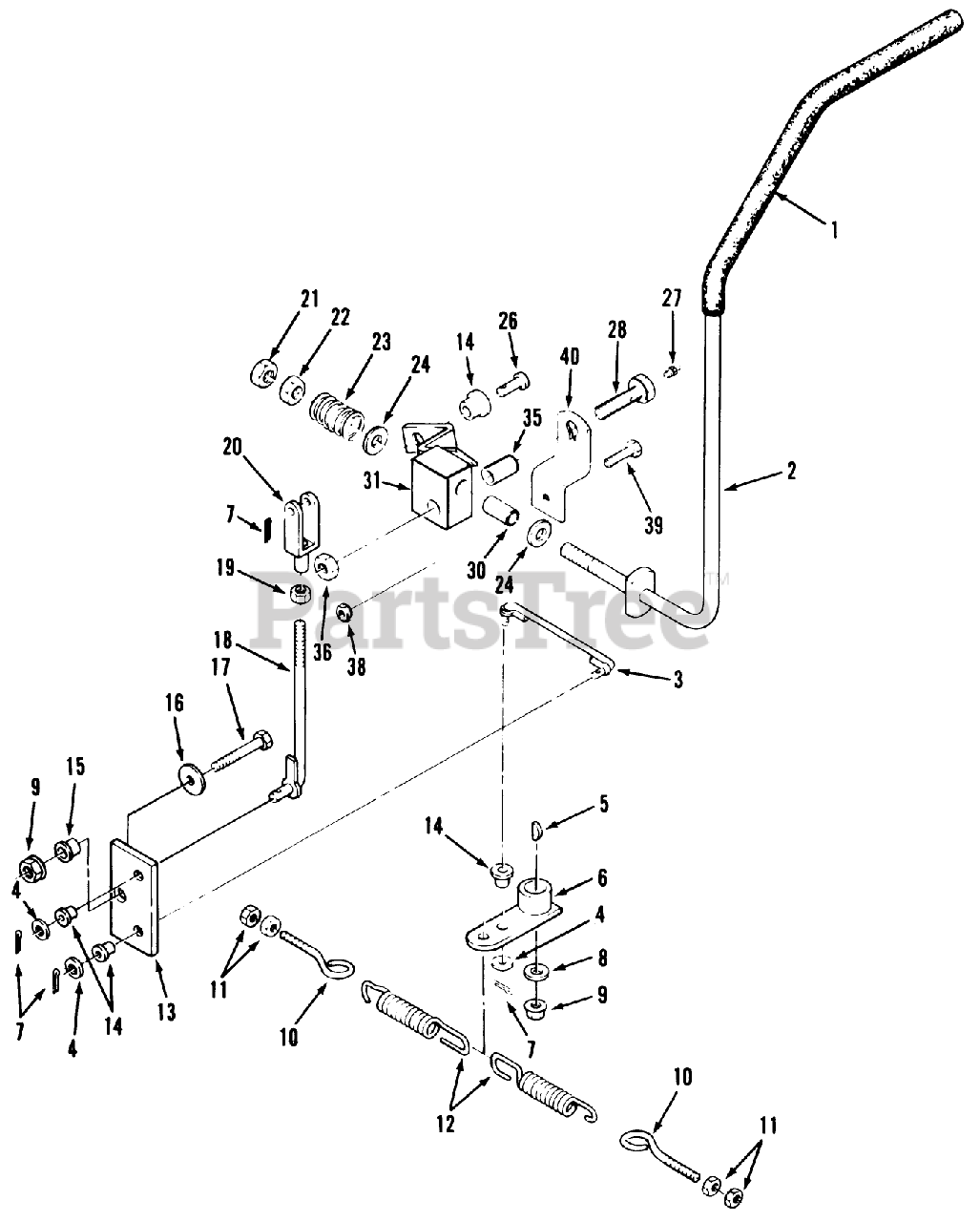

TRANSMISSION DRIVE LINKAGE Parts Diagram

  • Title

1

Toro 113563

Grip
(Superseded to 92-6519)

$

$

Not available

2

Toro 117651

Steering Lever LH
(Superseded to 117561)

$

$

Not available

Toro 117560

WLDMT-STEER LVR RH B

$

$

Not available

3

Toro 78-7560

ROD-STEERING R.H.

$168.99

$

Usually ships in 3-6 days

0

Toro 78-7570

ROD-STEERING L.H.

$

$

Not available

4

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

5

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

6

Toro 113680

Arm-Hydro Control
(Superseded to 113680-03)

$

$

Not available

7

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

8

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

9

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10

Toro 113688

EYE BOLT 1/4-20

$

$

Not available

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 113081

SPG-NEUTRAL 20217-35

$14.99

$

In Stock, only 3 left!

0

13

Toro 79-1260

PLATE-STEERING PI B
(Superseded to 79-1260-03)

$

$

Not available

14

Toro 113509

BUSHING-FLANGED

$10.99

$

In Stock, only 1 left!

0

15

Toro 104859

SPACER-LIFT LINK

$53.99

$

Usually ships in 3-6 days

0

16

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

18

Toro 113570

ASS'Y-ROD

$240.99

$

Usually ships in 3-6 days

0

19

Toro 915001

Nut-Lock
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

20

Toro 8812

CLEVIS

$51.99

$

Usually ships in 3-6 days

0

21

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 20+

0

22

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

23

Toro 113632

SPRING

$

$

Not available

24

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

26

Toro 932957

Pin-Clevis
(Superseded to 283-61)

$2.49

$

In Stock, only 2 left!

0

27

Toro 1030

Zerk

$

$

Not available

28

Toro 116460

Shoulder Bolt 1/2-13 x 4-1/2 (Includes item 27)

$93.99

$

Usually ships in 3-6 days

0

30

Toro 113675

BUSHING-STR LVR PVT

$

$

Not available

31

Toro 114661

Steering Lever LH
(Superseded to 114661-03)

$

$

Not available

Toro 114662

Steering Lever RH
(Superseded to 114662-03)

$

$

Not available

35

Toro 115295

BUSHING

$8.99

$

Usually ships in 3-6 days

0

36

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

38

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

39

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

40

Toro 79-0560

STRAP-PIVOT B

$

$

Not available
