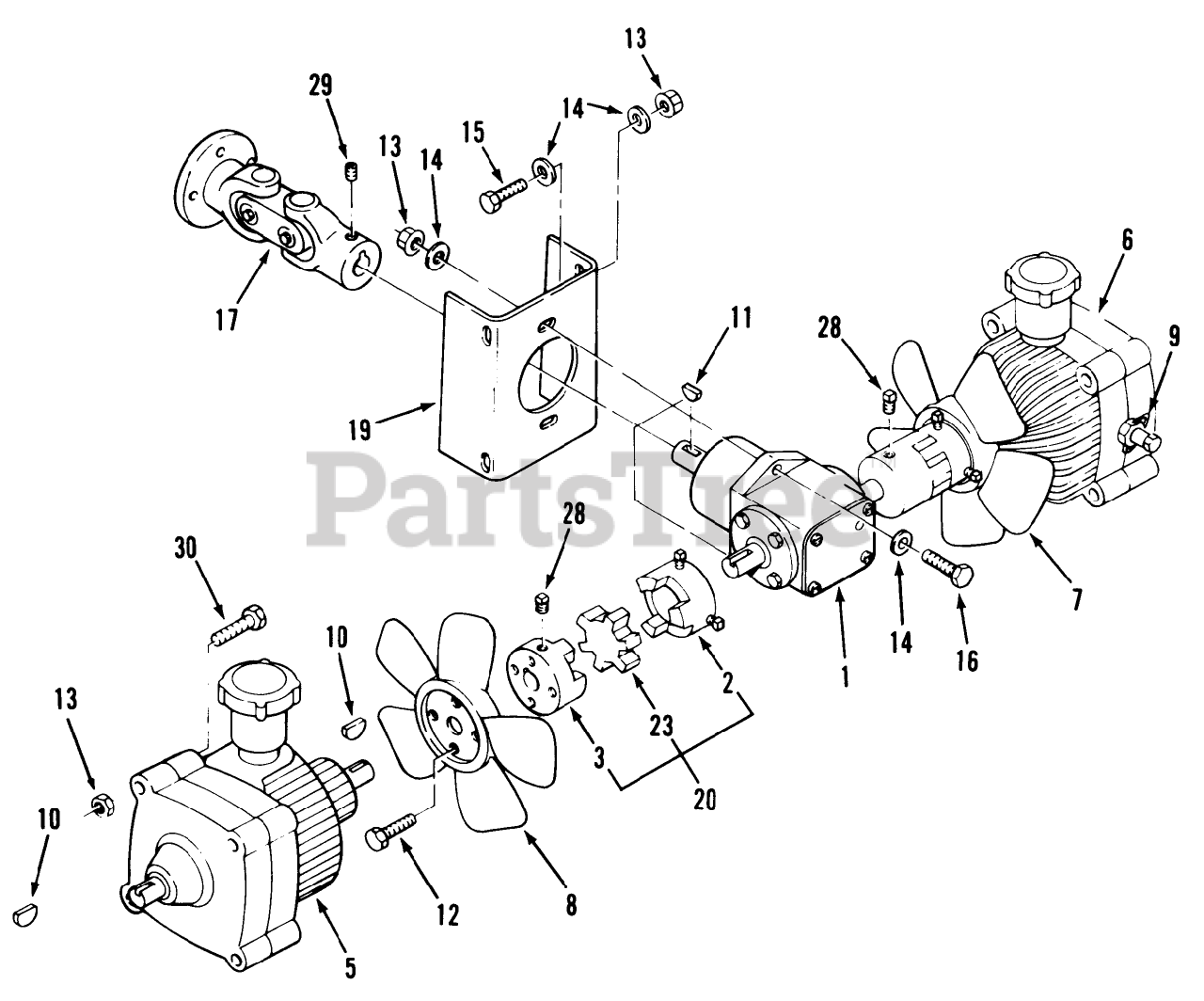

R1-24OE02 (724-Z) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) TRANSMISSION DRIVE Parts Diagram

Garden Tractor

TRANSMISSION DRIVE Parts Diagram

  • Title

1

Toro 113640

GEAR BOX-T

$

$

Not available

2

Toro 115857

COUPLING-KEYED

$198.99

$

In Stock, only 1 left!

0

3

Toro 115856

COUPLING-KEYED

$143.99

$

Usually ships in 3-6 days

0

5

Toro 113568

TRANS-HYDRO CCW.

$4629.99

$

Usually ships in 3-6 days

0

6

Toro 113569

TRANS-HYDRO CW

$4674.99

$

Usually ships in 3-6 days

0

7

Toro 113651

Fan-LH, Clockwise
(Superseded to 92-1799)

$

$

Not available

8

Toro 113650

BLADE-FAN R.H.

$

$

Not available

9

Toro 115960

CLIP-DUMP VALVE

$

$

Not available

10

Toro 937218

KEY-HIPRO

$3.99

$

Usually ships in 3-6 days

0

11

Toro 937225

KEY-HI-PRO

$4.99

$

Usually ships in 3-6 days

0

12

Toro 926466

Screw
(Superseded to 9264664)

$

$

Not available

13

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

15

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

16

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

17

Toro 113578

U-JOINT ASSY W/FLANGE

$1333.99

$

Usually ships in 3-6 days

0

19

Toro 117295

BRACKET-GEAR BOX B

$57.99

$

Usually ships in 3-6 days

0

20

Toro 113679

Coupler Complete (Includes 2, 3 & 23)
(Superseded to 99-5854)

$

$

Not available

23

Toro 113663

SPIDER-COUPLING

$55.99

$

Usually ships in 3-6 days

0

28

Toro 909544

Screw-Sq. Hd. Set
(Superseded to 3242-6)

$4.49

$

Usually ships in 3-6 days

0

29

Toro 909878

Setscrew 3/8-16 x 1/2
(Superseded to 3247-2)

$4.49

$

Usually ships in 3-6 days

0

30

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0
