R1-24OE02 (724-Z) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) STARTER Parts Diagram

Garden Tractor

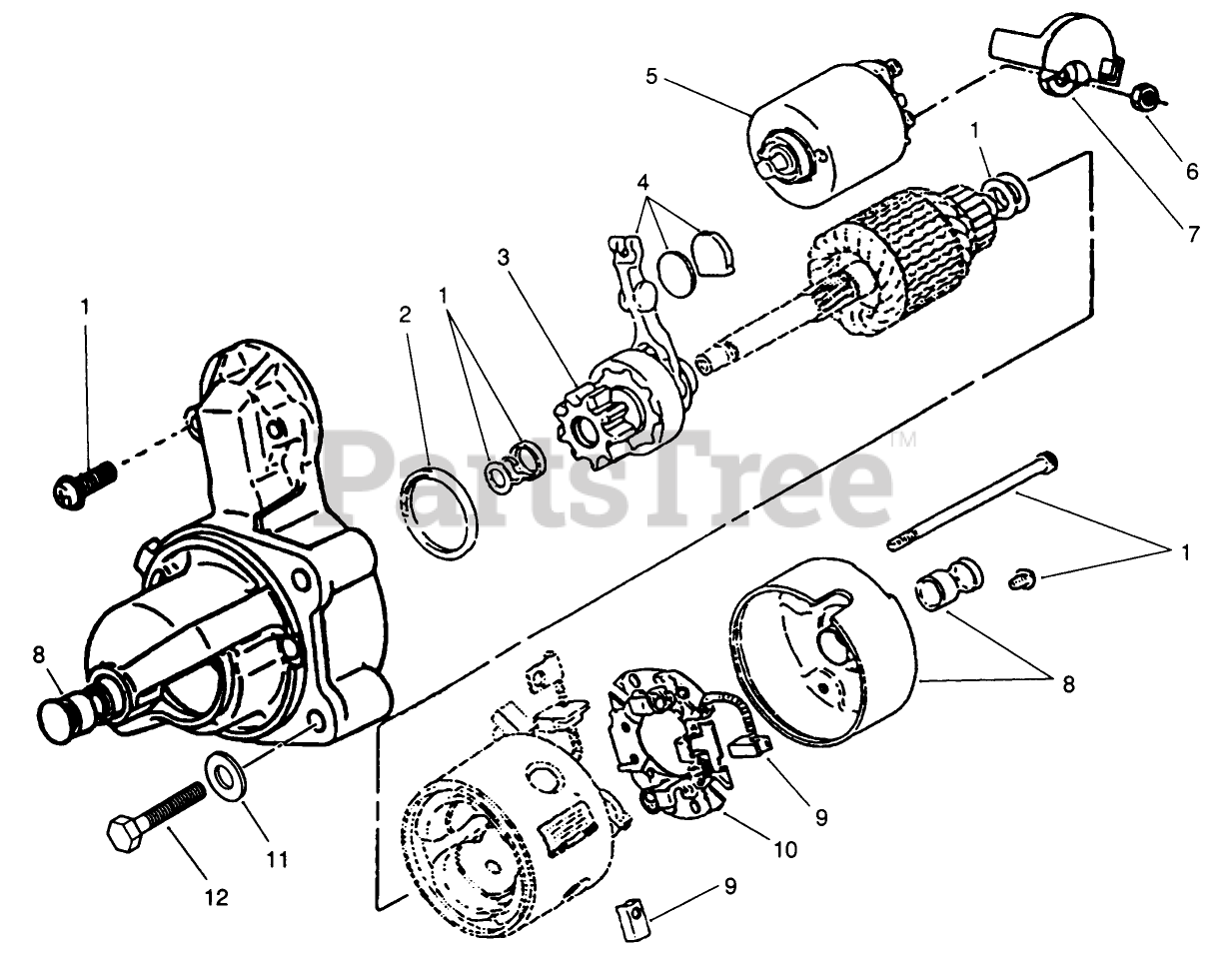

STARTER Parts Diagram

  • Title

1

Toro 62-2760

Hardware Kit (Starter No. 191-1808-04)(Includes Solenoid Screws, Brush Holder Screws, Thru Bolts, Armature Shims, Pinion Stop Collar and Pinion Retaining Rings)

$

$

Not available

Toro NN10885

Hardware Kit (Starter No. 191-1949-04) (Includes Solenoid Screws, Brush Holder Screws, Thru Bolts, Armature Shims, Pinion Stop Collar and Pinion Retaining Rings)
(Superseded to 62-2760)

$

$

Not available

2

Toro 72-3950

Dust Seal
(Superseded to NN10886)

$

$

Not available

Toro NN10886

DUST-SEAL KIT

$

$

Not available

3

Toro 72-3940

CLUTCH STARTER ASSEMBLY

$

$

Not available

Toro NN10884

Kit-Clutch, Starter
(Superseded to 72-3940)

$

$

Not available

4

Toro 62-2770

LEVER

$

$

Not available

5

Toro 72-3930

STARTER SOLENOID KIT

$

$

Not available

Toro NN10887

Solenoid-Starte
(Superseded to 72-3930)

$

$

Not available

6

Toro 82-1730

Nut-Hex.
(Superseded to 92-5935)

$

$

Not available

7

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

8

Toro NN10262

Bushing Kit (Starter No. 191-1808-04) (Includes Rear Cap, Front & Rear Bushings)
(Superseded to 62-2730)

$

$

Not available

Toro 62-2730

Bushing Kit (Starter No. 191-1949-04) (Includes Rear Cap, Front & Rear Bushings)

$

$

Not available

9

Toro 62-2740

BRUSH KIT

$

$

Not available

Toro NN10882

Brush Kit (Starter No. 191-1949-04) (Includes Brusher & Brush Holder Item #10)
(Superseded to 62-2740)

$

$

Not available

10

Toro 62-2750

Brush Mounting Kit
(Superseded to 62-2740)

$

$

Not available

11

Toro 57-9770

WASHER

$

$

Not available

12

Toro 82-1420

Screw-Hex Hd
(Superseded to 322-22)

$0.99

$

In Stock, Qty 20+

0

Toro NN10929

KIT-MTG BRKT

$528.99

$

Usually ships in 3-6 days

0

Toro 71-6040

STARTER
(Superseded to 112-7023)

$441.99

$

Usually ships in 3-6 days

0

Toro 62-2710

STARTER

$

$

Not available
