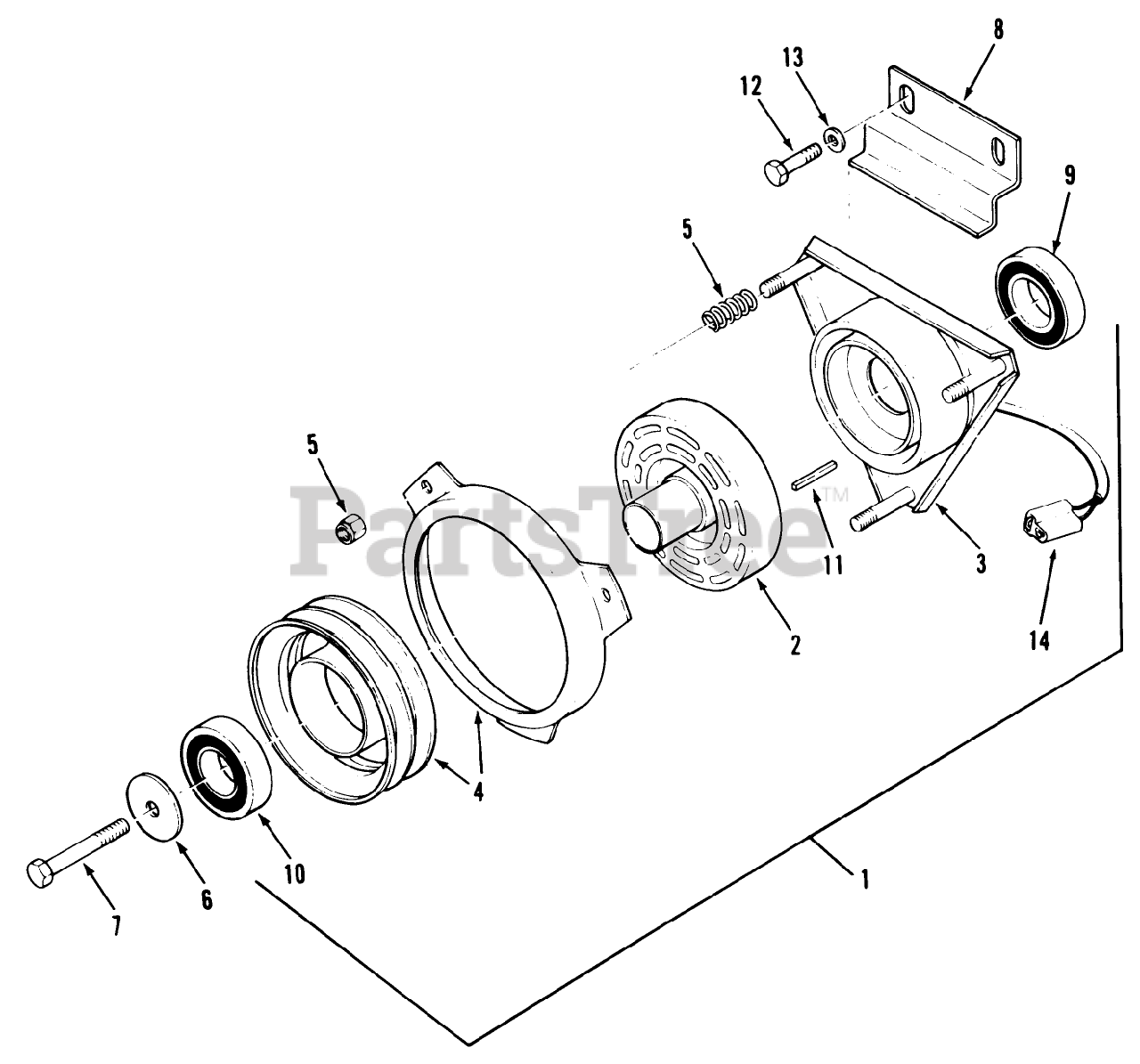

R1-24OE02 (724-Z) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) PTO ELECTRIC CLUTCH Parts Diagram

Garden Tractor

PTO ELECTRIC CLUTCH Parts Diagram

  • Title
1

Toro 113997

Electric Clutch Complete (Includes items 2, 3, 4, 5, 9, 10 & 14)
(Superseded to 93-3160)

$

$

Not available

2

Toro 115137

Rotor
(Superseded to 93-3176)

$1855.99

$

Usually ships in 3-6 days

0

3

Toro 115134

Field (Includes item 9)

$1249.99

$

Usually ships in 3-6 days

0

4

Toro 115136

Armature and Pulley (Includes item 10)
(Superseded to 93-3176)

$1855.99

$

Usually ships in 3-6 days

0

5

Toro 115135

Spring & Nuts
(Superseded to 113823)

$

$

Not available

6

Toro 113602

RETAINER-BEARING

$

$

Not available

7

Toro 908184

Bolt 3/8-24 x -1/4
(Superseded to 3-2115)

$

$

Not available

8

Toro 113674

BRACKET-CLUTCH B

$

$

Not available

9

Toro 115170

BEARING-FIELD ASS'Y

$

$

Not available

10

Toro 115171

Bearing
(Superseded to 114064)

$78.99

$

In Stock, only 2 left!

0

11

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

12

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

13

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

14

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0
