R1-24OE02 (724-Z) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) PISTON AND ROD Parts Diagram

Garden Tractor

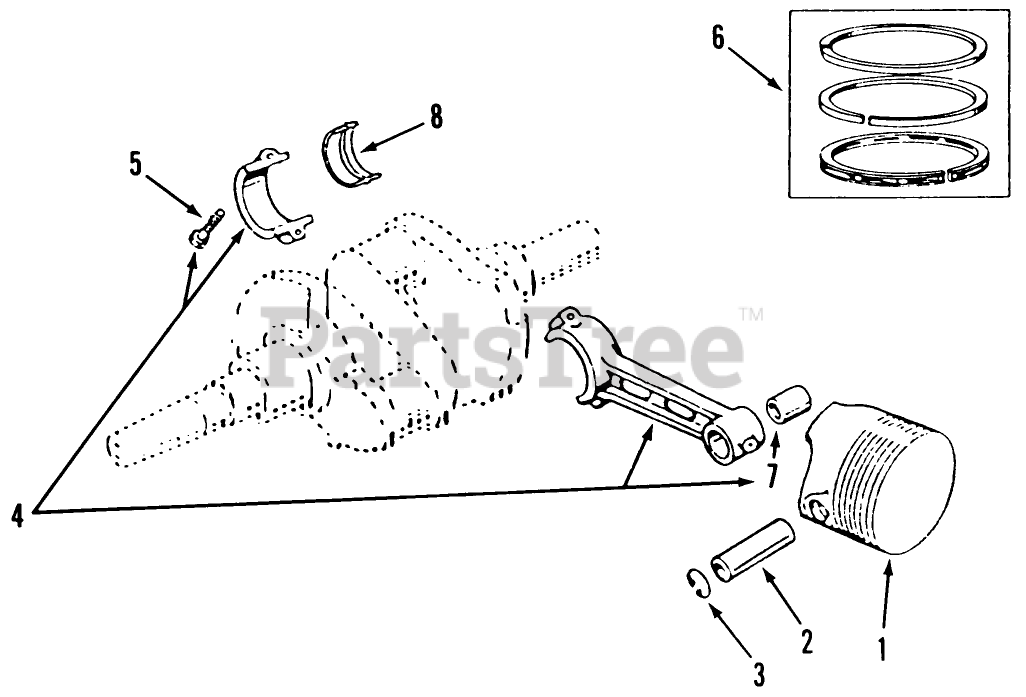

PISTON AND ROD Parts Diagram

  • Title

1

Piston and Pin (includes Pin and Retaining Ring)

$

$

Not available

Toro NN10094

Standard
(Superseded to 92-9804)

$592.99

$

Usually ships in 3-6 days

0

Toro NN10095

PISTON .005" OVERSZ

$

$

Not available

Toro NN10096

.010 Oversize
(Superseded to 92-0935)

$

$

Not available

Toro NN10097

.020 Oversize
(Superseded to 92-0936)

$

$

Not available

Toro NN10098

.030 Oversize
(Superseded to 92-0937)

$

$

Not available

2

Toro 82-0290

PIN - PISTON

$107.99

$

Usually ships in 3-6 days

0

3

Toro NN10344

Retaining Ring
(Superseded to 82-1200)

$

$

Not available

4

Toro 82-0470

Connecting Rod (Includes Bolts)

$

$

Not available

5

Toro 82-1470

BOLT-PLACE

$

$

Not available

6

Piston Ring Set:

$

$

Not available

Toro NN10107

Standard
(Superseded to 82-0360)

$

$

Not available

Toro NN10108

RING SET .005"

$50.10

$

In Stock, only 1 left!

0

Toro NN10109

.010 Oversize
(Superseded to 82-0370)

$

$

Not available

Toro NN10110

.020 Oversize
(Superseded to 82-0380)

$

$

Not available

Toro NN10111

.030 Oversize
(Superseded to 82-0390)

$

$

Not available

7

Toro 82-0410

BUSHING-PISTON PIN

$

$

Not available

8

Connecting Rod Bearing Half:

$

$

Not available

Toro 82-0420

BEARING

$

$

Not available

Toro 82-0430

BEARING

$

$

Not available

Toro 82-0440

BEARING

$

$

Not available

Toro 82-0450

BEARING

$

$

Not available

Toro 82-0460

BEARING

$

$

Not available
