R1-24OE02 (724-Z) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) OIL SYSTEM Parts Diagram

Garden Tractor

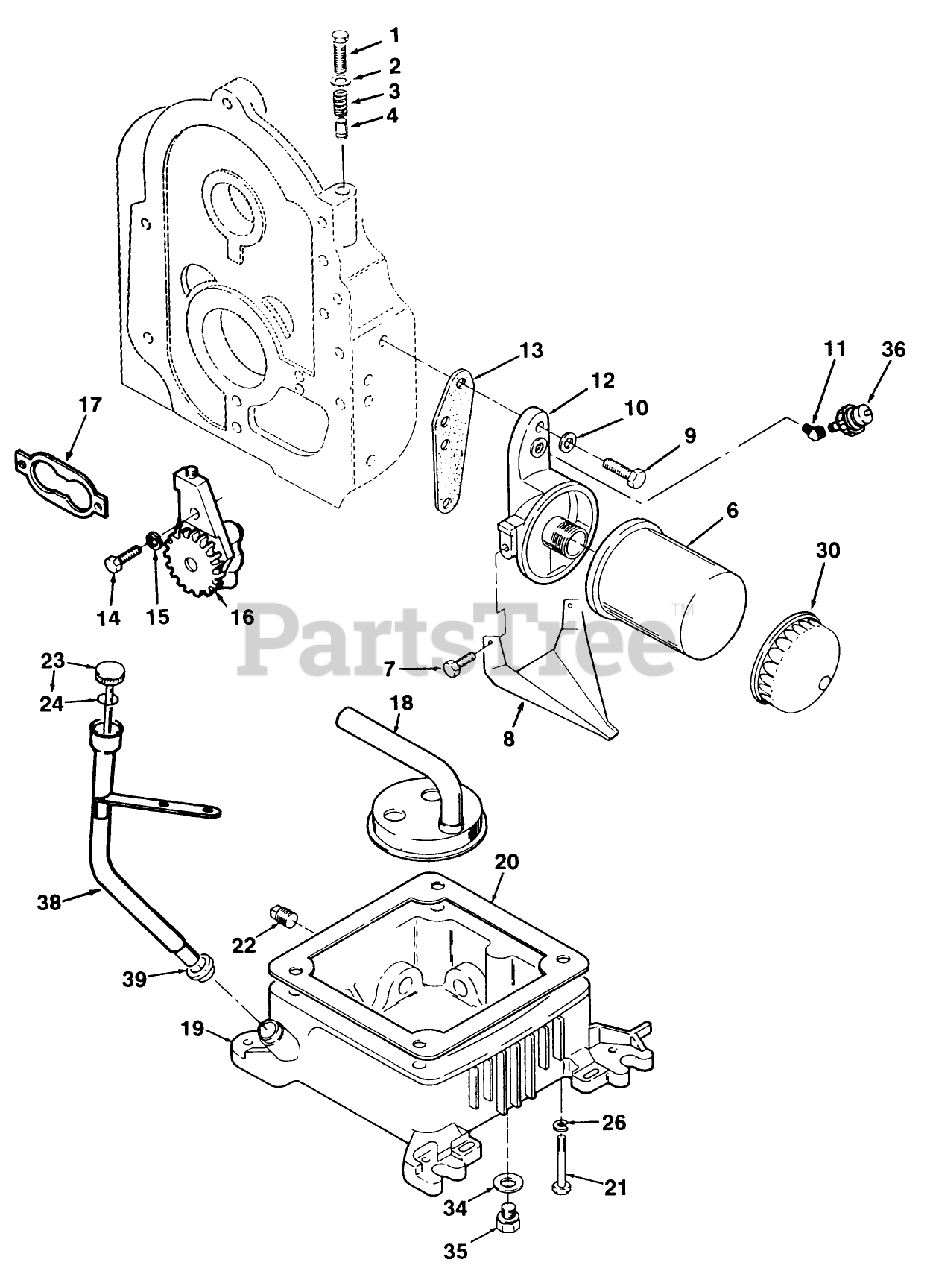

OIL SYSTEM Parts Diagram

  • Title
1

Toro NN10383

Bolt
(Superseded to 59-0910)

$

$

Not available

2

Toro 57-9760

WASHER

$

$

Not available

3

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

4

Toro NN10135

Piunger
(Superseded to 57-8470)

$

$

Not available

6

Toro NN10143

OIL FILTER
(Superseded to 137-5012)

$20.99

$

In Stock, only 2 left!

0

7

Toro 82-1510

SCREW-HH

$

$

Not available

8

Toro 82-0510

DRAIN-OIL FILTER

$

$

Not available

9

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available

10

Toro 57-9750

WASHER

$

$

Not available

11

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

12

Toro 82-0500

ADAPTER-OIL FILTER

$

$

Not available

13

Toro 82-0520

GASKET-OIL FILTER ADAPT

$

$

Not available

14

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

15

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

16

Toro NN10136

Oil Pump
(Superseded to 57-8480)

$

$

Not available

17

Toro NN10134

Oil Pump Gasket Kit
(Superseded to 57-8460)

$

$

Not available

18

Toro 82-0490

CUP-INTAKE, OIL PUMP

$

$

Not available

19

Toro 82-0030

Oil Base (Includes all plugs and plug gasket)

$

$

Not available

20

Toro 57-8090

GASKET

$37.99

$

Usually ships in 3-6 days

0

21

Toro 82-1440

Screw
(Superseded to 323-25)

$14.99

$

Usually ships in 3-6 days

0

22

Toro 82-1130

PLUG - SQUARE HEAD

$

$

Not available

23

Toro 82-0590

Oil Fill Cap and Indicator (Includes "O" Ring)
(Superseded to 114-4138)

$82.99

$

Usually ships in 3-6 days

0

24

Toro 57-9610

SEAL 0-RING

$7.99

$

In Stock, only 1 left!

0

26

Toro 82-1310

WASHER-FLAT

$

$

Not available

30

Toro 114498

Oil Filter Wrench
(Superseded to NN10775)

$

$

Not available

34

Toro 57-8070

GASKET

$

$

Not available

35

Toro 57-8080

PLUG-OIL

$

$

Not available

36

Toro NN10520

OIL-PRESSURE SWITCH

$

$

Not available

38

Toro 82-0580

Oil Fill Tube
(Superseded to 92-0947)

$

$

Not available

39

Toro NN10609

Seal
(Superseded to 93-9816)

$

$

Not available
