R1-24OE02 (724-Z) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

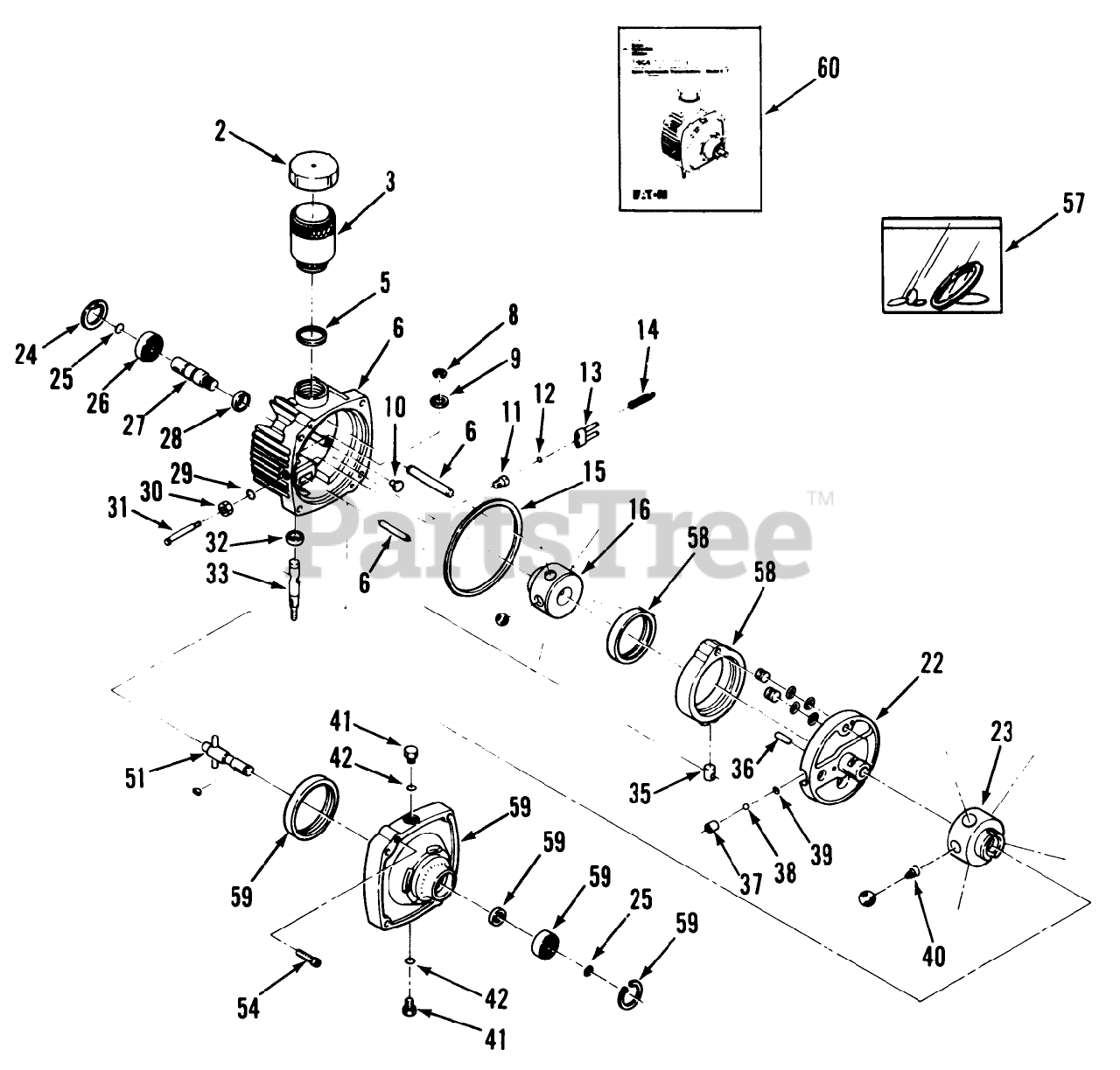

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

2

Toro 112589

RESERVOIR COVER

$

$

Not available

3

Toro 112590

BODY-RESERVOIR

$77.99

$

Usually ships in 3-6 days

0

5

Toro 112591

Square Cut Seal Ring (Included in item 57)

$4.49

$

Usually ships in 3-6 days

0

6

Toro 112625

Cover Service Kit (Includes Pivot Pin Dowel, Control Shaft Dowel, & Items 8, 9, 28, 32 & 33)

$

$

Not available

8

Toro 112593

External Retaining Ring (Included in item 6)

$

$

Not available

9

Toro 112594

Control Shaft Washer (Included in item 6)

$

$

Not available

10

Toro 112595

Button
(Superseded to 56-2880)

$

$

Not available

11

Toro 112626

"O" Ring Fitting Guide Sub-assembly (Includes item 12)

$

$

Not available

12

Toro 112627

Dump Valve Bracket "O" Ring (Included in item 11 & 57)

$

$

Not available

13

Toro 112628

SUB-ASS'Y BRACKET

$

$

Not available

14

Toro 112629

SPRING-VALVE

$

$

Not available

15

Toro 112596

Square Cut Seal Ring (Included in item 57)

$

$

Not available

16

Toro 112597

SUB-ASS'Y PUMP ROTOR

$

$

Not available

22

Toro 112630

Pintle Sub-assembly-Used in CCW rotation trans. Model No. 00700-023 (Includes Piston, Backup Ring, "O" Ring, & Items 36, 37, 38 & 39)

$

$

Not available

23

Toro 112599

SUB-ASS'Y MOTOR

$

$

Not available

24

Toro 112600

Retaining Ring
(Superseded to 56-3290)

$

$

Not available

25

Toro 112601

SNAP-RING

$

$

Not available

26

Toro 112602

BEARING-BALL (INPUT)

$66.99

$

Usually ships in 3-6 days

0

27

Toro 112603

SHAFT-INPUT

$

$

Not available

28

Toro 112604

Oil Seal (Included in item 6 & 57)
(Superseded to 56-2820)

$42.99

$

In Stock, only 2 left!

0

29

Toro 112631

Dump Valve "O" Ring (Included in item 57)

$

$

Not available

30

Toro 112632

Nut-Gasket Sub-assembly (Included in item 57)

$

$

Not available

31

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$141.99

$

Usually ships in 3-6 days

0

32

Toro 112605

Oil Seal (Included in item 6 & 57)

$18.99

$

Usually ships in 3-6 days

0

33

Toro 112606

Control Shaft Kit (Included in item 6)

$

$

Not available

35

Toro 112607

INSERT-CAM RING

$

$

Not available

36

Toro 112608

Coil Pin (Included in item 22)
(Superseded to 56-2980)

$

$

Not available

37

Toro 112609

Check Valve Body (Included in item 22)
(Superseded to 56-3020)

$

$

Not available

38

Toro 112610

Grade 200 Ball 5/16 O.D. (Included in item 22)
(Superseded to 56-3010)

$

$

Not available

39

Toro 112611

Retaining Ring (Included in item 22)
(Superseded to 56-3000)

$4.49

$

In Stock, only 2 left!

0

40

Toro 112612

Piston Spring (Included in item 23)

$

$

Not available

41

Toro 112613

"O" Ring Plug Sub-assembly (Includes item 42)
(Superseded to 56-3250)

$

$

Not available

42

Toro 112614

Tube Fitting "O" Ring (Included in item 41 & 57)
(Superseded to 56-3260)

$

$

Not available

51

Toro 112615

Output Shaft Sub-assembly (Included in item 59)

$

$

Not available

54

Toro 112616

Screw
(Superseded to 56-3100)

$

$

Not available

57

Toro 112618

Overhaul Sealing Kit (Includes Dampening Piston "O" Rings, Dampening Piston Backup Rings, Output Shaft Oil Seal, Plug "O" Ring & items 5, 11 w/12, 15, 28, 29, 30, 32 & 42)

$224.99

$

Usually ships in 3-6 days

0

58

Toro 112619

Cam Ring Sub-assembly (Includes Pump Race & Cam Ring)

$

$

Not available

59

Toro 112620

Body Sub-assembly (Includes Body, Oil Seal, Output Ball Bearing, Snap Ring, Retaining Ring, Motor Race & Item 51)

$1310.99

$

Usually ships in 3-6 days

0

60

Toro 740315

Hydrostatic Transmission Repair Manual

$

$

Currently unavailable
