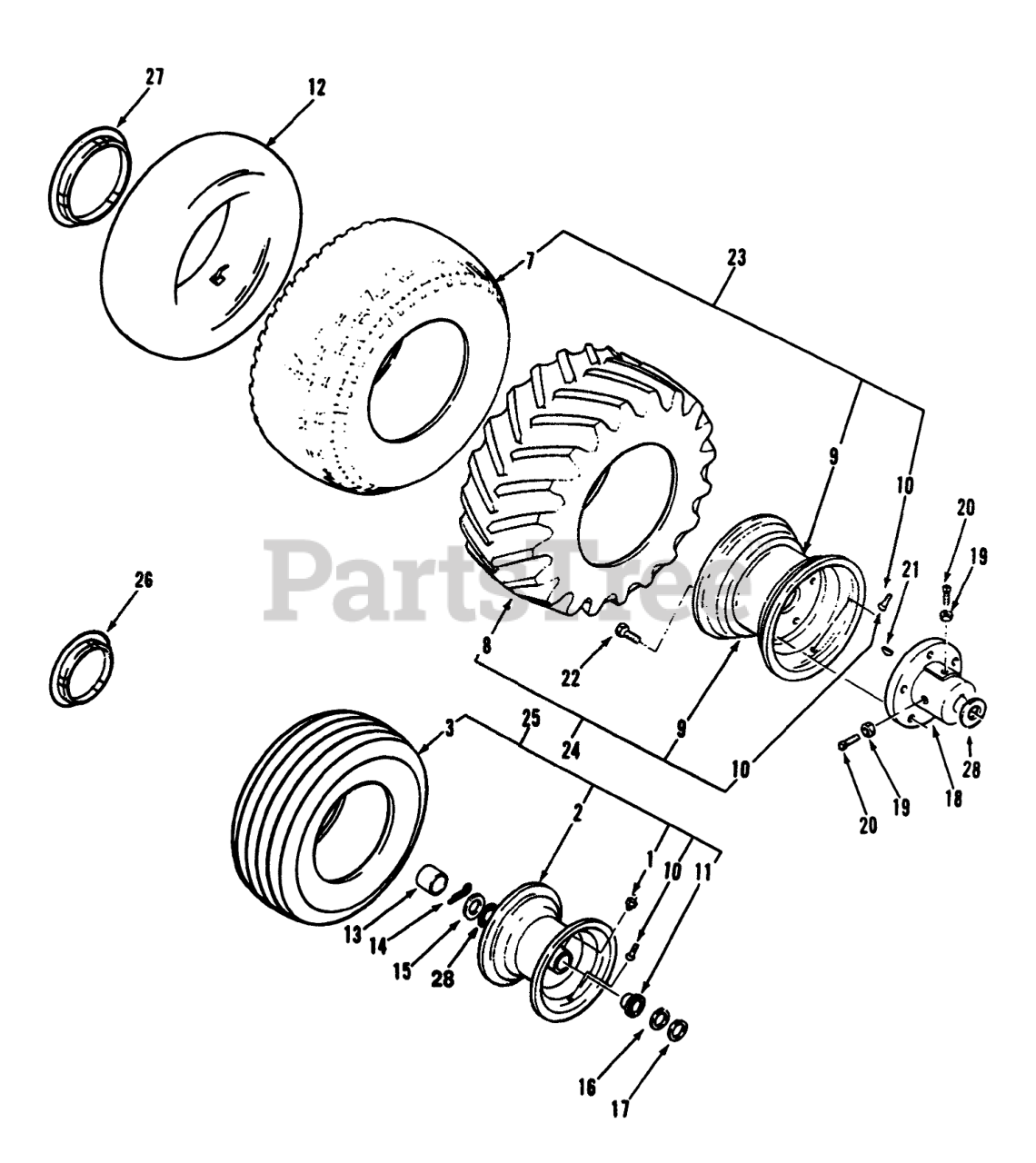

R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) WHEELS AND TIRES Parts Diagram

Garden Tractor

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 78-1660

Rim-Front
(Superseded to 93-9801)

$257.99

$

Usually ships in 3-6 days

0

3

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

$

$

Not available

7

Toro 116744

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

8

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

9

Toro 110677

WHEEL

$

$

Not available

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

11

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

12

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$

$

Not available

Toro 100291

Tube Cleat Tires
(Superseded to 231-90)

Note: Not illustrated

$

$

Not available

13

Toro 111951

HUBCAP

$16.99

$

In Stock, only 2 left!

0

14

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

15

Toro 111952

WASHER WHEEL

$7.49

$

In Stock, Qty 5

0

16

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

18

Toro 105763

Hub Rear
(Superseded to 105763-03)

$191.99

$

In Stock, only 1 left!

0

19

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

20

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

21

Toro 937108

KEY-WOODRUFF

$5.99

$

In Stock, only 3 left!

0

22

Toro 1004

Lug Nut

$

$

Not available

23

Toro 116743

ASM-Wheel& Tire

$

$

Not available

24

Toro 110934

ASSY WHEEL & TIRE

$

$

Not available

Toro 110933

ASSY WHEEL & TIRE

$

$

Not available

25

Toro 78-1650

Tire Assy-Front Wheel

$

$

Not available

26

Toro 114427

8"-HUB CAP LOGO

$

$

Not available

27

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

28

Toro 106826

WASHER-THRUST

$14.99

$

In Stock, only 1 left!

0
