R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

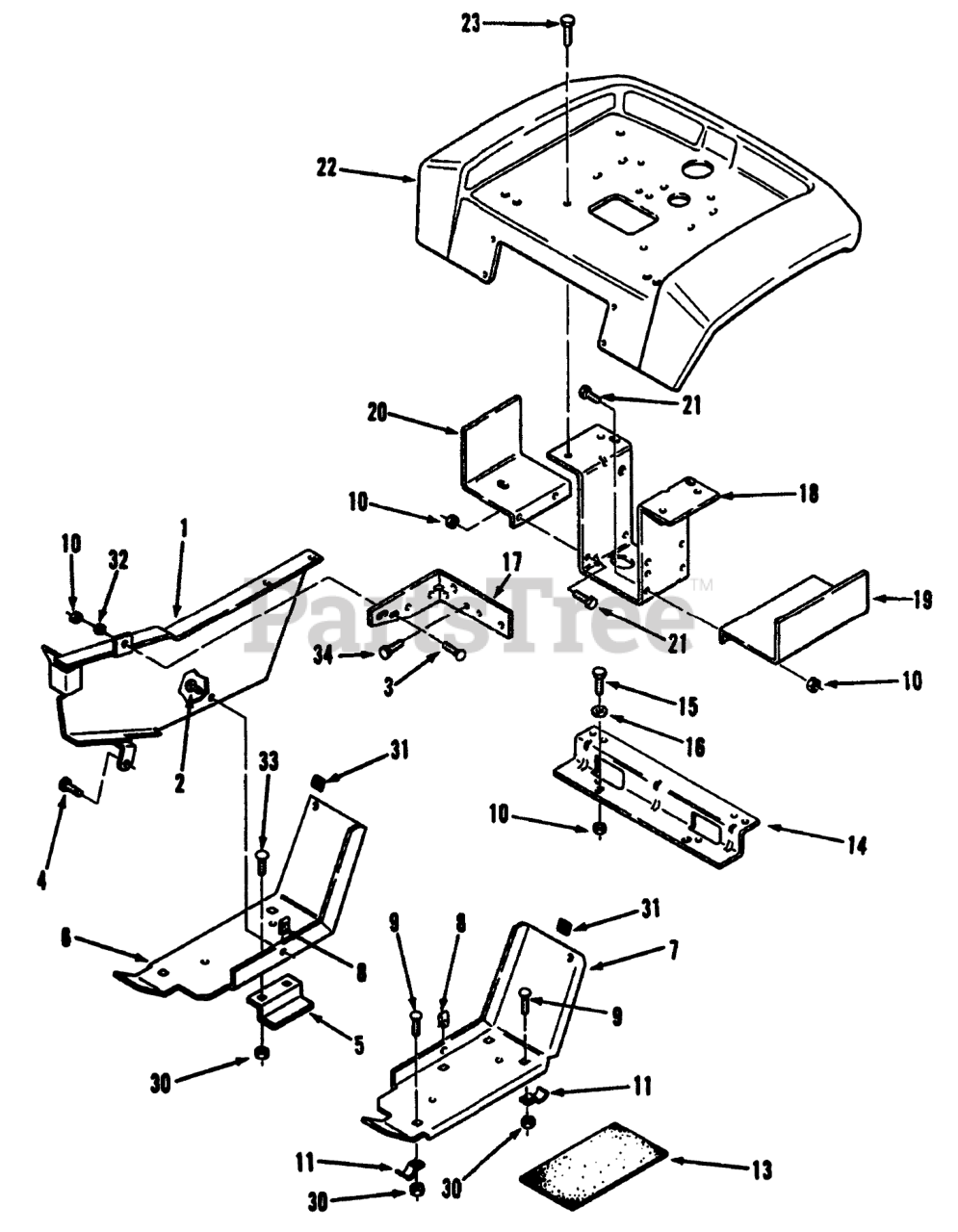

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 121120

Belt Guard
(Superseded to 92-1527)

$

$

Not available

2

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

3

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 926694

SCREW

$

$

Not available

5

Toro 106352

GUID-LOWER BLTR
(Superseded to 106352-01)

$21.99

$

Usually ships in 3-6 days

0

6

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

7

Toro 106223

FOOTREST LH R

$

$

Not available

8

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

9

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 7456

BRACKET

$

$

Not available

13

Toro 110636

PAD FOOTREST

$

$

Not available

14

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$65.99

$

In Stock, only 1 left!

0

15

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 109554

BRACKET-BELTB

$

$

Not available

18

Toro 79-4990

Bracket-Fender
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

19

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

20

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 110960

Fender
(Superseded to 94-3722-01)

$

$

Not available

23

Toro 926694

SCREW

$

$

Not available

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

32

Toro 108457

NUT-PUSH

$

$

Not available

33

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

34

Toro 910794

BOLT

$

$

Not available
