R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) INTAKE MANIFOLD Parts Diagram

Garden Tractor

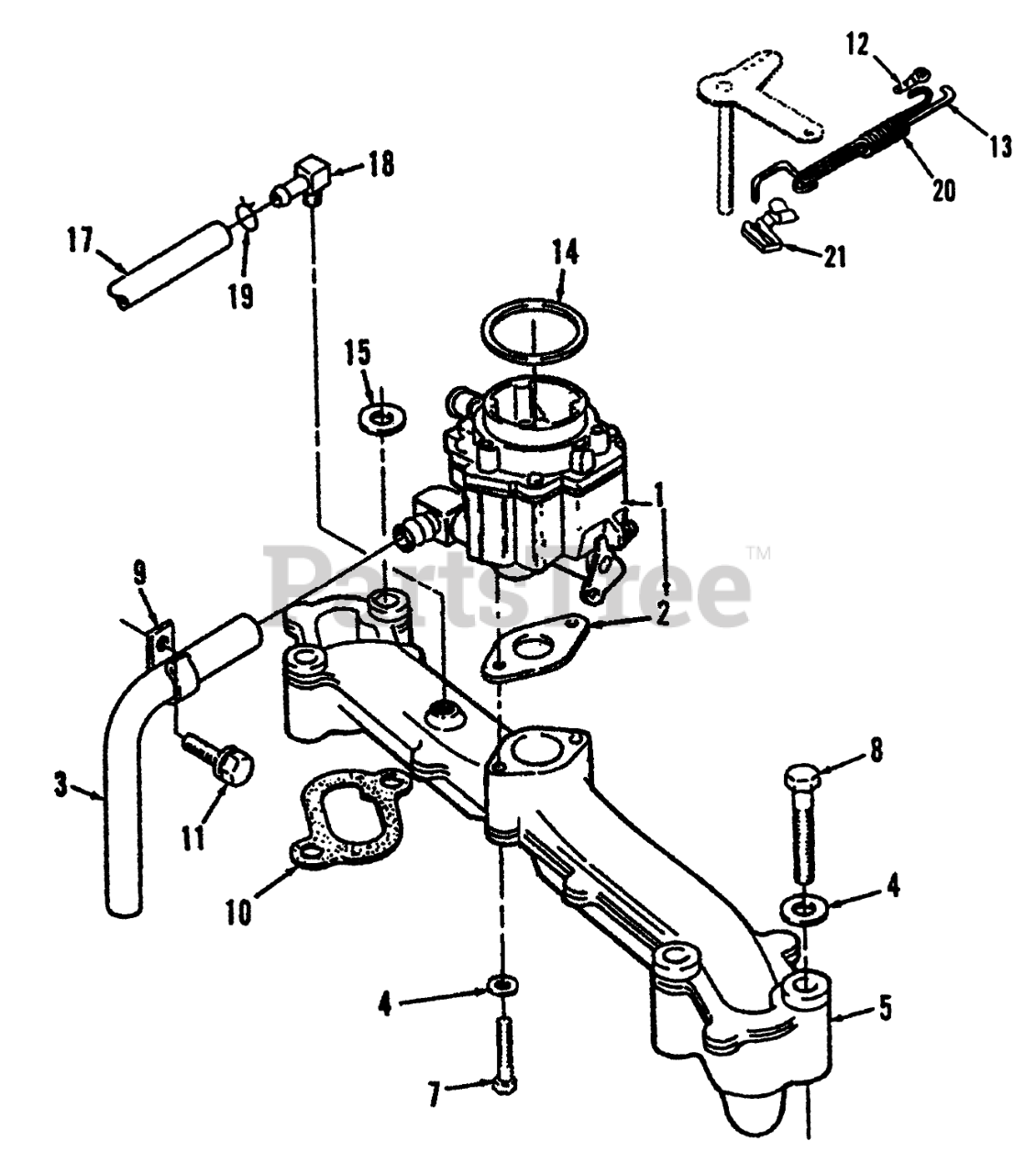

INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro NN10855

Carburetor-Complete (Includes Mounting Gasket, Elbow, & 0-Ring) (See Separate Page for Components)
(Superseded to NN10204)

$

$

Not available

2

Toro 57-9200

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

4

Toro 82-1350

WASHER-FLAT

$

$

Not available

5

Toro NN10242

Intake Manifold
(Superseded to NN10441)

$

$

Not available

7

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

8

Toro NN10375

HHCS

$

$

Not available

9

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

10

Toro 71-5980

GASKET

$14.99

$

In Stock, only 3 left!

0

11

Toro 82-1540

SCREW-HWH

$

$

Not available

12

Toro NN10342

Retaining Clip
(Superseded to 57-9700)

$5.49

$

In Stock, only 1 left!

0

13

Toro NN10227

Governor Control Rod
(Superseded to 57-9160)

$

$

Not available

14

Toro 57-9620

SEAL

$

$

Not available

15

Toro NN10362

FLAT WASHER

$

$

Not available

16

Toro NN10362

FLAT WASHER

$

$

Not available

17

Toro 82-1120

HOSE-RUBBER, BREATHER

$

$

Not available

18

Toro 82-1070

FITTING-BARB

$

$

Not available

19

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

Toro 82-1090

CLAMP-HOSE, BREATHER

$

$

Not available

20

Toro NN10877

Spring-Governor Rod
(Superseded to NN10928)

$

$

Not available

21

Toro NN10346

Clip-Retaining
(Superseded to 57-9730)

$19.99

$

Usually ships in 3-6 days

0
