R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

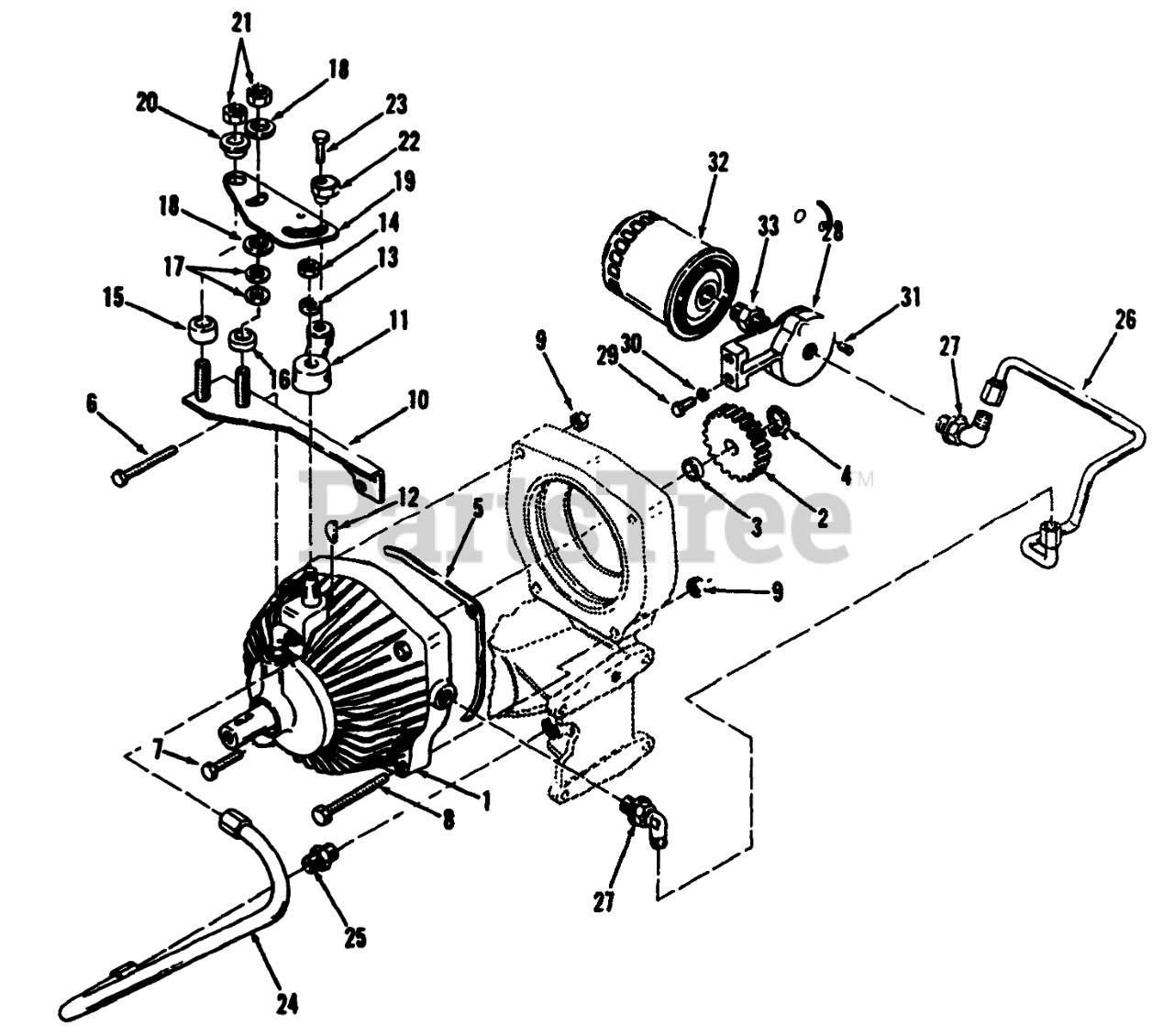

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title
1

Toro 108368

Pump & Motor
(Superseded to 92-9848)

$

$

Not available

2

Toro 109751

GEAR 20 TEETH DRIVE

$

$

Not available

3

Toro 108366

SPACER GEAR

$

$

Not available

4

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

5

Toro 108319

GASKET

$10.99

$

In Stock, only 2 left!

0

6

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

7

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

8

Toro 323-26

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

10

Toro 108329

ASSY-PLATE B

$

$

Not available

11

Toro 108325

ARM-SPEED CONTROLB
(Superseded to 108325-03)

$77.99

$

Usually ships in 3-6 days

0

12

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3296-26

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 108326

SPACER-PIVOT

$22.99

$

Usually ships in 3-6 days

0

16

Toro 108327

SPACER-FRICTION

$2.99

$

Usually ships in 3-6 days

0

17

Toro 100365

WASHER-SPRING DISC

$

$

Not available

18

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

19

Toro 108333

CAM-SPEED CONTROL (NS)

$43.99

$

In Stock, only 1 left!

0

20

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

21

$6.49

$

In Stock, only 2 left!

0

22

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 111217

ASSY-TUBE SUCTION

$

$

Not available

25

Toro 108364

FITTING-TUBE

$

$

Not available

26

Toro 109377

ASM-TUBE FILTER OUTL

$

$

Not available

27

Toro 108365

ELBOW
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

28

Toro 108323

BASE-FILTER

$245.99

$

Usually ships in 3-6 days

0

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

$18.99

$

Usually ships in 3-6 days

0

32

Toro 108335

Filter-Oil
(Superseded to 79-5270)

$21.99

$

In Stock, only 1 left!

0

33

Toro 5991

FITTING

$

$

Not available
