R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) HYDRAULIC SYSTEM Parts Diagram

Garden Tractor

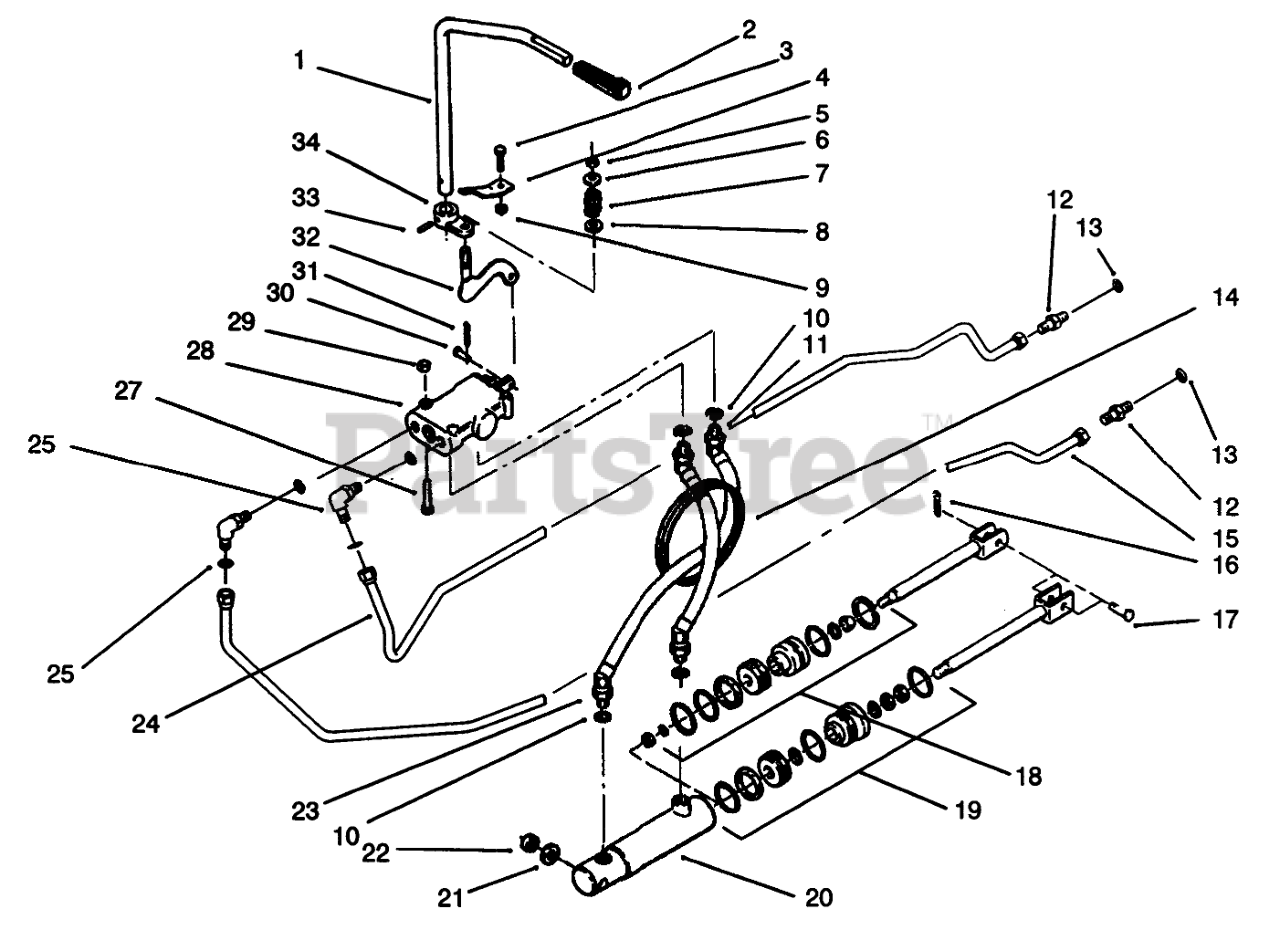

HYDRAULIC SYSTEM Parts Diagram

  • Title
1

Toro 117328

ROD-LIFT CONTROL

$

$

Not available

2

Toro 116634

KNOB-HYDRAULIC LIFT
(Superseded to 94-6694)

$

$

Not available

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 116305

BRACKET-CONTROL R B

$6.99

$

Usually ships in 3-6 days

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

7

Toro 104841

SPRING

$2.49

$

In Stock, only 3 left!

0

8

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 973310

O RING

$4.99

$

In Stock, only 2 left!

0

11

Toro 110125

Hose ASM-Hydraulic
(Superseded to 99-5373)

$158.99

$

Usually ships in 3-6 days

0

12

Fitting-Straight Adapter

$

$

Not available

13

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

14

Toro 106267

GROMMET

$

$

Not available

15

Toro 82-9290

FACE PLATE - INSTRUMENT

$

$

Not available

16

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

17

Toro 932997

CLEVIS PIN

$

$

Not available

18

Toro 101699

S/A O-RING&GASKET AS

$135.99

$

Usually ships in 3-6 days

0

19

Toro 109088

S/A 108872 HYD CYL

$

$

Not available

20

Toro 119340

Cylinder-Hydraulic (Incl. Ref. #18-19)

$

$

Not available

21

Toro 83-3060

SPACER-WORM SHAFT

$5.49

$

Usually ships in 3-6 days

0

22

Toro 1278

WASHER

$2.99

$

In Stock, only 1 left!

0

23

Toro 110124

Hose ASM-Hydraulic
(Superseded to 99-5372)

$158.99

$

Usually ships in 3-6 days

0

24

Toro 86-9280

TUBE-HYD PRESSURE

$116.99

$

Usually ships in 3-6 days

0

25

Toro 108365

ELBOW
(Superseded to 103-1802)

$22.99

$

In Stock, only 1 left!

0

27

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 114000

Valve-Hydraulic (Incl.Ref. #30-31)

$

$

Not available

Toro 109081

S/A 110068 VALVE

Note: Not illustrated

$

$

Not available

29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

31

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

32

Toro 78-5640

WLDMT-LIFT BAR

$

$

Not available

33

Toro 933198

SPIROL PIN 7/32X7/8

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

34

Toro 116302

ARM-CONTROL

$

$

Not available

Toro 100571

PLASTIC TIE

Note: Not illustrated

$

$

Not available
