R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

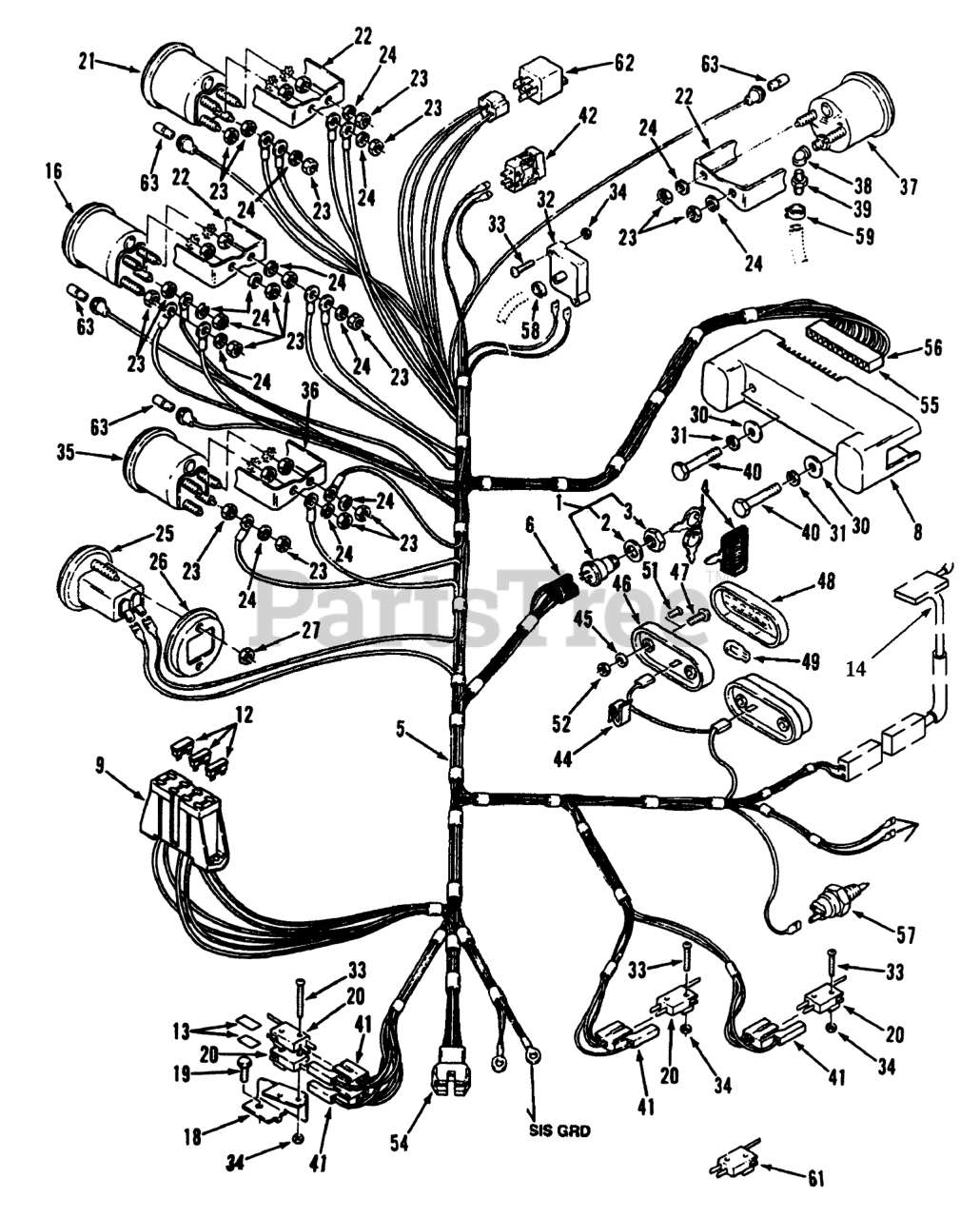

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 103990

SWITCH-IGNITION

$28.99

$

In Stock, only 4 left!

0

2

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

3

$7.49

$

In Stock, only 1 left!

0

4

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

Toro 62-7790

Key-Padded Ignition
(Superseded to 62-7780)

$1327.99

$

Usually ships in 3-6 days

0

5

Toro 79-3630

WIRING-HARNESS & DIA

$

$

Not available

6

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

8

Toro 79-2130

CIRCUIT-BRD 8 LIGHT

$

$

Not available

9

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

12

Toro 114594

FUSE-10 AMP

$

$

Not available

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 38-1420

SWITCH-SEAT

$

$

Not available

16

Toro 78-0040

Gauge-Fuel (Includes Item 22)
(Superseded to 95-3830)

$215.99

$

Usually ships in 3-6 days

0

18

Toro 111488

Support-Switch
(Superseded to 115411)

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

20

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

21

Toro 78-0030

Voltmeter (Includes Item 22)
(Superseded to 17-8049)

$

$

Not available

22

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

23

Toro 915564

Nut
(Superseded to 3217-27)

$0.99

$

Usually ships in 3-6 days

0

24

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

25

Toro 78-0020

Hourmeter (Includes Item 26)
(Superseded to 66-2950)

$

$

Not available

26

Toro 78-3220

Bracket-Mountin
(Superseded to 78-3221)

$

$

Not available

27

Toro 915564

Nut
(Superseded to 3217-27)

$0.99

$

Usually ships in 3-6 days

0

30

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

32

Toro 114270

SENSOR-AIR CLEANER

$

$

Not available

33

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

34

Toro 91579

Bolt

$

$

Currently unavailable

35

Toro 78-0060

Tachomebr (Includes Item 36)

$

$

Not available

36

Toro 114018

MOUNTING-BRACKET

$

$

Not available

37

Toro 79-2660

Gauge-Vacuum (Includes Item 22

$

$

Not available

38

Toro 943021

ELBOW

$

$

Not available

39

Toro 105076

FITTING STRAIGHT

$

$

Not available

40

Toro 910783

SCREW

$

$

Not available

40

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

41

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

42

Toro 113191

Light Switch
(Superseded to 107-9238)

$60.99

$

Usually ships in 3-6 days

0

44

Toro 443023

Clip-Speed

$

$

Currently unavailable

45

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

46

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

47

Toro 910809

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

48

Toro 112564

LENS-TAIL LIGHT

$9.99

$

In Stock, Qty 5

0

49

Toro 109045

LIGHT BULB

$

$

Not available

51

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

52

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

54

Toro 113119

9-CIRCUIT CAP

$

$

Not available

55

Toro 114632

Connector-Male

$

$

Currently unavailable

56

Toro 114633

Terminal

$

$

Currently unavailable

57

Toro 113193

SENSOR-HYDRO OIL HOT

$

$

Not available

58

Toro 114767

CLAMP-HOSE 5/16"

$

$

Not available

59

Toro 950154

Clamp

$

$

Not available

61

Toro 115230

SWITCH - CLUTCH

$34.99

$

Usually ships in 3-6 days

0

62

Toro 116379

Relay
(Superseded to 116397)

$40.99

$

In Stock, only 1 left!

0

63

Toro 79-0450

LAMP-MINIATURE GE 53X

$

$

Not available

Toro 79-0460

Lamp-1.2" Long
(Superseded to 79-0450)

Note: Not illustrated

$

$

Not available
