R1-20OE02 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

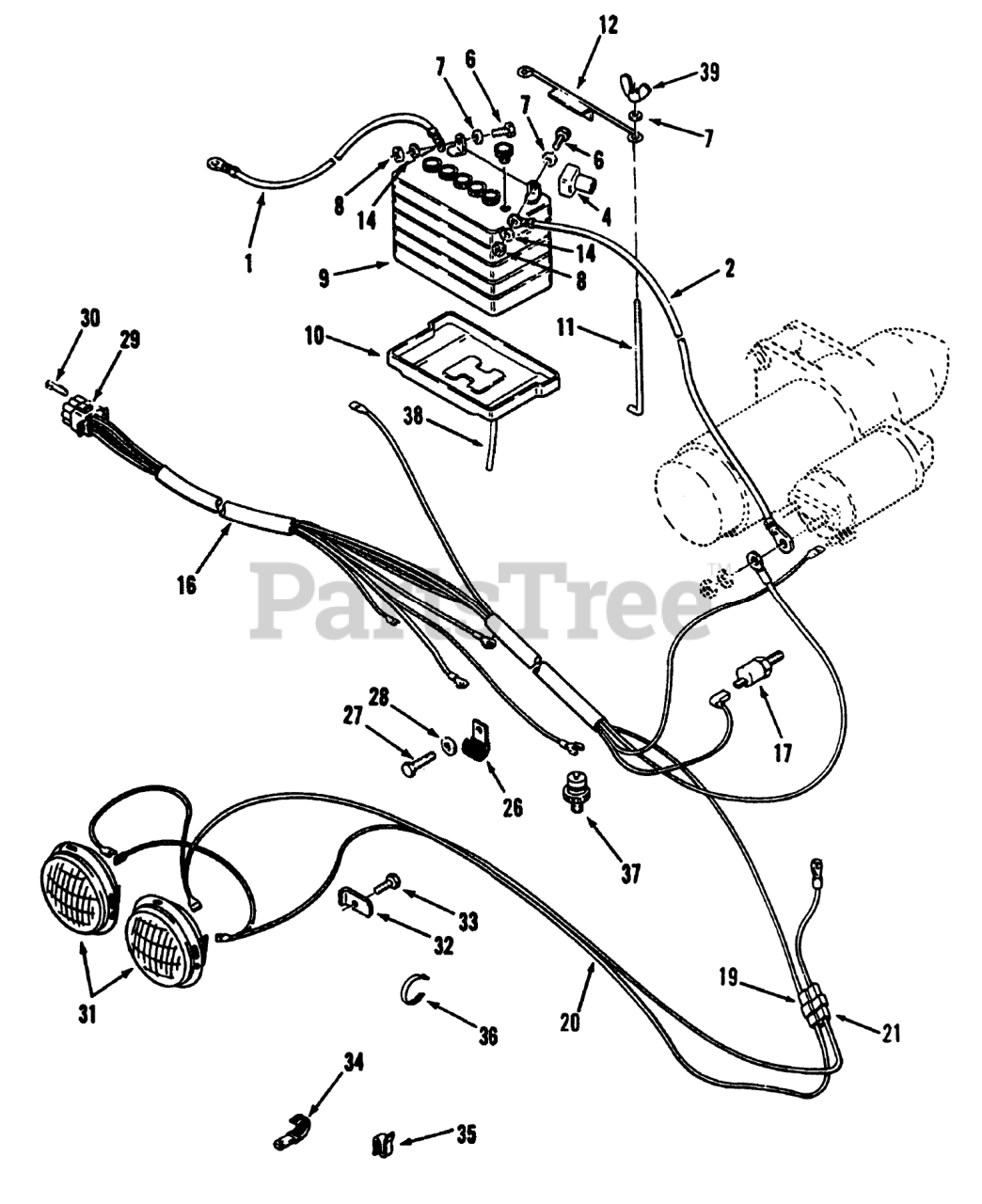

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 114210

ASS'Y-WIRE

$51.99

$

Usually ships in 3-6 days

0

2

Toro 113925

ASS'Y-WIRE

$73.99

$

Usually ships in 3-6 days

0

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

10

Toro 106498

THRUST WASHER

$130.99

$

Usually ships in 3-6 days

0

11

Toro 113969

HOOK-BATTERY RETAIN

$14.99

$

In Stock, only 2 left!

0

12

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

14

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro NN10553

WIRING HARNESS

$

$

Not available

17

Toro NN10274

HIGH TEMPERATURE

$

$

Not available

19

Toro NN10278

MALE CONNECTOR

$

$

Not available

20

Toro 114052

HARNESS-HEADLIGHT

$

$

Not available

21

Toro 109357

CONNECTOR BODY

$

$

Not available

26

Toro 71-6220

CLIP-WIRE

$

$

Not available

27

Toro 82-1540

SCREW-HWH

$

$

Not available

28

Toro NN10425

LOCKWASHER 1/4 IT

$

$

Not available

29

Toro NN10281

CONNECTOR CAP

$

$

Not available

30

Toro NN10279

CONTACT SOCKET

$7.99

$

In Stock, only 2 left!

0

31

Toro 102881

HEADLAMP

$

$

Not available

32

Toro 109459

LOCK-HEADLIGHT

$6.99

$

In Stock, Qty 7

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

34

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

35

Toro 3023

SPEED CLIP

$

$

Not available

36

Toro 100571

PLASTIC TIE

$

$

Not available

37

Toro NN10824

SWITCH

$

$

Not available

38

Toro 114720

TUBE-21" BATTERY DRAIN

$6.99

$

Usually ships in 3-6 days

0

39

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

40

Toro 59-0640

ELBOW-45 DEG

$

$

Not available
