R1-18OE02 (518-H) - Toro Garden Tractor (1990) OIL BASE FILL TUBE AND BRACKET Parts Diagram

Garden Tractor

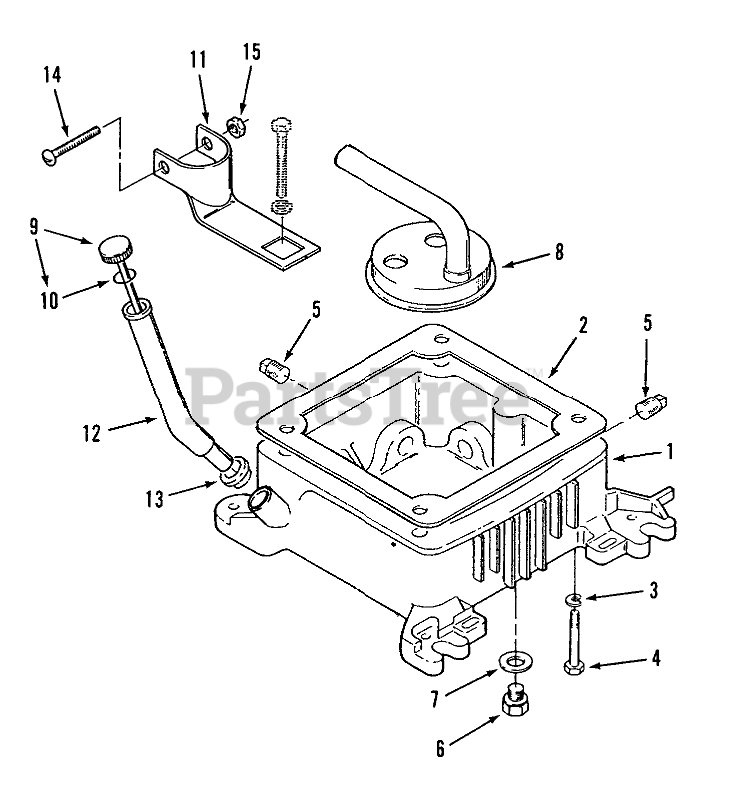

OIL BASE FILL TUBE AND BRACKET Parts Diagram

  • Title

1

Toro NN10018

Oil Base (Includes All Plugs and Plug Gasket
(Superseded to 71-5730)

$

$

Not available

2

Toro NN10565

Oil Base Gasket

$

$

Not available

3

Toro NN10421

Lockwasher 3/8
(Superseded to 325-35)

$10.99

$

Usually ships in 3-6 days

0

4

Toro NN10379

HHCS 3/8-16 X 3 3/4

$

$

Not available

5

Toro NN10682

Plug
(Superseded to 82-1130)

$

$

Not available

6

Toro NN10015

Plug
(Superseded to 57-8080)

$

$

Not available

7

Toro NN10014

Gasket

$

$

Not available

8

Toro NN10138

Cup-Oil Pump Intake
(Superseded to 57-8490)

$

$

Not available

9

Toro NN10159

Oil Fill Cap and Indicator (Includes "O" Ring)
(Superseded to 115-0940)

$

$

Not available

10

Toro NN10323

O-Ring
(Superseded to 57-9610)

$7.99

$

In Stock, only 1 left!

0

11

Toro NN10162

FILL TUBE BRACKET

$

$

Not available

12

Toro NN10161

Oil Fill Tube-Chrome 15-3/4" Lg
(Superseded to NN10854)

$

$

Not available

13

Toro NN10325

Seal
(Superseded to 71-6170)

$15.99

$

In Stock, only 1 left!

0

14

Toro NN10407

Screw
(Superseded to 82-1560)

$

$

Not available

15

Toro NN10431

Nut
(Superseded to 82-1700)

$

$

Not available
