R1-18OE02 (518-H) - Toro Garden Tractor (1990) INTAKE MANIFOLD Parts Diagram

Garden Tractor

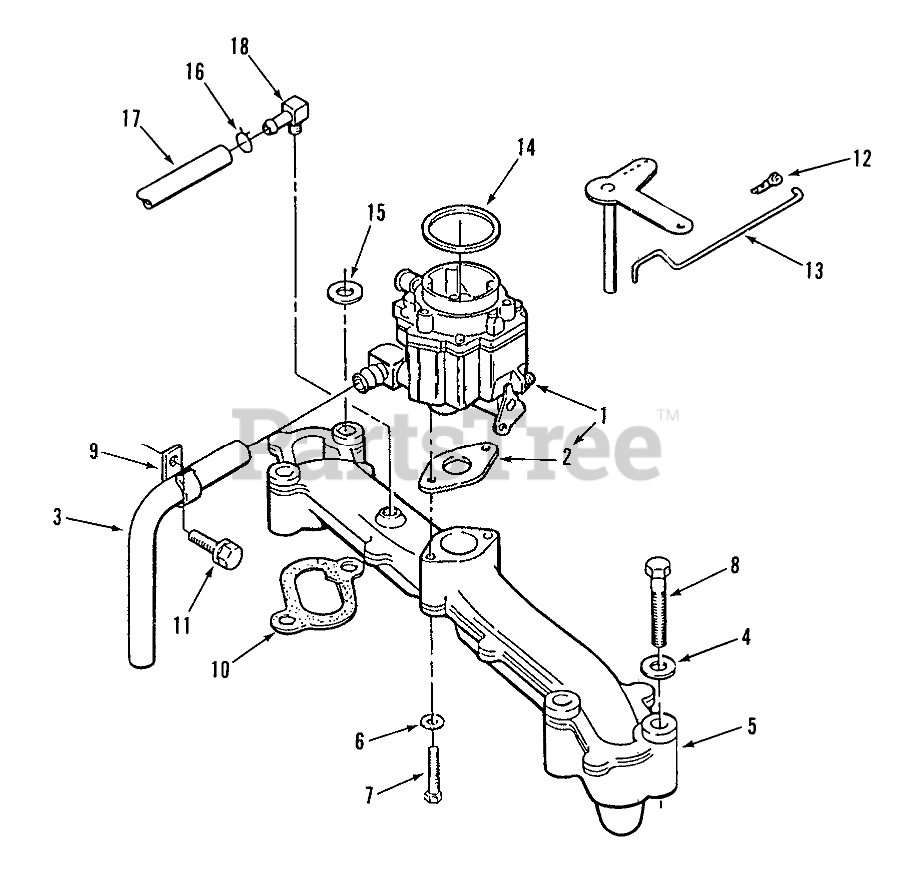

INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro NN10855

Carburetor (Includes Mounting Gasket, Elbow and "O" Ring) See section 7-9 for complete carburetor breakdown)
(Superseded to NN10204)

$

$

Not available

2

Toro NN10235

Gasket
(Superseded to 82-0850)

$12.99

$

In Stock, only 1 left!

0

3

Toro NN10856

HOSE

$

$

Not available

Toro NN10306

FUEL HOSE

$

$

Not available

Toro NN10857

HOSE

$23.99

$

Usually ships in 3-6 days

0

4

Toro NN10420

Washer
(Superseded to 82-1630)

$

$

Not available

5

Toro NN10777

Intake Manifold
(Superseded to 71-6480)

$

$

Not available

6

Toro NN10419

Washer-Lock
(Superseded to 82-1620)

$

$

Not available

7

Toro NN10372

Screw Hex Hd. 1/4-20 x 1-3/8
(Superseded to 3-2115)

$

$

Not available

8

Toro NN10375

HHCS

$

$

Not available

9

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

10

Toro NN10236

Gasket
(Superseded to 71-5980)

$14.99

$

In Stock, only 3 left!

0

11

Toro NN10399

Bolt
(Superseded to 82-1540)

$

$

Not available

12

Toro NN10342

Retaining Clip
(Superseded to 57-9700)

$5.49

$

In Stock, only 1 left!

0

13

Toro NN10227

Governor Control Rod
(Superseded to 57-9160)

$

$

Not available

14

Toro NN10423

O-Ring
(Superseded to 82-1650)

$7.49

$

Usually ships in 3-6 days

0

15

Toro NN10362

FLAT WASHER

$

$

Not available

16

Toro NN10829

Clamp .44" Dia.
(Superseded to 82-1090)

$

$

Not available

Toro NN10789

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 3 left!

0

17

Toro NN10305

Hose 3.25"
(Superseded to NN10447)

$

$

Not available

Toro NN10447

HOSE

$

$

Not available

18

Toro NN10299

Barbed Fitting
(Superseded to 82-1070)

$

$

Not available
