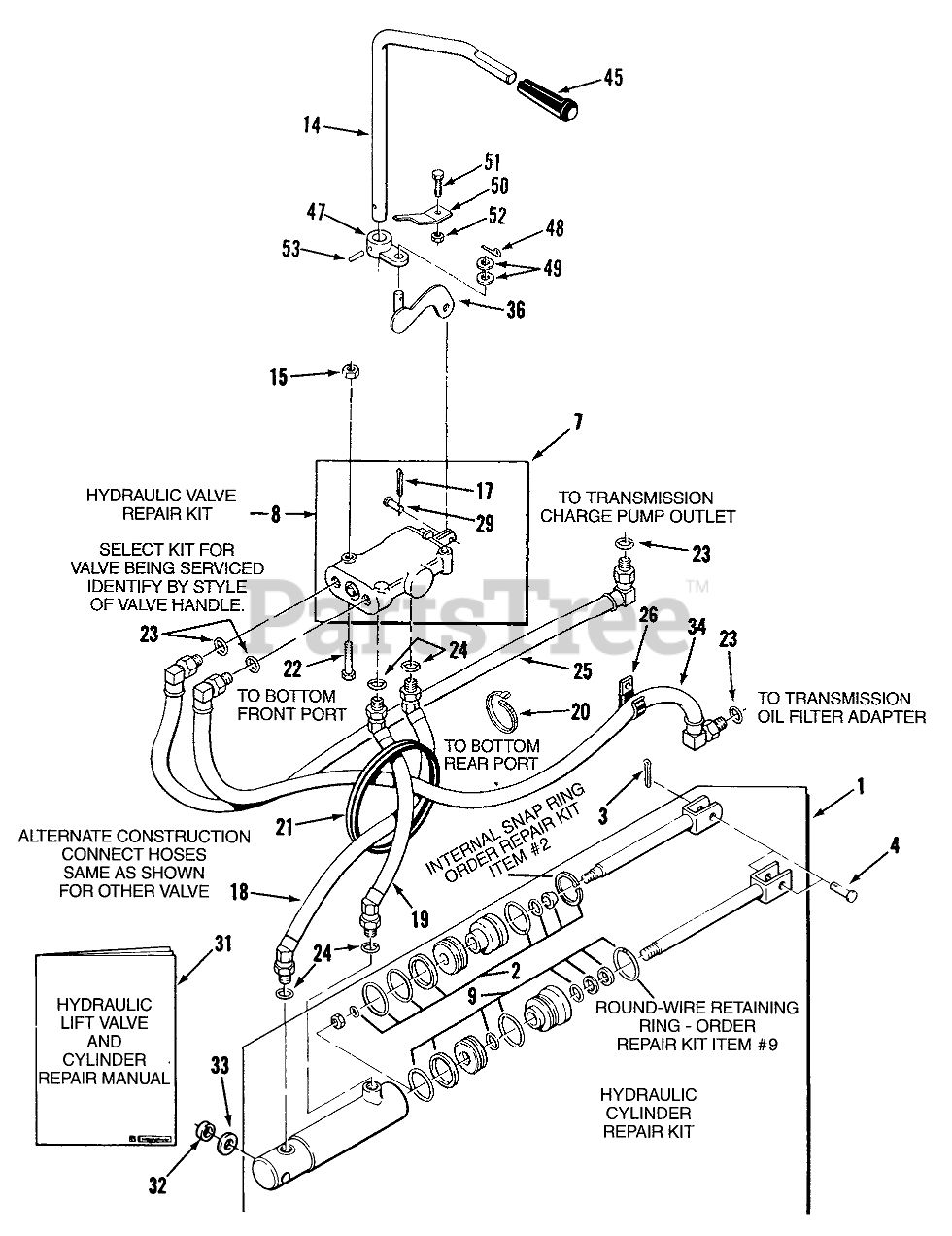

R1-18OE02 (518-H) - Toro Garden Tractor (1990) HYDRAULIC SYSTEM Parts Diagram

Garden Tractor

HYDRAULIC SYSTEM Parts Diagram

  • Title
1

Toro 119340

ASS'Y-CYLINDER

$

$

Not available

2

Toro 101699

S/A O-RING&GASKET AS

$159.99

$

Usually ships in 3-6 days

0

3

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 932997

CLEVIS PIN

$

$

Not available

7

Toro 114000

ASS'Y-VALVE

$

$

Not available

8

Toro 109081

S/A 110068 VALVE

$

$

Not available

9

Toro 109088

S/A 108872 HYD CYL

$

$

Not available

14

Toro 121110

Valve Handle

$

$

Currently unavailable

15

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

17

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

18

Toro 110124

Hose ASM-Hydraulic
(Superseded to 99-5372)

$188.99

$

Usually ships in 3-6 days

0

19

Toro 110125

Hose ASM-Hydraulic
(Superseded to 99-5373)

$188.99

$

Usually ships in 3-6 days

0

20

Toro 100571

PLASTIC TIE

$

$

Not available

21

Toro 106267

GROMMET

$

$

Not available

22

Toro 908009

Bolt 1/4-20 x 2
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

23

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

24

Toro 973310

O RING

$5.99

$

In Stock, only 2 left!

0

26

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

29

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

31

Toro 810242R3

Repair Manual

$

$

Currently unavailable

32

Toro 110126

Spacer
(Superseded to 83-3060)

$5.49

$

Usually ships in 3-6 days

0

33

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

34

Toro 110504

ASSY HYD HOSE
(Superseded to 107-9295)

$148.99

$

Usually ships in 3-6 days

0

36

Toro 116307

WLDMT-LIFT BAR B

$

$

Not available

45

Toro 116634

KNOB-HYDRAULIC LIFT
(Superseded to 94-6694)

$

$

Not available

47

Toro 116302

ARM-CONTROL

$

$

Not available

48

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

49

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

50

Toro 116305

BRACKET-CONTROL R B

$7.99

$

Usually ships in 3-6 days

0

51

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

52

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

53

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0
