R1-18OE02 (518-H) - Toro Garden Tractor (1990) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

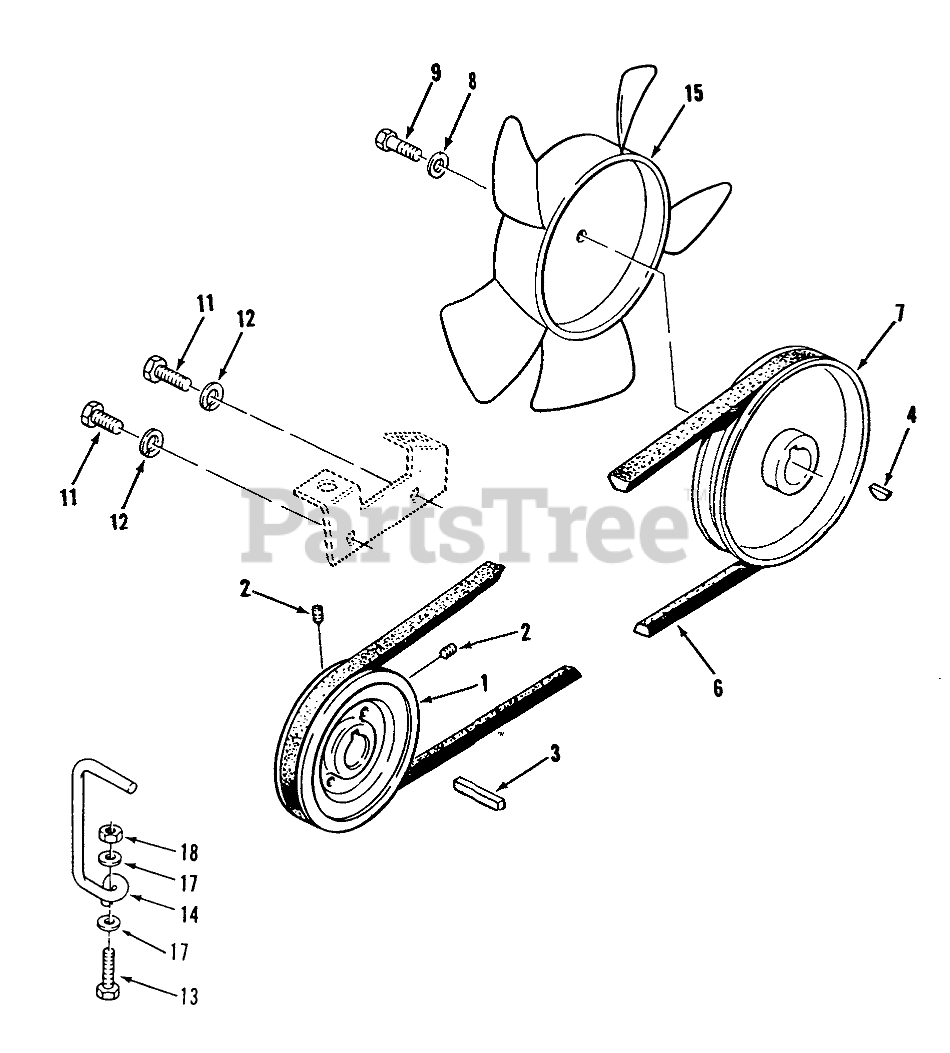

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 7443

PULLEY

$

$

Not available

2

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

4

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

6

Toro 114895

BELT-V

$69.99

$

In Stock, only 1 left!

0

7

Toro 108316

PULLEY

$

$

Not available

8

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

9

Toro 908010

HEX HD CAP SCREW -4

$0.99

$

In Stock, Qty 7

0

11

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

12

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

13

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

14

Toro 113924

GUIDE-BELT BOTTOM B

$

$

Not available

15

Toro 108393

NYLON FAN-L-CW

$41.99

$

In Stock, only 1 left!

0

17

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

18

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0
