R1-18OE02 (518-H) - Toro Garden Tractor (1990) CLUTCH, BRAKE & SPEED CONTROL LINKAGE Parts Diagram

Garden Tractor

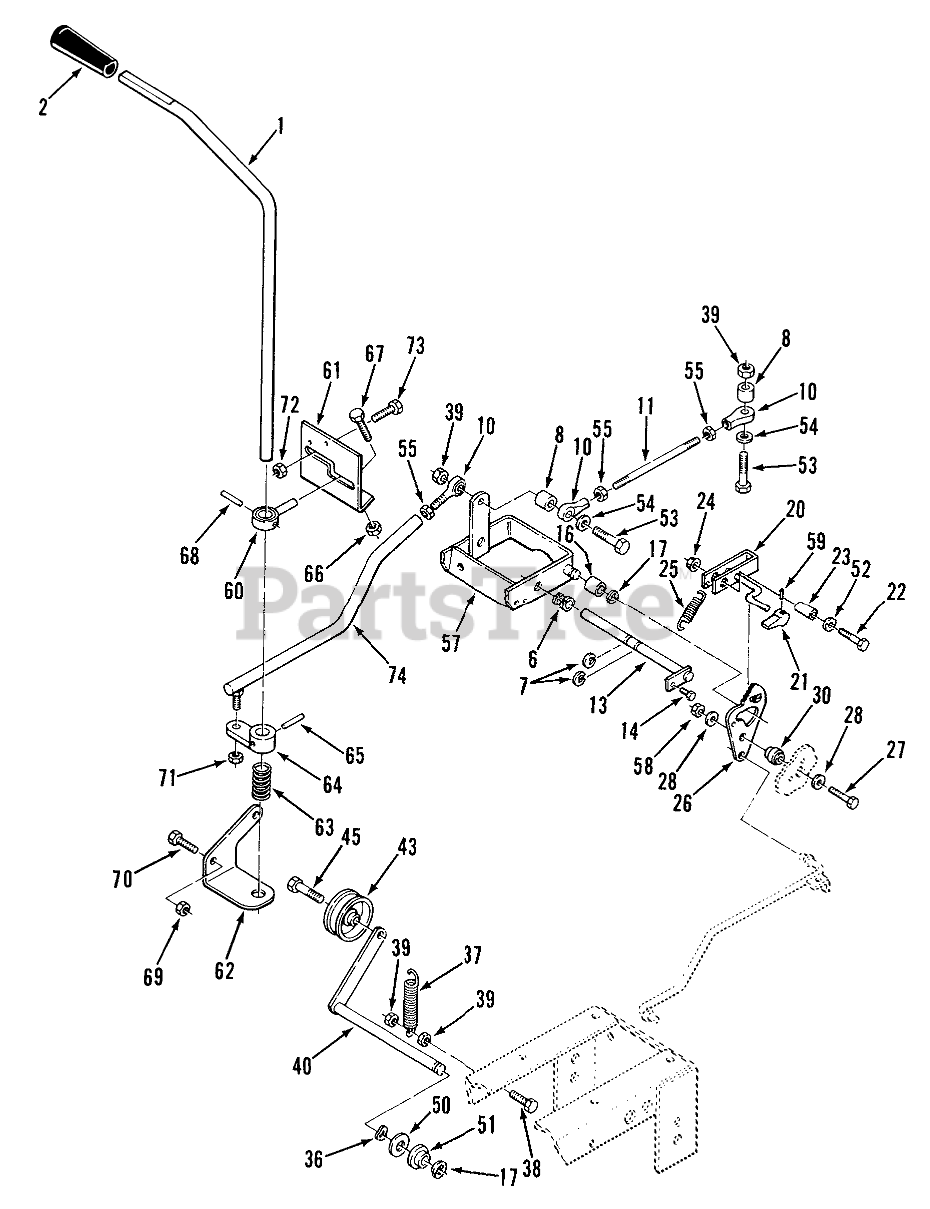

CLUTCH, BRAKE & SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 117329

ROD-MOTION CONTROL

$

$

Not available

2

Toro 116635

Knob-Motion Control
(Superseded to 94-6668)

$

$

Not available

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 12

0

7

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

8

Toro 100304

Spacer

$6.99

$

Usually ships in 3-6 days

0

10

Toro 116407

ROD END, 1/4-28

$60.99

$

Usually ships in 3-6 days

0

11

Toro 108904

ROD-CONTROL

$28.99

$

Usually ships in 3-6 days

0

13

Toro 108496

ASSY-ROD CAM PIVOT

$

$

Not available

14

Toro 926694

SCREW

$

$

Not available

16

Toro 100656

BEARING-CAM RETURN

$6.49

$

In Stock, Qty 5

0

17

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

20

Toro 116296

WLDMT-BRAKE PAWL B

$

$

Not available

21

Toro 118860

KNOB-PARKING BRAKE

$

$

Not available

22

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

23

Toro 102025

SPACER

$

$

Not available

24

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

25

Toro 1230

Spring

$

$

Not available

26

Toro 108716

Cam Plate
(Superseded to 108716-03)

$

$

Not available

27

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

28

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

30

Toro 108717

Spacer

$

$

Not available

36

Toro 108473

WASHER-WAVE

$8.49

$

In Stock, only 2 left!

0

37

Toro 107938

SPRING-EXTENSION

$13.99

$

In Stock, only 4 left!

0

38

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

39

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

40

Toro 112792

Pivot Rod
(Superseded to 78-6020)

$

$

Not available

43

Toro 112791

PULLEY-IDLER

$91.99

$

In Stock, only 4 left!

0

45

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 7

0

50

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

51

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

52

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

53

Toro 911458

Bolt

$

$

Currently unavailable

54

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

55

Toro 915083

Jam Nut 1/4-28
(Superseded to 3220-1)

$1.49

$

In Stock, only 2 left!

0

57

Toro 113454

Cam Comtrol
(Superseded to 113454-03)

$

$

Not available

58

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

59

Toro 933135

PIN-SPIROL 3/32X5/8

$

$

Not available

60

Toro 118660

GUIDE-CONTROL

$

$

Not available

61

Toro 116315

Control Bracket
(Superseded to 78-5711)

$

$

Not available

62

Toro 116322

BRKT-LOWER CONTRO B

$

$

Not available

63

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

64

Toro 116321

ARM-CONTROL

$

$

Not available

65

Toro 933171

Spirol Pin
(Superseded to 32121-94)

$

$

Not available

66

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

67

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

68

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

69

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

70

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

71

Toro 915692

5/16-24 E.S. NUT

$0.99

$

Usually ships in 3-6 days

0

72

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

73

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

74

Toro 116324

ASSY-ROD & BALL JOINT

$358.99

$

Usually ships in 3-6 days

0
