R1-18OE01 (518-H) - Toro Garden Tractor (1990) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

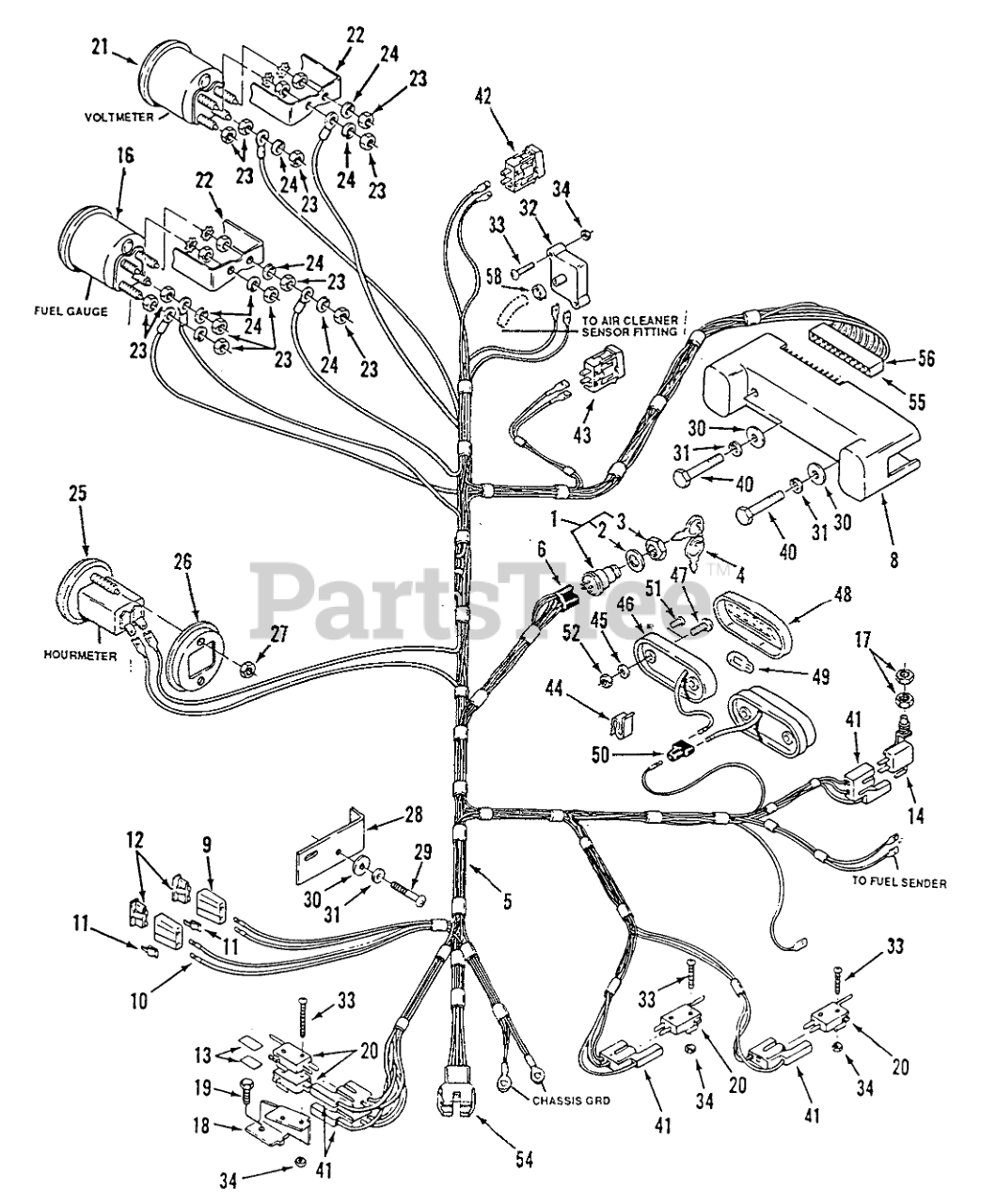

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, only 4 left!

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

3

Toro 111811

NUT BEZEL

$

$

Not available

4

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

Toro 11214

Padded Ignition Key

$

$

Currently unavailable

5

Toro 115980

WIRING-HARNESS

$

$

Not available

6

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

8

Toro 114626

6-Light Circuit Module

$

$

Currently unavailable

9

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

10

Toro 108895

TERMINAL FUSE

$4.49

$

Usually ships in 3-6 days

0

11

Toro 109445

CLIP

$7.49

$

Usually ships in 3-6 days

0

12

Toro 114596

Fuse 10 Amp-ATO or ATC

$

$

Currently unavailable

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 114240

Seat Switch
(Superseded to 112418)

$51.99

$

In Stock, only 4 left!

0

16

Toro 113466

Fuel Gauge (includes item 22) All models

$

$

Not available

17

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

18

Toro 115411

BRACKET-SWITCH

$

$

Not available

18

Toro NN10291

RECEPTACLE TERMINAL

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

20

Toro 111332

SWITCH

$11.99

$

In Stock, only 2 left!

0

21

Toro 113468

Voltmeter (includes item 22)
(Superseded to 79-0060)

$143.99

$

Usually ships in 3-6 days

0

22

Toro 114016

BRKT-GAUGE MOUNTING

$

$

Not available

23

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

24

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

25

Toro 113469

Hourmeter (includes item 26) 518 & 520-s

$445.99

$

Usually ships in 3-6 days

0

26

Toro 114017

BRKT-GAUGE MOUNTING

$

$

Not available

27

Toro 915962

Hex Nut
(Superseded to 32149-9)

$1.49

$

Usually ships in 3-6 days

0

28

Toro 114581

Light Bracket 516

$

$

Not available

29

Toro 910779

SCREW-PHCR #8-32X.75

$

$

Not available

30

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0

31

Toro 920078

LOCKWASHER

$

$

Not available

32

Toro 114270

SENSOR-AIR CLEANER

$

$

Not available

33

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

34

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

40

Toro 910783

SCREW

$

$

Not available

41

Toro 111498

CONNECTOR BODY

$4.99

$

In Stock, only 3 left!

0

42

Toro 113191

Light Switch
(Superseded to 107-9238)

$52.99

$

Usually ships in 3-6 days

0

43

Toro 113190

SWITCH-TEST

$

$

Not available

Toro 910839

Screw
(Superseded to 9108392)

$

$

Not available

44

Toro 3023

SPEED CLIP

$

$

Not available

45

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

46

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

47

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

48

Toro 112564

LENS-TAIL LIGHT

$8.49

$

In Stock, Qty 5

0

49

Toro 109045

LIGHT BULB

$

$

Not available

50

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

51

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

52

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

53

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0

54

Toro 113119

9-CIRCUIT CAP

$

$

Not available

55

Toro 114632

Connector-Male

$

$

Currently unavailable

56

Toro 114633

Terminal

$

$

Currently unavailable

58

Toro 114761

Clamp 5/16

$

$

Currently unavailable

59

Toro 108891

Wire-Switch to Engine

$

$

Not available
