R1-16O804 (316-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) PTO CLUTCH AND CONTROL Parts Diagram

Garden Tractor

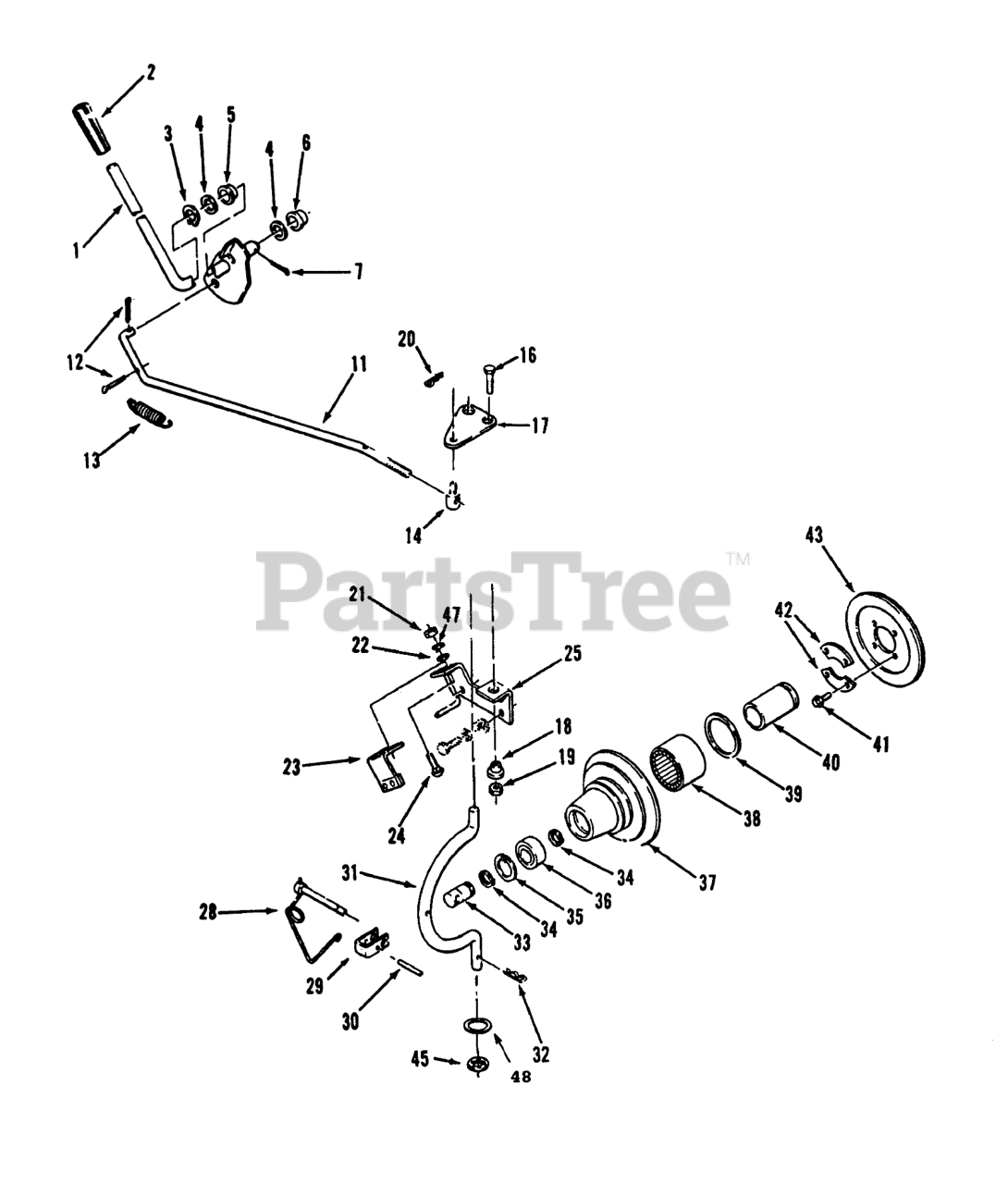

PTO CLUTCH AND CONTROL Parts Diagram

  • Title
1

Toro 111234

ASSY PTO CLUTCH LEVE

$

$

Not available

2

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

3

Toro 106649

Grip Ring
(Superseded to 32151-11)

$11.99

$

In Stock, Qty 5

0

4

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

5

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, only 4 left!

0

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

11

Toro 111052

ROD-PTO CLUTCH

$82.99

$

Usually ships in 3-6 days

0

12

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

13

Toro 103125

SPRING

$9.99

$

In Stock, only 3 left!

0

14

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 110669

PLATE

$29.99

$

Usually ships in 3-6 days

0

18

Toro 104859

SPACER-LIFT LINK

$51.99

$

Usually ships in 3-6 days

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 110665

ASM-Bracket
(Superseded to 94-6652)

$45.99

$

In Stock, only 2 left!

0

24

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

25

Toro 113853

BRACKET WA ENG. B

$50.99

$

Usually ships in 3-6 days

0

28

Toro 111314

LOCKING PIN ASM

$27.99

$

In Stock, only 1 left!

0

29

Toro 113107

CLEVIS

$27.99

$

In Stock, only 1 left!

0

30

$1.99

$

In Stock, Qty 8

0

31

Toro 113108

ROD-HOUSING

$133.99

$

Usually ships in 3-6 days

0

32

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

33

Toro 102872

SHAFT-PTO

$31.99

$

In Stock, only 1 left!

0

34

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

35

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 8

0

36

Toro 109842

BEARING-BALL

$31.99

$

In Stock, only 1 left!

0

37

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

38

Toro 106769

BRG-NEEDLE OPEN END

$60.99

$

In Stock, only 1 left!

0

39

Toro 6662

Seal
(Superseded to 106769)

$60.99

$

In Stock, only 1 left!

0

40

Toro 6658

RACE-BEARING

$

$

Not available

41

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

43

Toro 114881

Facing-Clutch
(Superseded to 94-6650)

$182.99

$

Usually ships in 3-6 days

0

45

Toro 106695

RING-REINFORCED CIRC

$2.49

$

In Stock, only 4 left!

0

47

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Washer-Flat

$

$

Not available
