R1-16O804 (316-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) GEARCASE AND IGNITION CONTROLS POWER PLUS Parts Diagram

Garden Tractor

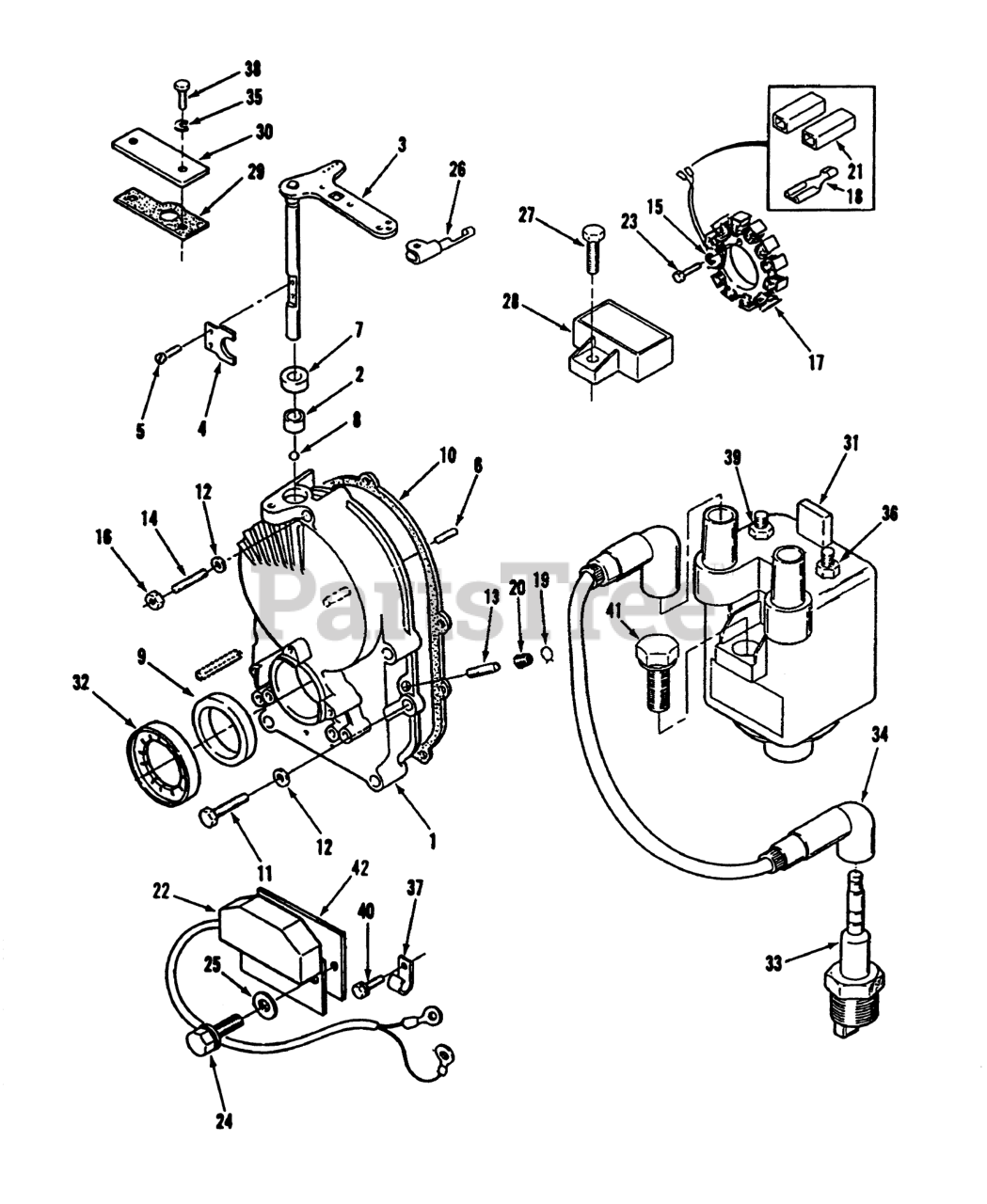

GEARCASE AND IGNITION CONTROLS POWER PLUS Parts Diagram

  • Title
1

Toro NN10B25

Kit-Gearcase (Incl. Ref. #2-9, 13, 19, & 20)

$

$

Currently unavailable

2

Toro 57-9650

BEARING

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$176.99

$

Usually ships in 3-6 days

0

4

$

$

Not available

5

Toro 59-0950

SCREW-PAN HD

$

$

Not available

6

Toro NN10335

Washer
(Superseded to 59-0740)

$6.49

$

In Stock, only 1 left!

0

7

$

$

Not available

8

Toro NN10327

Bearing
(Superseded to 57-9630)

$

$

Not available

9

$

$

Not available

10

Toro NN10895

Gasket
(Superseded to 71-6360)

$

$

Not available

11

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro 59-0360

TUBE-PORT, VACUUM

$

$

Not available

14

Toro NN10352

Stud
(Superseded to 59-0790)

$

$

Not available

15

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro NN10426

Nut
(Superseded to 59-1130)

$

$

Not available

17

Toro NN10518

Stator w/Terminals
(Superseded to 92-0967)

$343.99

$

Usually ships in 3-6 days

0

18

Toro NN10290

Stator Leads Terminal
(Superseded to 59-0590)

$4.99

$

Usually ships in 3-6 days

0

19

Toro 57-9550

CLAMP

$

$

Not available

20

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

21

Toro 82-1000

BODY-TERM. CONNECTOR KIT

$48.99

$

Usually ships in 3-6 days

0

22

Toro NN10444

Control-Ignition
(Superseded to 71-6380)

$431.99

$

Usually ships in 3-6 days

0

23

Toro 82-1500

Screw-HH
(Superseded to 71-6390)

$

$

Not available

24

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

25

Toro 82-1660

WASHER-LOCK

$

$

Not available

26

$5.99

$

Usually ships in 3-6 days

0

27

Toro NN10414

Bolt
(Superseded to 59-1080)

$5.99

$

Usually ships in 3-6 days

0

28

Toro NN10261

Regulator
(Superseded to 117-2742)

$256.99

$

In Stock, only 2 left!

0

29

Toro 79-6490

Gasket-Plate
(Superseded to 57-9260)

$

$

Not available

30

Toro NN10515

Plate
(Superseded to 71-5990)

$

$

Not available

31

Toro NN10245

Coil-Ignition
(Superseded to 71-6000)

$

$

Not available

32

Toro NN10247

Rotor
(Superseded to 71-6010)

$93.99

$

Usually ships in 3-6 days

0

33

Toro 57-9340

SPARK PLUG

$3.49

$

In Stock, only 4 left!

0

34

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

35

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

36

Toro NN10248

Nut
(Superseded to 71-6430)

$3.99

$

Usually ships in 3-6 days

0

37

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

38

Toro 82-1360

SCREW - CAP HEX HEAD

$

$

Not available

39

Toro NN10249

Nut
(Superseded to 71-6440)

$1.99

$

Usually ships in 3-6 days

0

40

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

41

Toro NN10408

Bolt
(Superseded to 71-6460)

$2.99

$

Usually ships in 3-6 days

0

42

Toro NN10516

Insulator
(Superseded to 71-6410)

$11.99

$

Usually ships in 3-6 days
