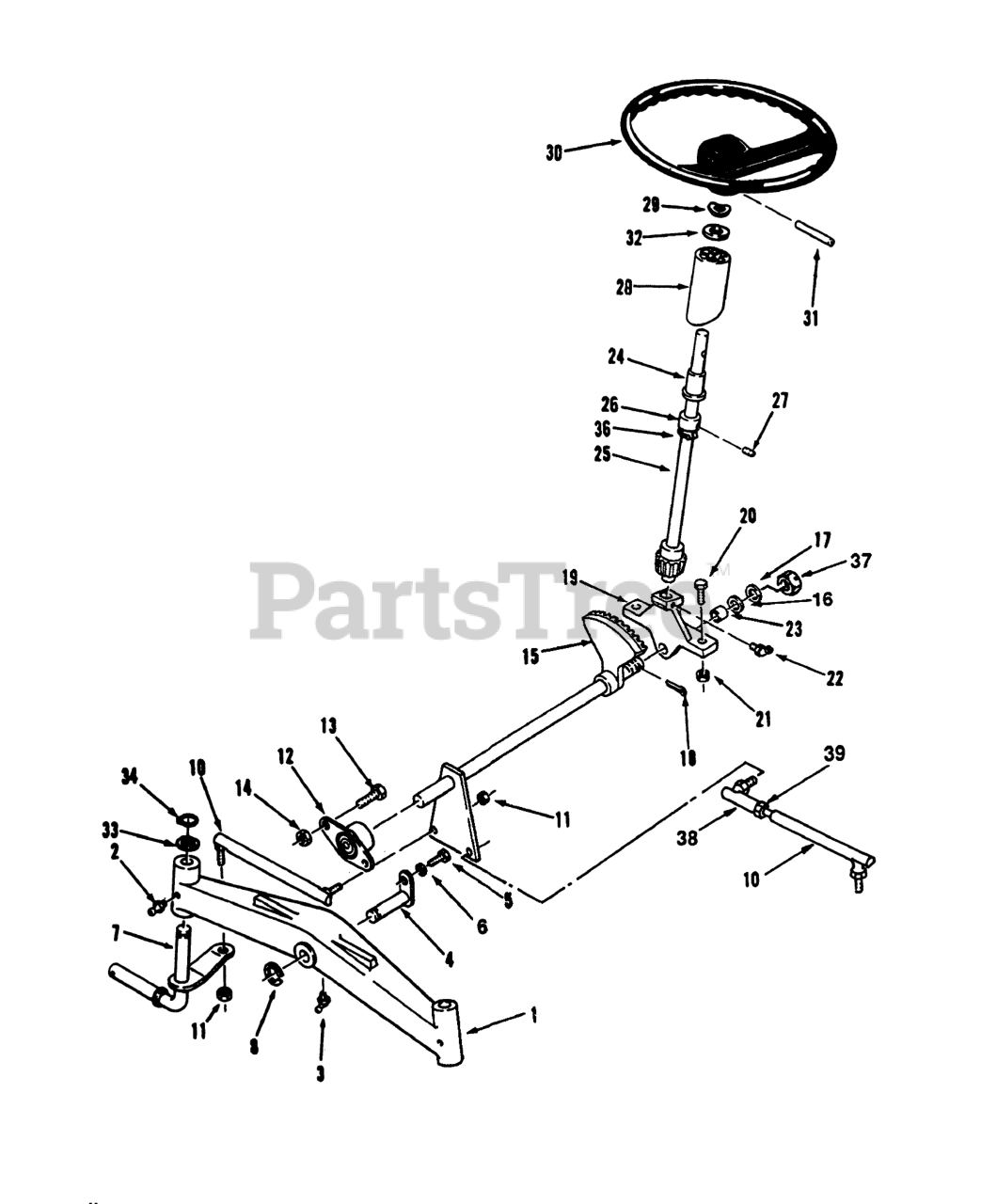

R1-16O804 (316-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) FRONT AXLE AND STEERING Parts Diagram

Garden Tractor

FRONT AXLE AND STEERING Parts Diagram

  • Title
1

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

2

Toro 1030

Zerk

$

$

Not available

3

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 6216

PIN AND PLATE ASM

$44.99

$

Usually ships in 3-6 days

0

5

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 113381

LH SPINDLE ASM
(Superseded to 113381-01)

$95.99

$

Usually ships in 3-6 days

0

Toro 113382

RH SPINDLE WA
(Superseded to 113382-01)

Note: Not illustrated

$95.99

$

In Stock, only 1 left!

0

8

Toro 5618

E-RING

$0.99

$

In Stock, Qty 11

0

10

Toro 78-2900

Tie Rod (Includes Item 38)

$64.99

$

In Stock, only 2 left!

0

11

Toro 915693

Nut
(Superseded to 9156934)

$1.99

$

In Stock, Qty 5

0

12

Toro 6472

BEARING-FLANGED

$21.99

$

In Stock, only 2 left!

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 78-2880

Shaft
(Superseded to 78-2880-03)

$218.99

$

Usually ships in 3-6 days

0

16

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 12

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 1 left!

0

18

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

19

Toro 88-2710

Support-Steering
(Superseded to 88-2710-03)

$

$

Not available

20

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

22

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

23

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

24

Toro 109189

BEARING-FLANGED

$2.99

$

In Stock, Qty 20+

0

25

Toro 106177

Shaft-Upper Steering
(Superseded to 92-4987)

$176.99

$

Usually ships in 3-6 days

0

26

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

27

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

28

Toro 113443

TUBE-STEERING

$

$

Not available

29

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

30

Toro 117337

Steering Wheel
(Superseded to 76-1420)

$217.99

$

Usually ships in 3-6 days

0

31

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

32

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

33

Toro 1278

WASHER

$2.99

$

In Stock, only 1 left!

0

34

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

36

Toro 111646

RING-RETAINING

$1.49

$

In Stock, only 4 left!

0

37

Toro 915035

Nut-Slotted 3/4-16
(Superseded to 32136-5)

$7.99

$

In Stock, only 1 left!

0

38

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

39

Toro 915002

NUT-6
(Superseded to 9150026)

$1.49

$

In Stock, Qty 20+

0

Toro 78-0370

STRG-WHL INSERT TORO

Note: Not illustrated

$

$

Not available
