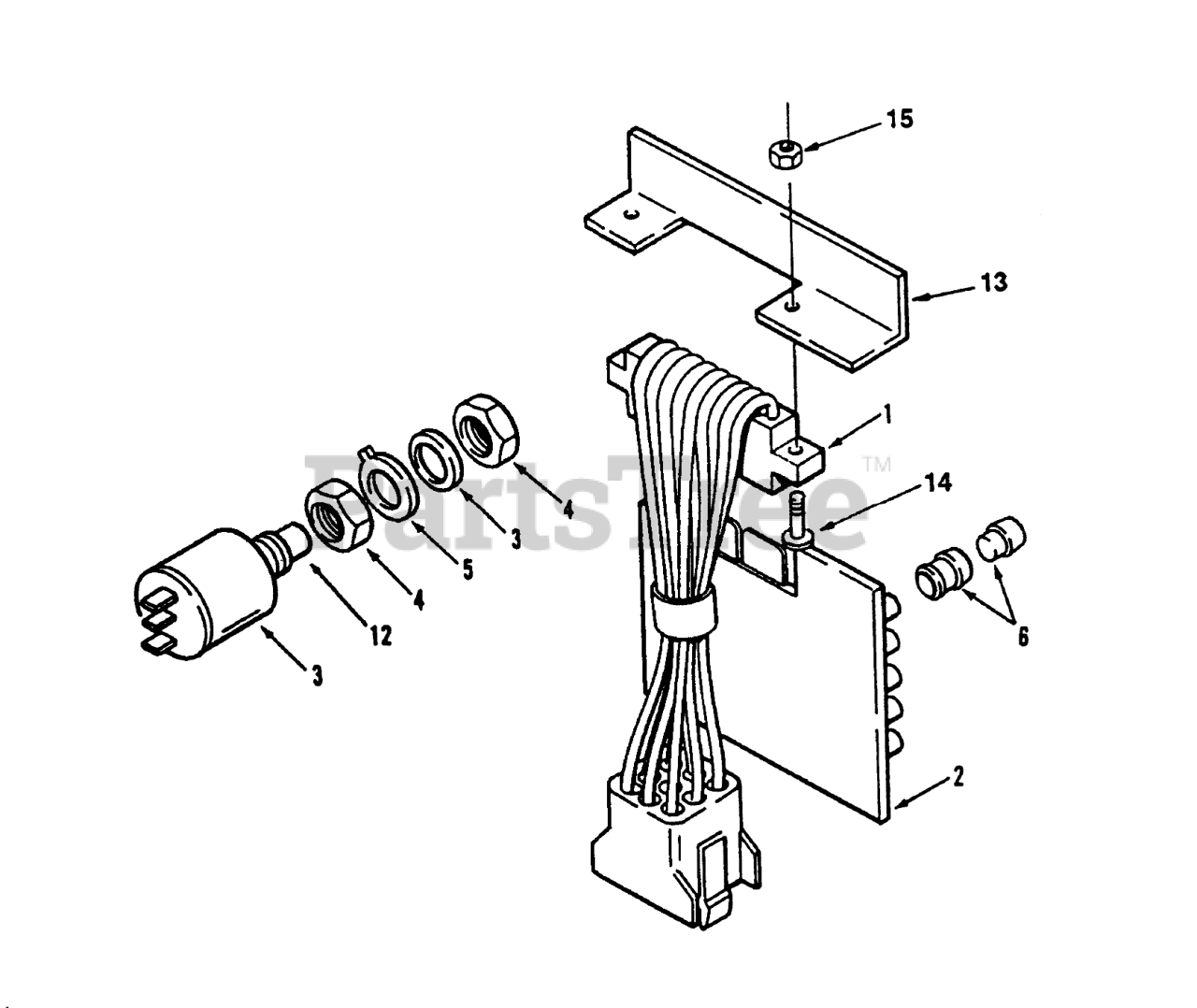

R1-16O804 (316-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 117377

P.C. BOARD HARNESS

$

$

Not available

2

Toro 114825

Board-Pc
(Superseded to 115207)

$

$

Not available

3

Toro 116796

SWITCH-PUSH BUTTON

$84.99

$

Usually ships in 3-6 days

0

4

Toro 111359

NUT F/W 116796

$3.99

$

Usually ships in 3-6 days

0

5

Toro 111767

Washer
(Superseded to 3254-8)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 111343

ASSY LENS & BUSHING

$

$

Not available

12

Toro 117217

BUTTON F/W 116796

$

$

Not available

13

Toro 112506

BRACKET

$7.99

$

Usually ships in 3-6 days

0

14

Toro 910756

Screw #4-40 x 1/2

$

$

Currently unavailable

15

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0
