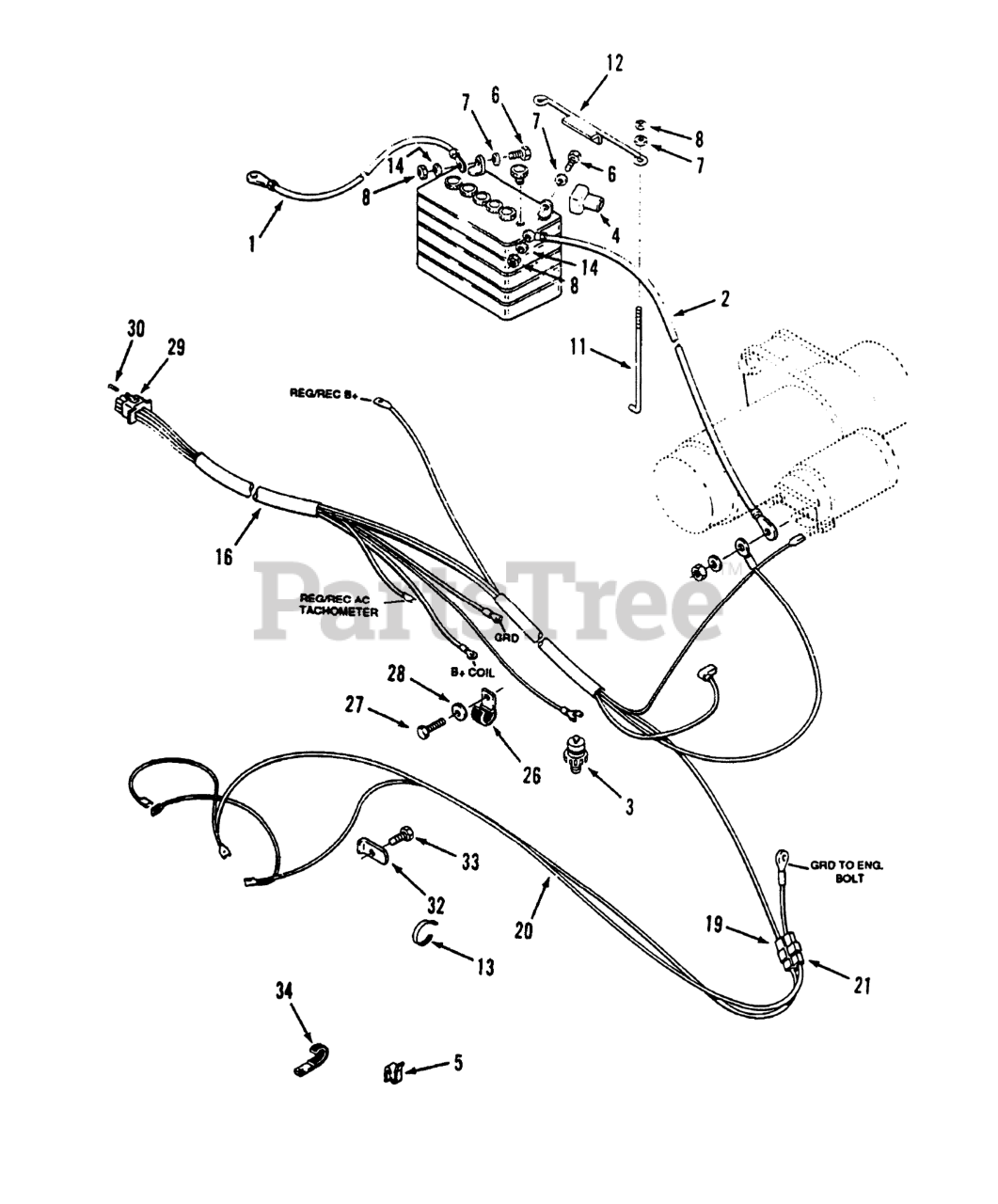

R1-16O804 (316-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 114210

ASS'Y-WIRE

$60.99

$

Usually ships in 3-6 days

0

2

Toro 113825

SHIELD-SD DISCHARGE

$125.99

$

Usually ships in 3-6 days

0

3

Toro NN10824

SWITCH

$

$

Not available

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 3023

SPEED CLIP

$

$

Not available

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 116497

Nut
(Superseded to 32103-22)

$2.99

$

In Stock, Qty 17

0

11

Toro 113969

HOOK-BATTERY RETAIN

$16.99

$

In Stock, only 2 left!

0

12

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 3 left!

0

13

Toro 100571

PLASTIC TIE

$

$

Not available

16

Toro NN10294

Engine Wiring Harness

$

$

Not available

19

Toro NN10278

MALE CONNECTOR

$

$

Not available

20

Toro 114052

HARNESS-HEADLIGHT

$

$

Not available

21

Toro 109357

CONNECTOR BODY

$

$

Not available

26

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

27

Toro NN10399

Bolt
(Superseded to 82-1540)

$

$

Not available

28

Toro NN10425

LOCKWASHER 1/4 IT

$

$

Not available

29

Toro NN10281

CONNECTOR CAP

$

$

Not available

30

Toro NN10279

CONTACT SOCKET

$8.49

$

In Stock, only 2 left!

0

32

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

34

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0
