R1-16O804 (316-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) BLOWER HOUSING AND GOVERNOR POWER PLUS Parts Diagram

Garden Tractor

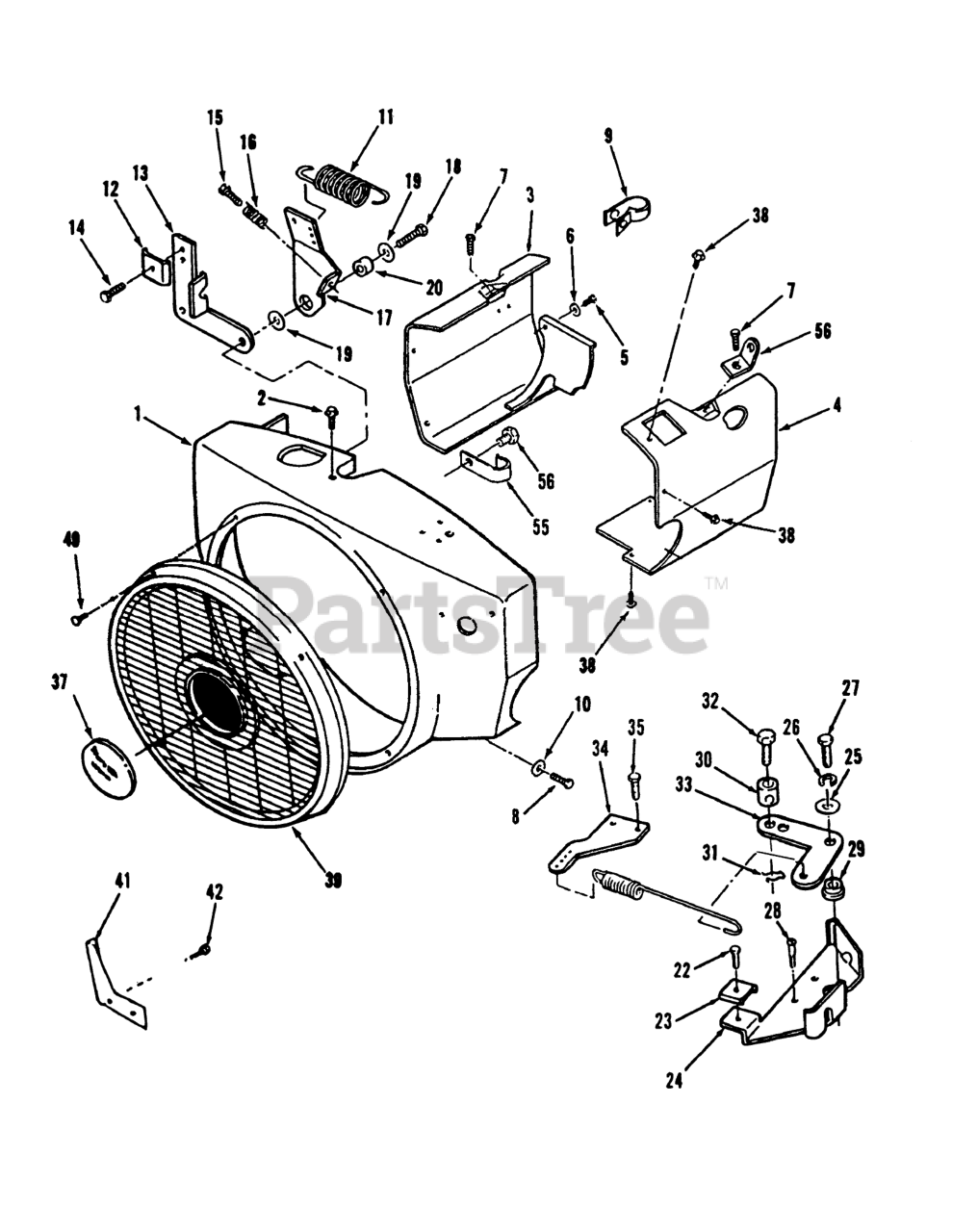

BLOWER HOUSING AND GOVERNOR POWER PLUS Parts Diagram

  • Title
1

Toro NN10862

HOUSING

$

$

Not available

2

Toro 59-0970

HEX HD CAPSCREW

$

$

Not available

3

Toro 92-0920

LH AIR CYLINDER HSG

$

$

Not available

4

Toro 92-0921

RH AIR CYLINDER HSG

$

$

Not available

5

Toro 59-0980

SCREW-HH

$

$

Not available

6

Toro NN10289

Clamp
(Superseded to 59-0580)

$

$

Not available

7

Toro 82-1600

SCREW-HWH

$

$

Not available

8

Toro NN10393

Bolt
(Superseded to 59-0980)

$

$

Not available

9

Toro NN10289

Clamp
(Superseded to 59-0580)

$

$

Not available

10

Toro NN10356

Washer
(Superseded to 59-0820)

$

$

Not available

11

Toro NN10217

Spring
(Superseded to 57-9100)

$

$

Not available

12

$

$

Not available

13

Toro 79-6360

BRACKET

$

$

Not available

14

Toro NN10395

Bolt
(Superseded to 72-3900)

$

$

Not available

15

Toro 59-1030

SCREW-TAP

$

$

Not available

16

Toro NN10219

Spring
(Superseded to 59-0430)

$

$

Not available

17

Toro 92-0922

GOVERNOR CONTROL ARM

$

$

Not available

18

Toro 59-1100

SCREW-HWH

$

$

Not available

19

Toro NN10357

Screw
(Superseded to 59-0830)

$

$

Not available

20

Toro NN10218

Bushing
(Superseded to 57-9120)

$

$

Not available

22

Toro 59-1000

TAPPING HEX HD CS

$

$

Not available

23

$

$

Not available

24

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

25

Toro 59-0830

WASHER-FLAT

$

$

Not available

26

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

27

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

28

Toro 201327

HEX HD CAP SCREW

$

$

Not available

29

Toro 79-6400

BUSHING-GOV CONTROL

$

$

Not available

30

Toro NN10320

Oil Seal
(Superseded to 57-9580)

$

$

Not available

31

Toro 59-0720

PIN-COTTER

$

$

Not available

32

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

33

Toro 79-6410

LINK-GOV CONTROL

$

$

Not available

34

Toro 79-6420

ADAPTER-GOV ARM

$

$

Not available

35

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

37

Toro 59-1080

SCREW-HWH

$

$

Not available

38

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available

39

Toro 82-0620

GUARD-STATIONARY

$

$

Not available

41

Toro NN10832

BRACKET

$

$

Not available

42

Toro 82-0930

SCREW - THREAD CUTTING

$

$

Not available

49

Toro 82-1590

SCREW-PAN HEAD

$

$

Not available

55

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

56

Toro NN10296

Bracket-Lifting
(Superseded to 71-6080)

$

$

Not available
