R1-16O802 (316-8) - Toro Garden Tractor (1990) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

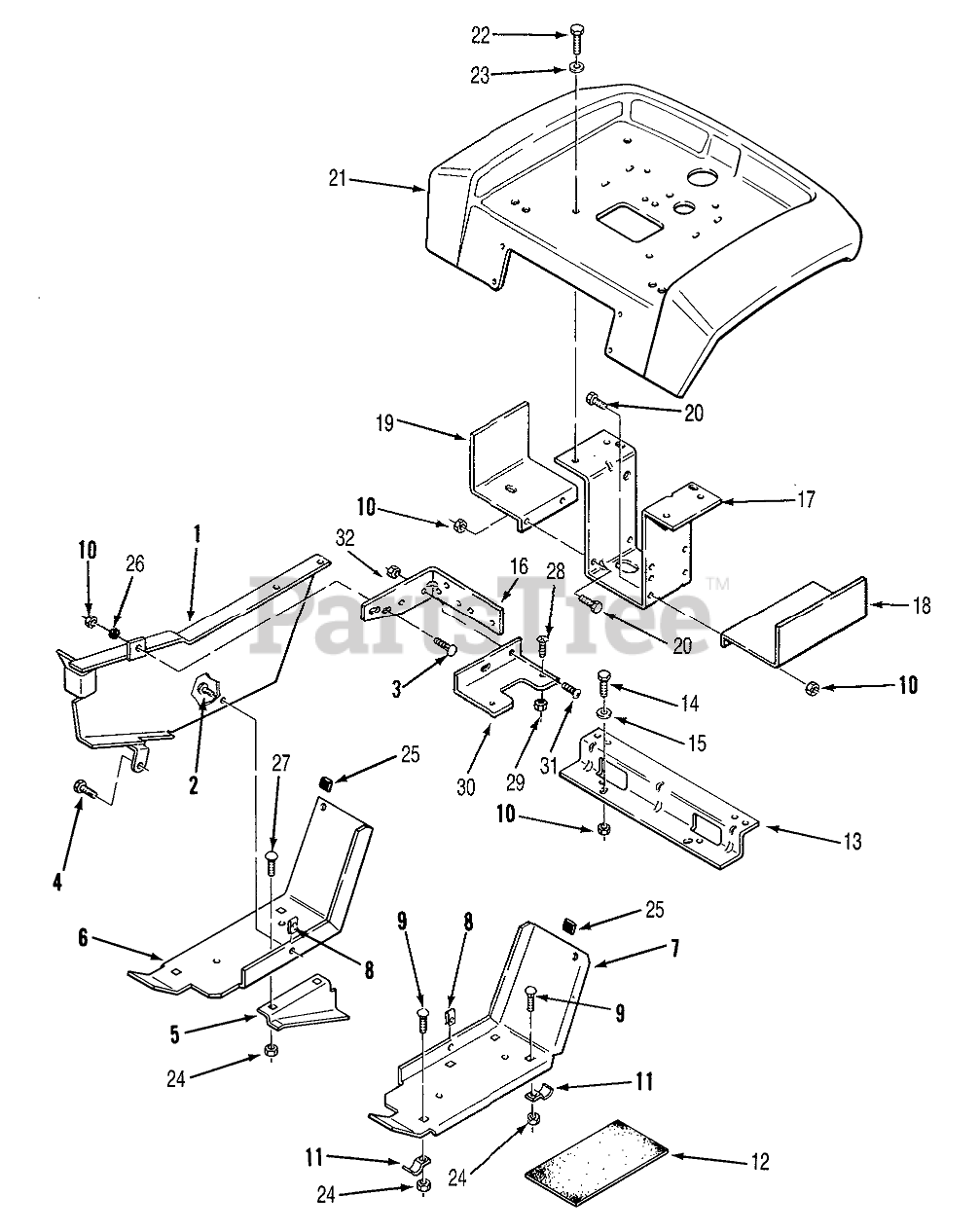

SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 114877

Belt Guard
(Superseded to 92-1527)

$

$

Not available

Toro 107975

Belt Guard
(Superseded to 95-7695-01)

$

$

Not available

2

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

3

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 18

0

4

Toro 926694

SCREW

$

$

Not available

5

Toro 106352

GUID-LOWER BLTR
(Superseded to 106352-01)

$21.99

$

Usually ships in 3-6 days

0

6

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

7

Toro 106223

FOOTREST LH R

$

$

Not available

8

$2.99

$

In Stock, Qty 20+

0

9

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

11

Toro 7456

BRACKET

$

$

Not available

12

Toro 110636

PAD FOOTREST

$

$

Not available

13

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$65.99

$

In Stock, only 1 left!

0

14

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 109554

BRACKET-BELTB

$

$

Not available

17

Toro 108897

Bracket-Fender Support
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

18

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

19

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0

20

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

21

Toro 110960

Fender
(Superseded to 94-3722-01)

$

$

Not available

22

Toro 926694

SCREW

$

$

Not available

23

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

24

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

25

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

26

Toro 108457

NUT-PUSH

$

$

Not available

27

Toro 118620

BOLT-CARR 5/16 SN
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

28

$

$

Not available

29

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

30

Toro 118280

BRKT-FUS HLDERB

$

$

Not available

Toro 117331

FUSE HOLDERB
(Superseded to 117331-03)

$

$

Not available

31

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

32

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0
