R1-16O802 (316-8) - Toro Garden Tractor (1990) PTO CLUTCH AND CONTROL Parts Diagram

Garden Tractor

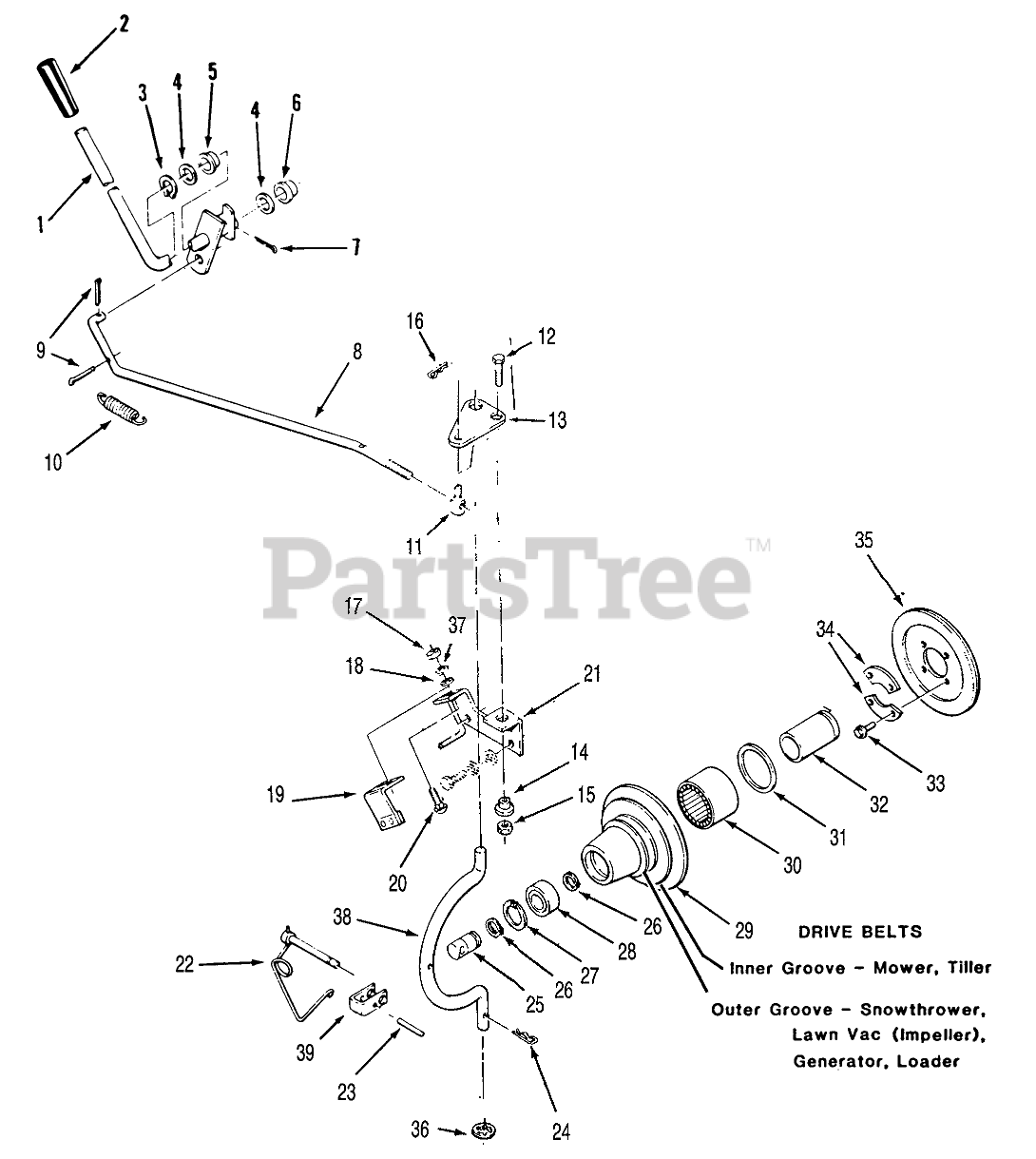

PTO CLUTCH AND CONTROL Parts Diagram

  • Title
1

Toro 111234

ASSY PTO CLUTCH LEVE

$

$

Not available

2

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

3

Toro 106649

Grip Ring
(Superseded to 32151-11)

$11.99

$

In Stock, Qty 5

0

4

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

5

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, Qty 10

0

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 12

0

7

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

8

Toro 111052

ROD-PTO CLUTCH

$82.99

$

Usually ships in 3-6 days

0

9

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

10

Toro 103125

SPRING

$9.99

$

In Stock, only 2 left!

0

11

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

12

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

13

Toro 110669

PLATE

$29.99

$

Usually ships in 3-6 days

0

14

Toro 104859

SPACER-LIFT LINK

$51.99

$

Usually ships in 3-6 days

0

15

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

16

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

17

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

18

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

19

Toro 110665

ASM-Bracket
(Superseded to 94-6652)

$45.99

$

In Stock, only 4 left!

0

20

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

21

Toro 113853

BRACKET WA ENG. B

$50.99

$

Usually ships in 3-6 days

0

Toro 111240

Bracket
(Superseded to 111240-03)

$

$

Not available

22

Toro 111314

LOCKING PIN ASM

$27.99

$

In Stock, only 2 left!

0

23

$1.99

$

In Stock, Qty 8

0

24

Toro 9335Q6

Hairpin Cotter

$

$

Currently unavailable

25

Toro 102872

SHAFT-PTO

$31.99

$

In Stock, only 3 left!

0

26

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

27

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 7

0

28

Toro 109842

BEARING-BALL

$31.99

$

In Stock, only 3 left!

0

29

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

30

Toro 106769

BRG-NEEDLE OPEN END

$60.99

$

In Stock, only 3 left!

0

31

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 2 left!

0

32

Toro 6658

RACE-BEARING

$

$

Not available

33

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

34

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

35

Toro 114881

Facing-Clutch
(Superseded to 94-6650)

$182.99

$

In Stock, only 1 left!

0

36

Toro 106695

RING-REINFORCED CIRC

$2.49

$

In Stock, only 4 left!

0

37

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

38

Toro 113108

ROD-HOUSING

$133.99

$

Usually ships in 3-6 days

0

Toro 113876

ROD-HOUSING

$

$

Not available

39

Toro 113107

CLEVIS

$27.99

$

In Stock, only 1 left!

0
