R1-16O802 (316-8) - Toro Garden Tractor (1990) KOHLER STARTER Parts Diagram

Garden Tractor

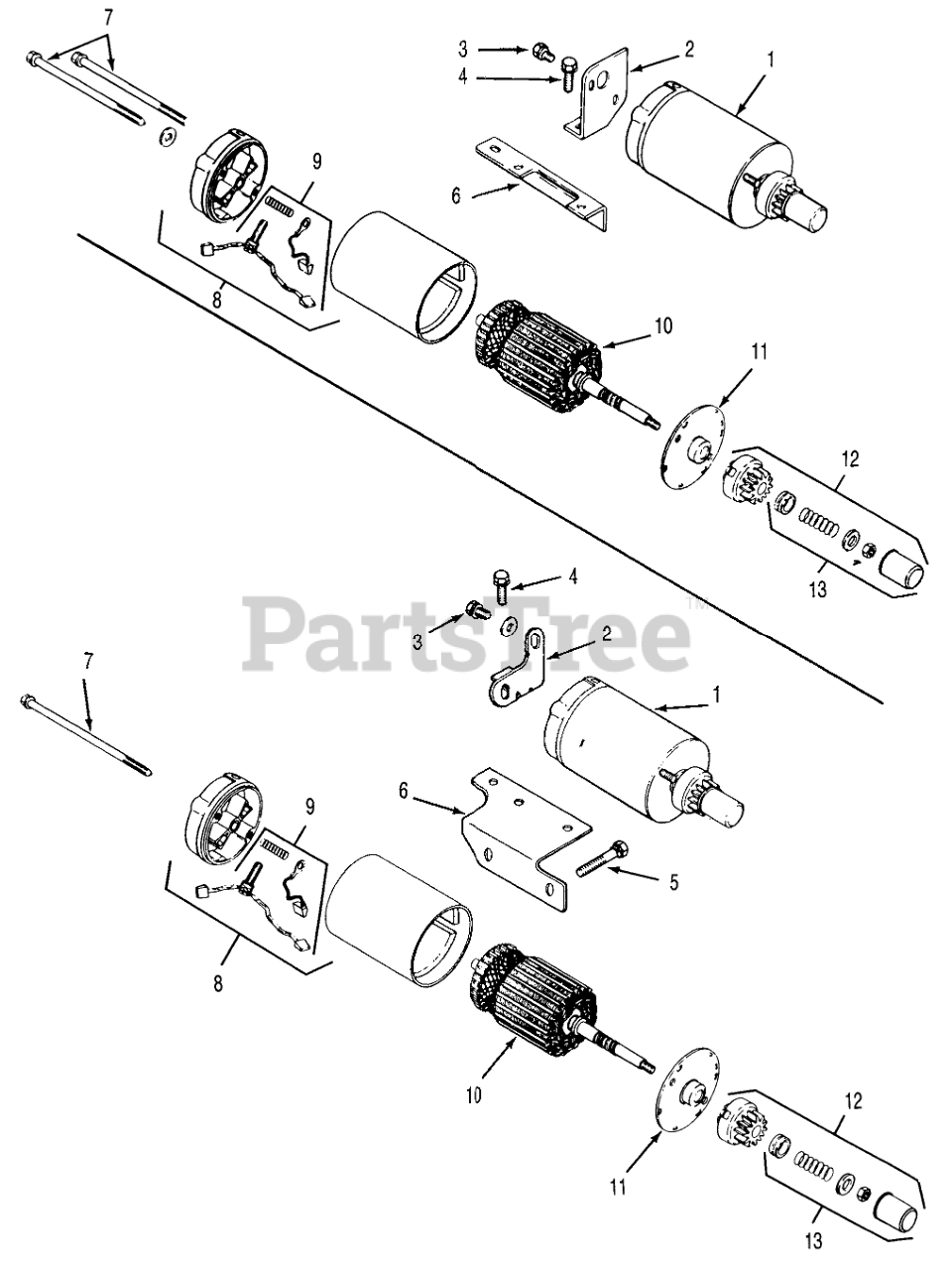

KOHLER STARTER Parts Diagram

  • Title

1

Kohler 41 098 04

Starter Assembly (Includes Items 9 thru 15)
(Superseded to 41 098 06)

$359.99

$

Usually ships in 2-5 days

0

2

Kohler 45 126 17

Brace-Tail
(Superseded to 45 126 17-S)

$

$

Not available

3

Kohler X-67-62

Screw
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

5

Kohler X-159-2

Screw
(Superseded to X-159-2-S)

$4.49

$

Usually ships in 2-5 days

0

6

Kohler 47 126 29

Bracket-Solenoid
(Superseded to 47 126 29-S)

$41.99

$

Usually ships in 2-5 days

0

7

Kohler 41 086 19

Bolt
(Superseded to 41 086 19-S)

$

$

Not available

8

Kohler 41 227 04

Commutator End Cap Assembly (Includes Item 11)
(Superseded to 52 227 03)

$

$

Not available

9

Kohler 52 755 15

Kit-Brush
(Superseded to 82 755 28)

$

$

Not available

10

Kohler 45 170 02

Armature

$

$

Not available

11

Kohler 41 227 03

Cap-Drive End
(Superseded to 41 081 05-S)

$124.99

$

Usually ships in 2-5 days

0

12

Kohler 47 755 07

Drive Kit (Includes Item 15)

$

$

Not available

13

Kohler 47 755 13

Kit-Drive Parts

$

$

Not available

Kohler 25 450 03

Tag-Caution
(Superseded to 25 450 03-S)

Note: Not illustrated

$1.49

$

Usually ships in 2-5 days

0
