R1-16O802 (316-8) - Toro Garden Tractor (1990) KOHLER IGNITION SYSTEM Parts Diagram

Garden Tractor

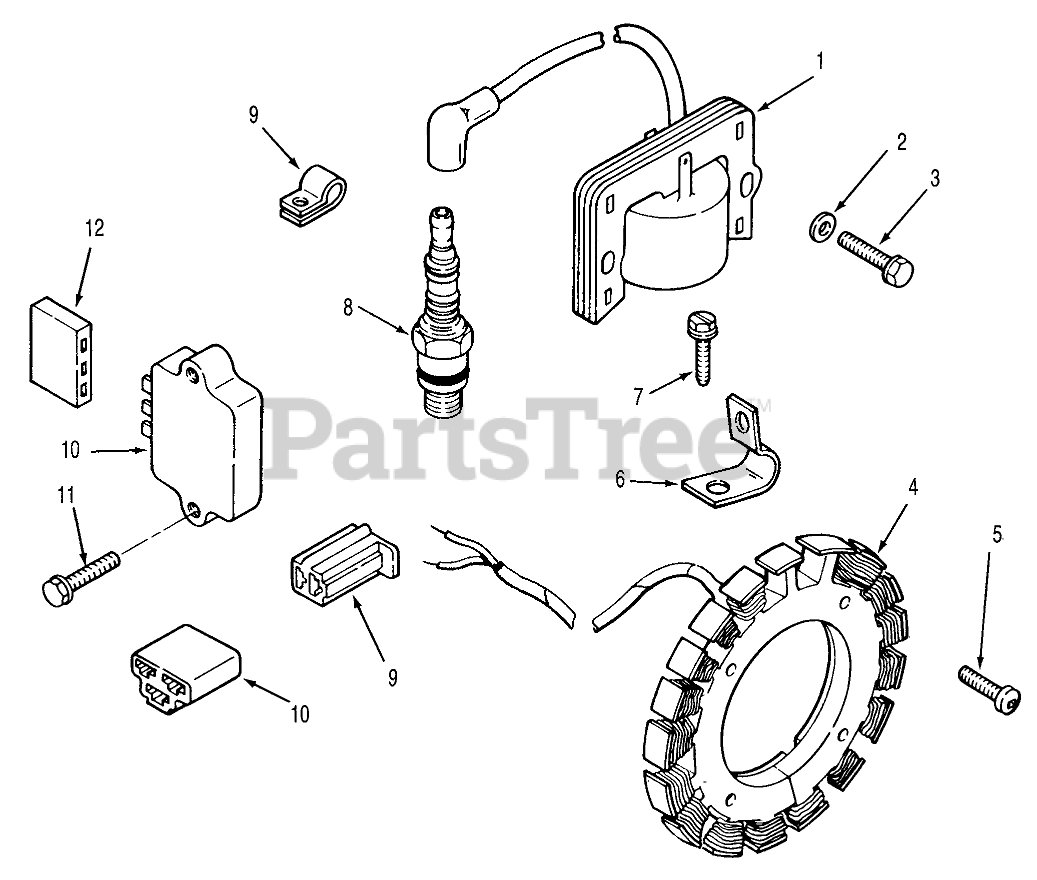

KOHLER IGNITION SYSTEM Parts Diagram

  • Title

1

Kohler 47 584 02

Module-Ignition
(Superseded to 47 584 03)

$187.99

$

In Stock, only 1 left!

0

2

Kohler X-25-79

Washer
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

3

Kohler X-156-1

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 237878

Stator Kit 15 amp (Includes Item# 8)
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 6

0

5

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

7

Kohler X-67-49

Hex. Washer Hd. Screw No. 8-32 x 3/8

$

$

Not available

8

Kohler 235041-S

Plug-Spark
(Superseded to 25 132 10-S)

$20.99

$

Usually ships in 2-5 days

0

9

Kohler 210281

Clip-Cable
(Superseded to 210281-S)

$7.49

$

Usually ships in 2-5 days

0

10

Kohler 41 403 05

Regulator-Rectifier
(Superseded to 25 755 03)

$125.99

$

Usually ships in 2-5 days

0

11

Kohler X-132-4

Screw
(Superseded to X-132-4-S)

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 236602

Connector
(Superseded to 236602-S)

$7.99

$

In Stock, only 1 left!

0

Kohler 47 518 43

Lead-White w/Diode
(Superseded to 47 518 43-S)

Note: Not illustrated

$120.99

$

Usually ships in 2-5 days

0

Kohler 47 518 37

Lead-White, Module to Connector (15") After, Serial No. 1715900003)
(Superseded to 47 518 44)

Note: Not illustrated

$120.99

$

Usually ships in 2-5 days

0

Kohler 47 518 36

Lead-Violet, Regulator-Rectifier to Connector (23")
(Superseded to 47 518 36-S)

Note: Not illustrated

$23.99

$

Usually ships in 2-5 days

0
