R1-16O802 (316-8) - Toro Garden Tractor (1990) KOHLER GOVERNOR LINKAGE Parts Diagram

Garden Tractor

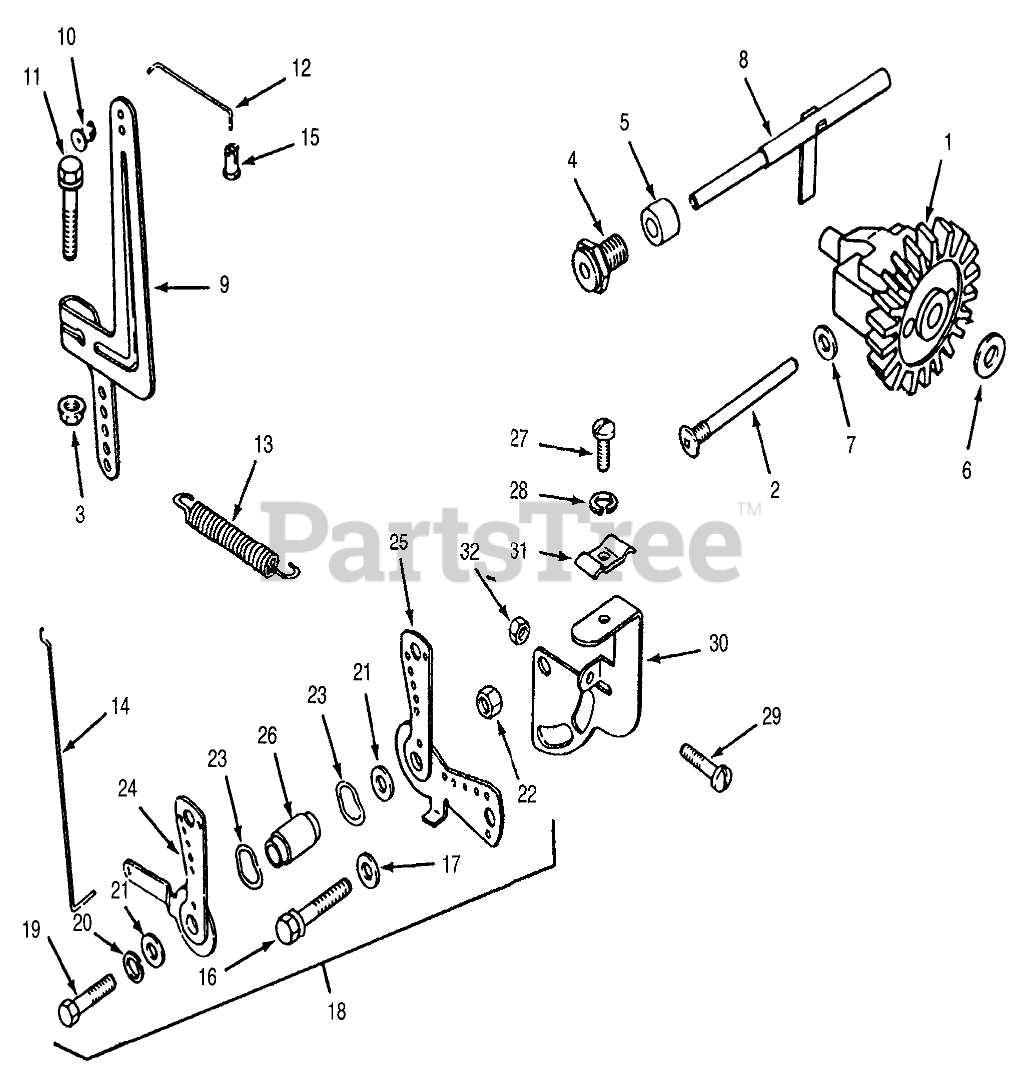

KOHLER GOVERNOR LINKAGE Parts Diagram

  • Title

1

Kohler A-235743-S

Governor Gear Kit (Includes 24)

$79.99

$

Usually ships in 2-5 days

0

2

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

3

Kohler X-799-1

Palnut
(Superseded to X-799-1-S)

$3.99

$

Usually ships in 2-5 days

0

4

Kohler 235476

Bushing
(Superseded to 235476-S)

$

$

Not available

5

Kohler X-400-80

Spacer
(Superseded to X-400-80-S)

$9.49

$

Usually ships in 2-5 days

0

6

Kohler 237022

Washer
(Superseded to 237022-S)

$7.49

$

Usually ships in 2-5 days

0

7

Kohler 25 468 01

Washer-Plain
(Superseded to 25 468 01-S)

$5.49

$

Usually ships in 2-5 days

0

8

Kohler A-235256-S

Kit-Governor Shaft

$46.99

$

Usually ships in 2-5 days

0

9

Kohler 47 090 20

Lever-Governor
(Superseded to 47 090 20-S)

$14.99

$

Usually ships in 2-5 days

0

10

Kohler X-776-1

Screw
(Superseded to X-776-1-S)

$

$

Not available

11

Kohler 47 158 06

White Bushing
(Superseded to 47 158 07)

$6.49

$

In Stock, only 1 left!

0

12

Kohler 47 079 05

Unkage-Governor
(Superseded to 47 079 10)

$

$

Not available

13

Kohler 47 091 01

Spring-Governor
(Superseded to 47 091 01-S)

$

$

Not available

14

Kohler 47 079 01

Linkage-Choke
(Superseded to 47 079 01-S)

$12.99

$

Usually ships in 2-5 days

0

15

Kohler 25 158 07

Yellow Bushing
(Superseded to 25 158 09)

$5.99

$

In Stock, only 2 left!

0

16

Toro X-1320-6

H.C. Sems Screw 1/4-20 x 1/2

$

$

Currently unavailable

17

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

$3.99

$

In Stock, only 2 left!

0

18

Toro 47 087 03

Choke Lever Assembly (Includes Items 37 thru 44)

$

$

Currently unavailable

19

Kohler X-5-26

Screw
(Superseded to X-5-26-S)

$

$

Not available

20

Kohler X-20-1

Washer
(Superseded to X-20-1-S)

$3.99

$

In Stock, only 1 left!

0

21

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

22

Kohler X-76-2

Nut
(Superseded to X-76-2-S)

$3.49

$

Usually ships in 2-5 days

0

23

Kohler 275690

Washer
(Superseded to 275690-S)

$6.49

$

In Stock, only 1 left!

0

24

Kohler 47 090 07

Choke Control Lever
(Superseded to 47 090 07-S)

$86.99

$

Usually ships in 2-5 days

0

25

Kohler 47 090 08

Throttle Control Lever
(Superseded to 47 090 08-S)

$34.99

$

Usually ships in 2-5 days

0

26

Kohler 47 112 02

Spacer
(Superseded to 47 112 02-S)

$18.99

$

Usually ships in 2-5 days

0

27

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

28

Toro 2546804

Washer

$

$

Currently unavailable

29

Kohler 232556

Screw
(Superseded to 232556-S)

$8.49

$

Usually ships in 2-5 days

0

30

Kohler 47 126 09

Bracket
(Superseded to 47 126 09-S)

$23.99

$

Usually ships in 2-5 days

0

31

Kohler 47 237 02

Clamp
(Superseded to 47 237 02-S)

$10.99

$

Usually ships in 2-5 days

0

32

Kohler X-72-4

Nut
(Superseded to X-72-4-S)

$2.49

$

Usually ships in 2-5 days

0
