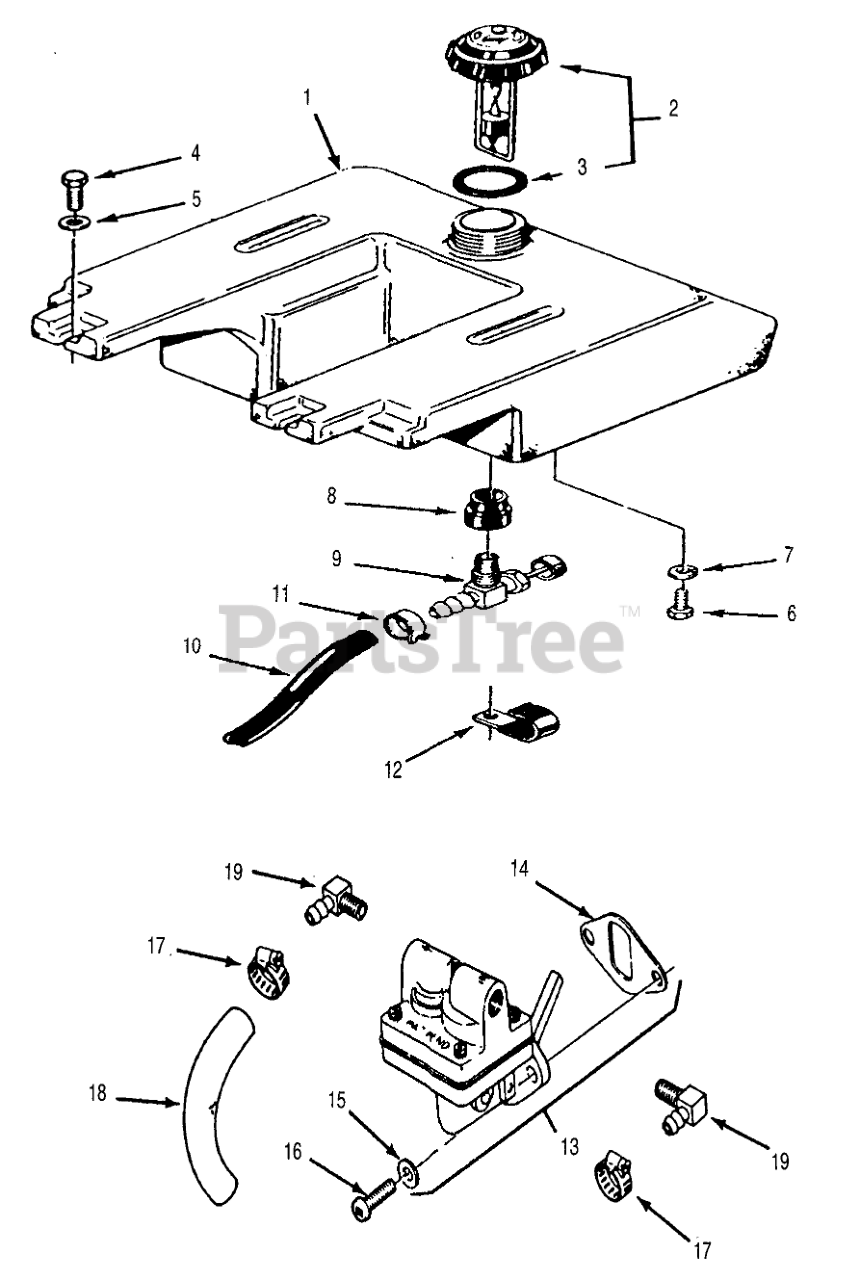

R1-16O802 (316-8) - Toro Garden Tractor (1990) KOHLER FUEL SYSTEM Parts Diagram

Garden Tractor

KOHLER FUEL SYSTEM Parts Diagram

  • Title

1

Toro 106234

TANK-FUEL

$456.99

$

Usually ships in 3-6 days

0

2

Toro 106945

Fuel Cap & gauge (Includes Item 19)

$34.99

$

In Stock, Qty 15

0

3

Toro 106931

GASKET-GAS CAP

$

$

Not available

4

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

6

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

7

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

9

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

10

Toro 103787

Fuel Line 62
(Superseded to 110521)

$

$

Not available

11

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

12

Toro 950154

Clamp

$

$

Not available

Toro 105490

CLAMP

$

$

Not available

13

Kohler 47 559 04

Fuel Pump Assy (Includes items 30 & 31)
(Superseded to 47 559 04-S)

$272.99

$

In Stock, only 1 left!

0

14

Kohler 25 041 05

Gasket-Fuel Pump
(Superseded to 25 041 09)

$3.49

$

In Stock, only 1 left!

0

15

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

16

Kohler X-174-2

Screw-F.H.
(Superseded to X-174-2-S)

$3.49

$

In Stock, only 1 left!

0

17

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

18

Kohler 25 353 01

Line-Fuel
(Superseded to 25 353 01-S)

$

$

Not available

19

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0
