R1-16O802 (316-8) - Toro Garden Tractor (1990) KOHLER CARBURETORS Parts Diagram

Garden Tractor

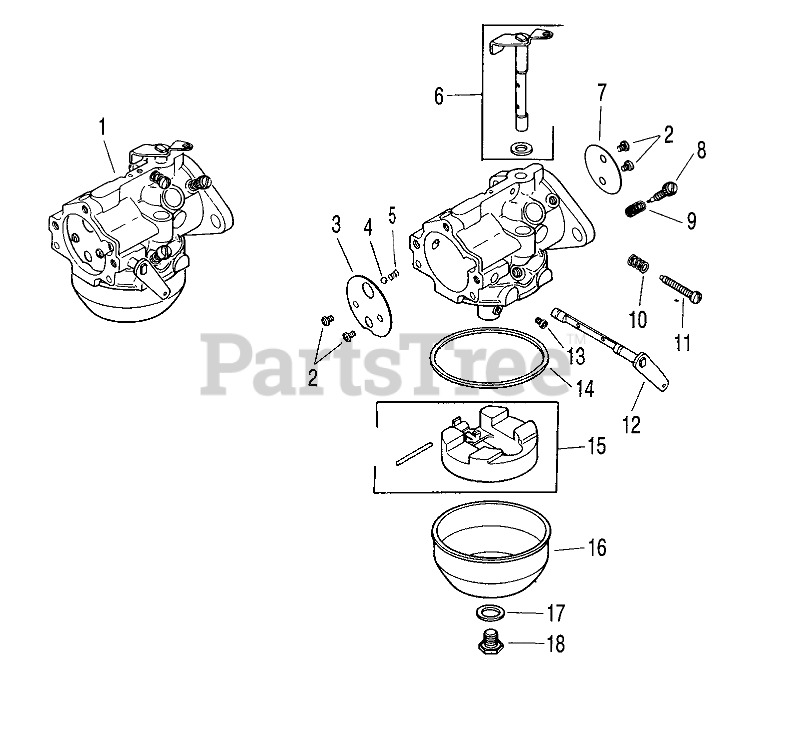

KOHLER CARBURETORS Parts Diagram

  • Title

1

Kohler 47 053 65

Carburetor Assembly (Includes 5 thru 8) 310,312

$

$

Not available

2

2508627

Screw

$

$

Not available

3

Kohler 47 146 08

Plate-Choke
(Superseded to 47 146 08-S)

$

$

Not available

4

2519401

Ball-Choke Friction

$

$

Not available

5

Toro 2508903

Spring-Choke Friction

$

$

Currently unavailable

6

Kohler 47 144 21

Shaft-W/Seal
(Superseded to 47 144 35)

$

$

Not available

7

2514602

Plate-Throttle

$

$

Not available

8

2536801

Needle-Idle Fuel Adj.

$

$

Not available

9

2508902

Spring

$

$

Not available

10

Toro 2508904

Spring-Idle Speed

$

$

Currently unavailable

11

Toro 2508626

Screw-Idle Speed Adj.

$

$

Currently unavailable

12

Kohler 47 090 38

Lever-Choke
(Superseded to 47 090 38-S)

$54.99

$

Usually ships in 2-5 days

0

13

Kohler 47 337 02

Main Jet
(Superseded to 47 337 02-S)

$12.99

$

Usually ships in 2-5 days

0

14

Toro 2504104

Gasket-Bowl

$

$

Currently unavailable

15

2575709

Kit-Float

$

$

Not available

16

2510401

Bowl-Fuel

$

$

Not available

17

2504103

Gasket-Retainer Screw

$

$

Not available

18

Toro 2510005

Screw-Bowl Retainer

$

$

Currently unavailable

Kohler 25 757 11

Carburetor Repair Kit (Includes)
(Superseded to 25 757 11-S)

Note: Not illustrated

$90.99

$

In Stock, Qty 6

0

Kohler 210223

Gasket-Carburetor
(Superseded to 210223-S)

Note: Included in Carburetor Repair Kit Num KH10696.

$8.99

$

Usually ships in 2-5 days

0

Kohler 271030

Gasket
(Superseded to 271030-S)

Note: Included in Carburetor Repair Kit Num KH10696.

$7.49

$

Usually ships in 2-5 days

0

Kohler 275341

Gasket-Air Horn
(Superseded to 275341-S)

Note: Included in Carburetor Repair Kit Num KH10696.

$6.49

$

Usually ships in 2-5 days

0

2504103

Gasket-Retainer Screw

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Not available

Toro 2504104

Gasket-Bowl

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 139 09

Plug Welch

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 139 10

Plug Welch

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 462 02

Inlet Valve

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Toro 25 462 04

Inlet Valve Assembly

Note: Included in Carburetor Repair Kit Num KH10696.

$

$

Currently unavailable

Kohler 41 041 11

Air Cleaner Gasket
(Superseded to 41 041 11-S)

Note: Included in Carburetor Repair Kit Num KH10696.

$3.49

$

In Stock, Qty 10

0

Kohler 45 041 07

Gasket-Air Cleaner
(Superseded to 45 041 07-S)

Note: Included in Carburetor Repair Kit Num KH10696.

$6.49

$

Usually ships in 2-5 days

0

Kohler 47 049 01

Gasket-Carburetor
(Superseded to 47 049 01-S)

Note: Included in Carburetor Repair Kit Num KH10696.

$22.99

$

Usually ships in 2-5 days

0

Kohler 25 757 05

Kit-Choke/Throttle Repair

Note: Not illustrated

$

$

Not available

Kohler 47 755 36

High Altitude Jet Kit (Includes Bushing KH10682, 47 158 07; Main Jet KH10709, 47 337 02)
(Superseded to 47 755 36-S)

Note: Not illustrated

$29.99

$

Usually ships in 2-5 days

0

Kohler 47 853 09

Carburetor W/Linkage Kit (Includes Bushing KH10682, 47 158 07; Main Jet KH10709, 47 337 02)
(Superseded to 47 853 20)

Note: Not illustrated

$

$

Not available

Kohler 47 853 20

Adjustable Jet W/Linkage Kit (Includes) Carburetor Linkage KH10701, 47 079 10 Bushing Linkage Natural KH10682, 47 158 07 Bushing Linkage Black KH10686, 25 158 09 Air Cleaner Gasket KH10697, 45 041 07 Carburetor Assembly KH10693, 47 053 86 Gasket KH10
(Superseded to 47 853 20-S)

Note: Not illustrated

$

$

Not available
